Festo CPX-CMAX-C1-1 User Manual

B. Basic controlling principles
B−30
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
Effect Cause Remedy
Stability problem, higher−frequency swinging around the setpoint position
12
3
 Incorrect mass load confi
gured or programmed
 Amplification gain set too
high
 Cushioning factor set too low
 Signal filter factor set too
high (smooth acceleration/
speed signal but continuous
swinging)
or very noisy acceleration
signal with high amplitude
 Minimum mass load not
reached
Too small tolerance
demanded
· Correct the configuration
· Correct the parameter
· Correct the parameter
· Reduce signal filter factor
· Increase signal filter factor
· Increase basic load
· Increase tolerance

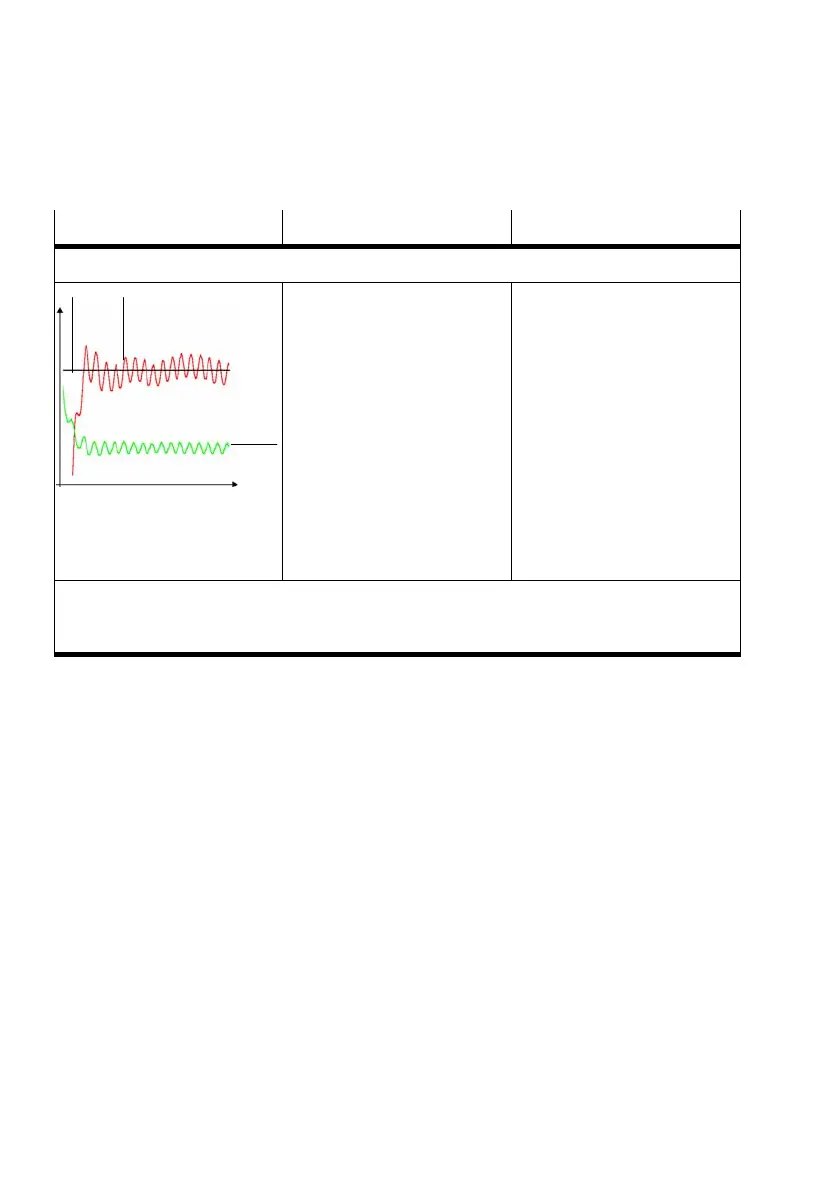

1 Setpoint position
2 Actual position
3 Speed
