17 Advanced functions
17.12 Behavior of the alarm outputs FLUXUS F60*
2017-10-16, UMFLUXUSF60xV5-0EN
172
• Select the menu item SHOW RELAIS STAT.
• Select on to activate the alarm state indication.
• Press ENTER.
If the alarm state indication is activated, the alarm output state is displayed after configur-
ing the alarm outputs:
The alarm state indication is structured as follows:
Rx =
, with X being the number of the alarm output and a pictogram
according to Tab. 17.5.
The configuration of the alarm outputs can be repeated by pressing key C. When the
configuration of the alarm outputs is finished, press ENTER. The main menu will be dis-
played.
If the alarm output indication is activated, the alarm state can be displayed during the
measurement. Press key to scroll through the upper line or key in the lower line
until the alarm state is displayed.
Special Funct.\SYSTEM settings\Dialogs/Menus\SHOW RELAIS STAT

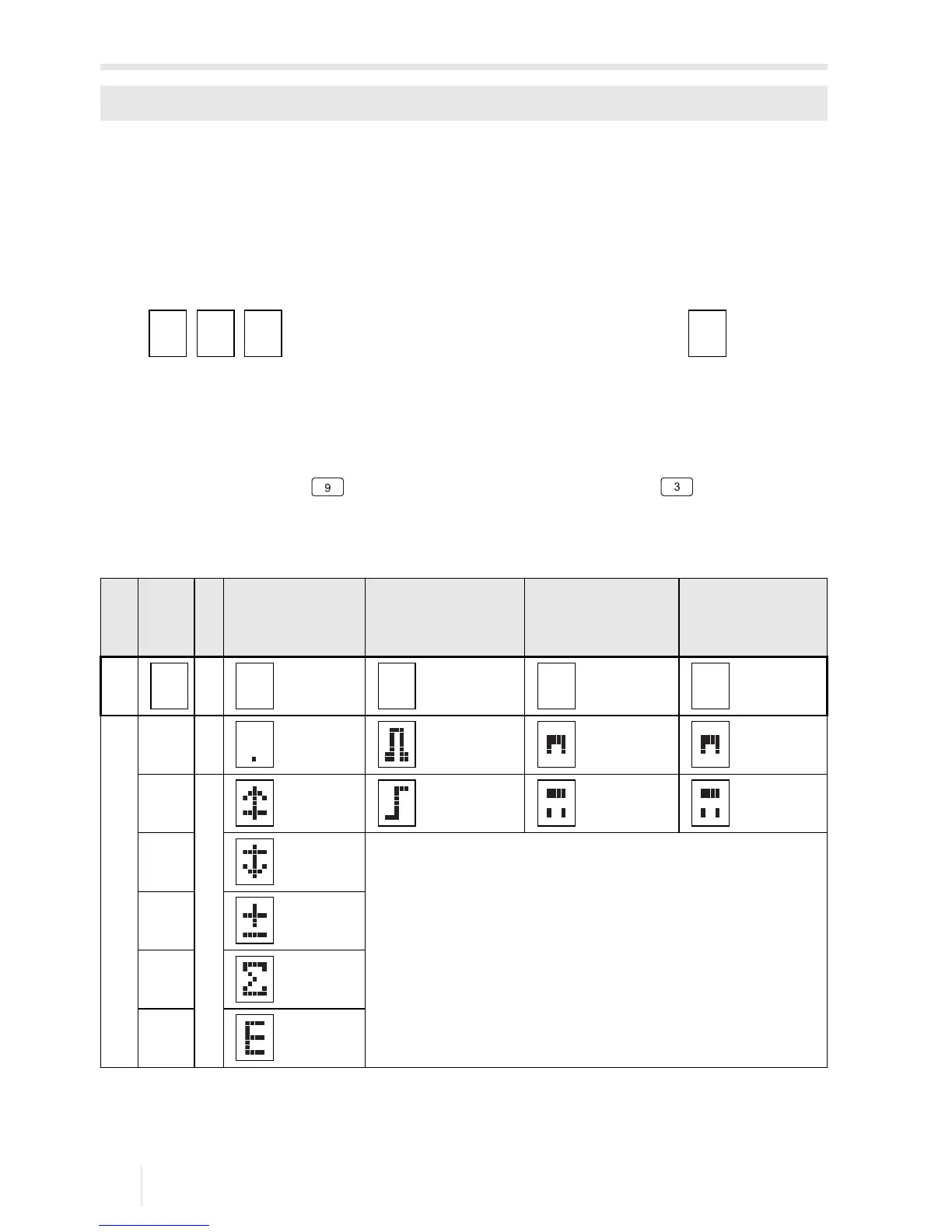

Tab. 17.5: Pictograms for the alarm state indication
no. func
(switching
condition)
typ
(holding
behavior)
mode
(switching
function)
current
state
R=
OFF NON-
HOLD
NO Cont. closed
1 MAX HOLD NC Cont. open
2 MIN
3+→- -
→+
QUANT.
ERROR
