2640A/2645A NetDAQ
Users Manual
3-6

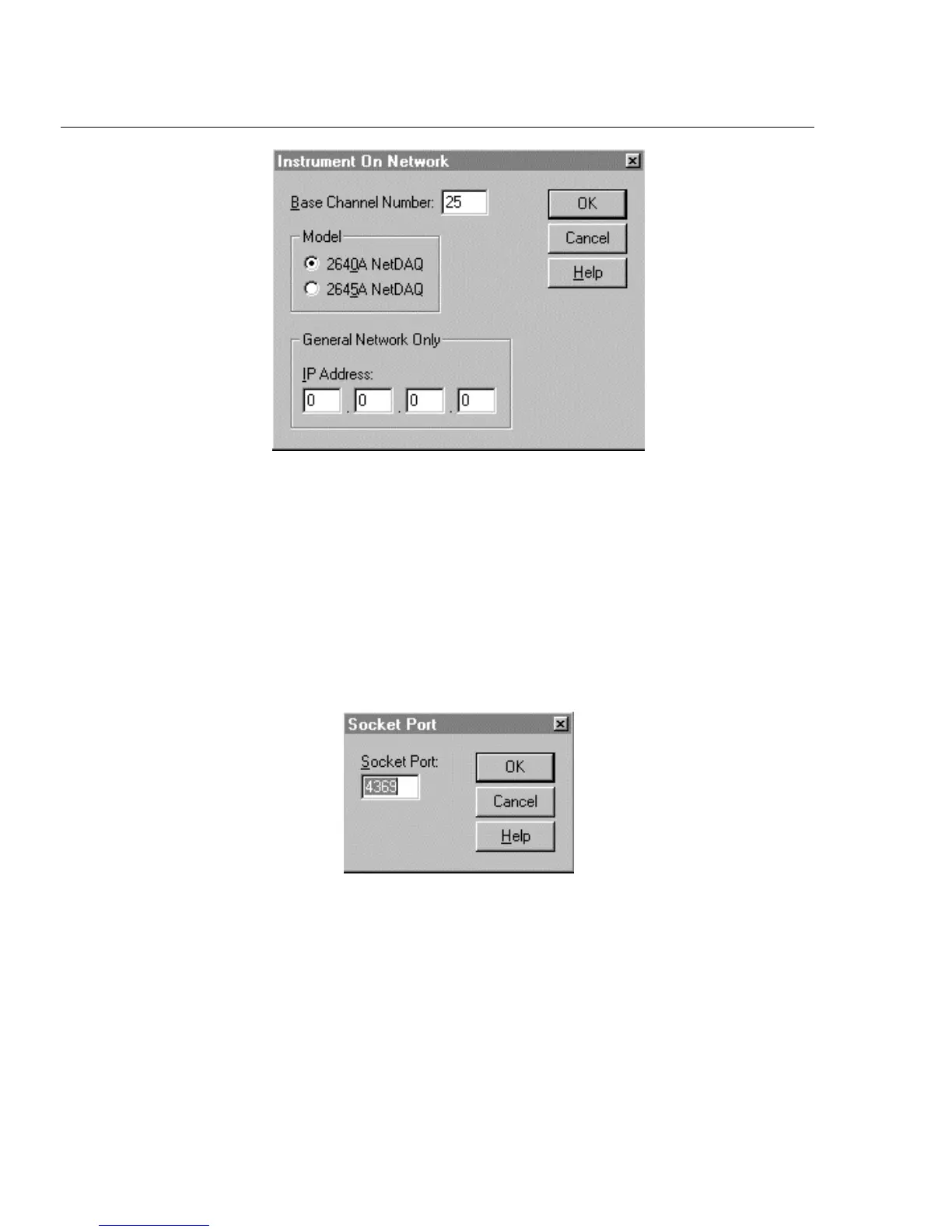

3. Click OK to return to the Communications Configuration File dialog box,
which now lists the new instrument. For a general network, the IP address
appears after the instrument model number.
4. If you are on a general network, you may need to change the socket port if a
conflict occurs with other network operations.
To change the socket port from its default value of 4369, click Socket Port to
open the dialog box shown below The socket port entry must be a number
between 1024 and 65535. Click OK when finished.
5. Click Close to return to the Main Window.
