Fluke NetDAQ 2640A - Examples for Reviewing and Setting the BCN

2640A/2645A NetDAQ
Users Manual
2-28

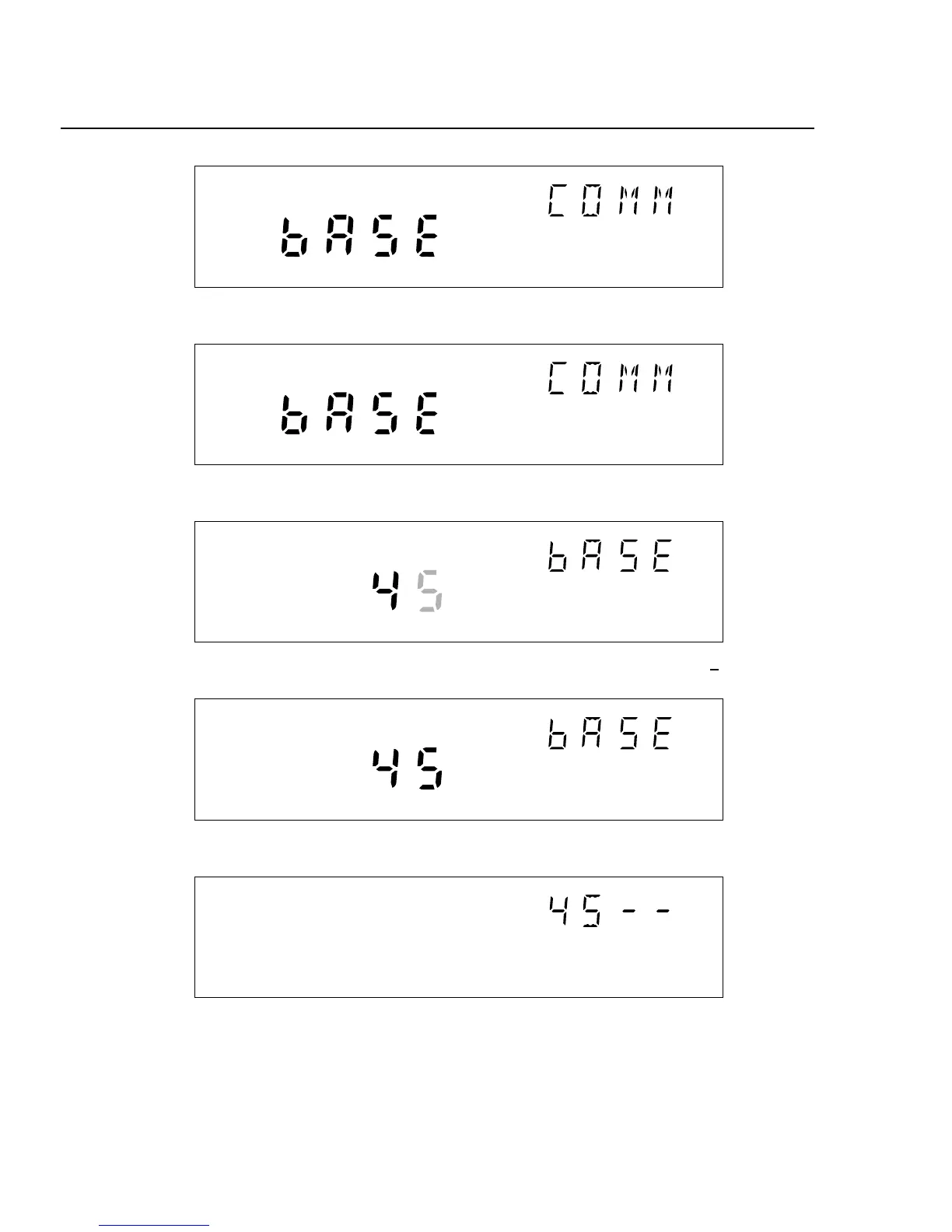

REVIEW
Communications display for reviewing the Base Channel Number (BCN)
SET
Communications display for setting the BCN
SET
Base Channel Number display for setting the BCN 10s digits (for example, 45)
REVIEW
Base Channel Number display for reviewing the BCN number (for example, 45)
CH
Front Panel display for an instrument with BCN 45
Figure 2-18. Examples for Reviewing and Setting the BCN
