2640A/2645A NetDAQ
Users Manual
2-32

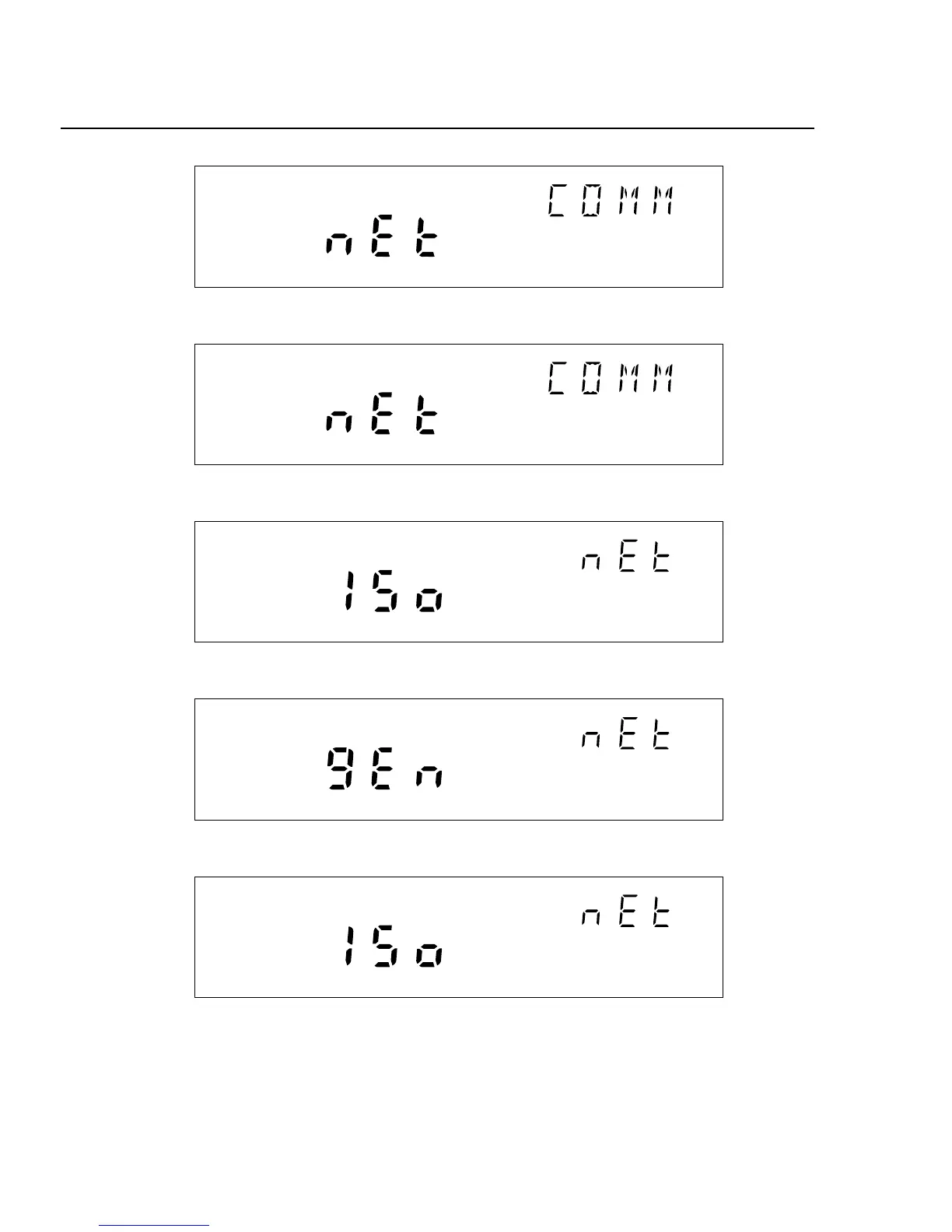

REVIEW
Communications display for reviewing the network type
SET
Communications display for setting the network type
SET
Network display for setting the network type to isolated
SET
Network display for setting the network type to general
REVIEW
Network display for reviewing the network type (isolated network)
Figure 2-22. Examples for Reviewing and Setting the Network Type
