Configuring NetDAQ Logger for Windows
Configuring Network Communications
3
3-5
The Communications Configuration Dialog Box 3-6.
Use the Communications Configuration dialog box (Figure 3-2) to record your
network configuration.
To open the Communications Configuration dialog box, select
Setup | Communications Config or click the Communications Configuration
toolbar button.
The dialog box lets you view the instruments currently on the network, modify
them, and add or delete instruments.

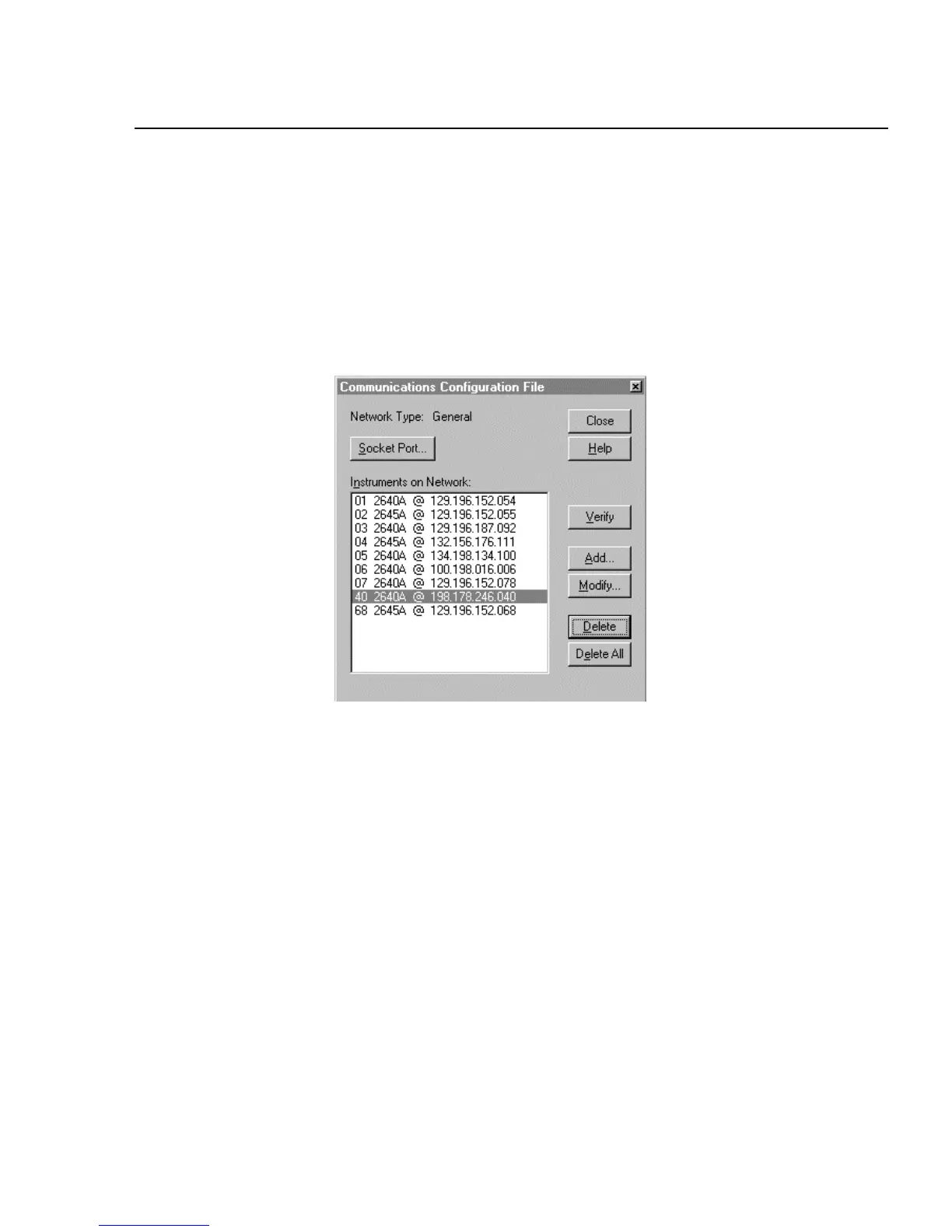

Figure 3-2. Communications Configuration Dialog Box
Adding an Instrument to the Network 3-7.
Complete the following procedure to add an instrument to the Instruments on
Network list:
1. Select Setup | Communications Config to open the Communications
Configuration File dialog box. Click Add to open the Instrument On Network
dialog box.
2. Enter the instrument BCN in the Base Channel Number box. Click the correct
model: 2640A or 2645A. For general network operation, enter the instrument
IP Address.
