Fluke NetDAQ 2640A - H-1. 10 Baset Ethernet Cables

2640A/2645A NetDAQ
Users Manual
H-2
8-Pin RJ-45 Pinout Connections
Receptacle
Function Pin #
Key
Pin #
TX+ 1 1
TX– 2 2
RX+ 3 3
44
55
RX– 6 6
77
88
8-Pin RJ-45 Pinout Connections
(Reversed TX/RX)
Receptacle
Function Pin #
Key
Pin #
TX+ 1 1
TX– 2 2
RX+ 3 3
44
55
RX– 6 6
77
88
1
8
1
8
Key
Receptacle

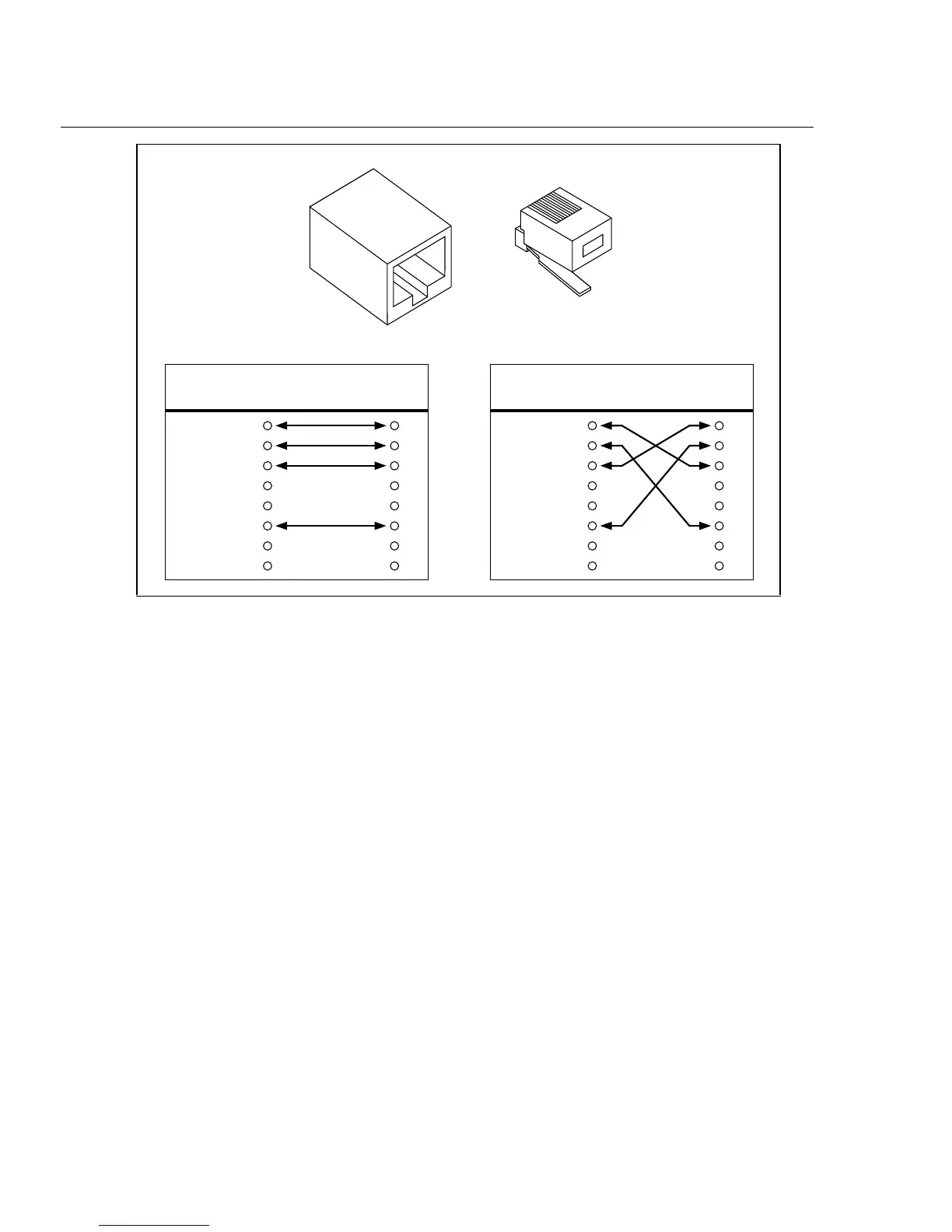

Figure H-1. 10BaseT Ethernet Cables
