Fluke NetDAQ 2640A - Examples During Monitor

Preparing for Operation
Instrument Preparation
2
2-23
MON
mV
CH
DC

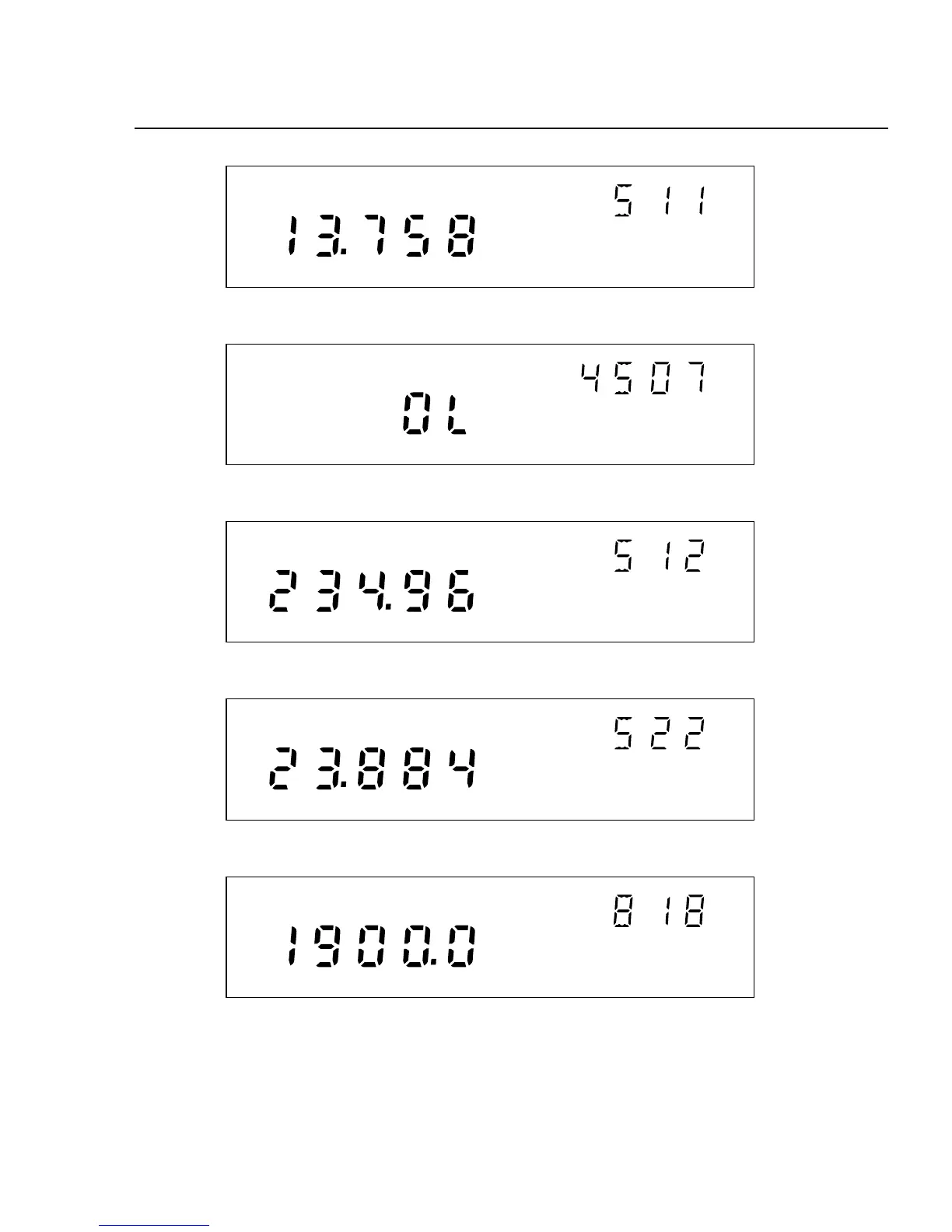

Monitor display for 13.758 mV DC, GCN (Global Channel Number) 511
MON
CH
VAC
Monitor display for Scale Overload V AC (reading is greater than the selected range), GCN 4507
MON
°F
CH
Monitor display for 234.96°F (Thermocouple), GCN 512 (otc displays for open thermocouple)
MON
FUNC
CH
Monitor display for 23.884 FUNC (Computed Channel), GCN 522
MON
Mx+B
CH
Monitor display for analog channel 18 with Mx+B scaling, GCN 818
Figure 2-13. Examples During Monitor
