view (V) is selected when the function Live Move function is started, only the vertical
condition will be displayed (although both planes are being monitored simultaneously).
Likewise, if the horizontal view (H) is selected, then only the horizontal condition will be
displayed (but both planes monitored simultaneously).

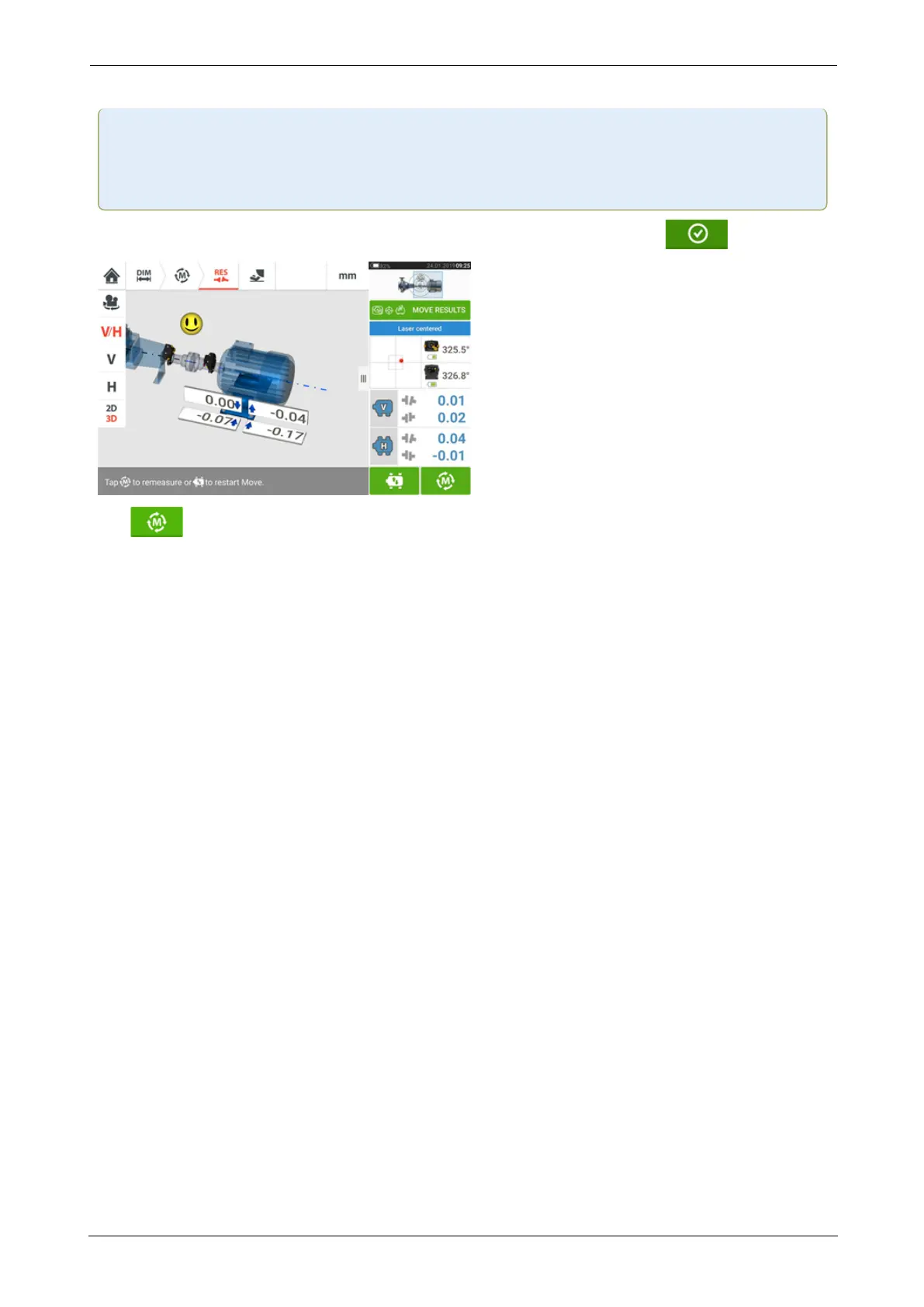

After moving machines to within tolerance, tighten the foot bolts then tap .
Tap to remeasure and verify the Live Move results, and confirm new alignment con-
dition.
ROTALIGNtouch EX 77
