2-1-2. Input / Output Card Installation and Removal
MFR input/output cards should be installed by opening the MFR-5000 front panel. Remove

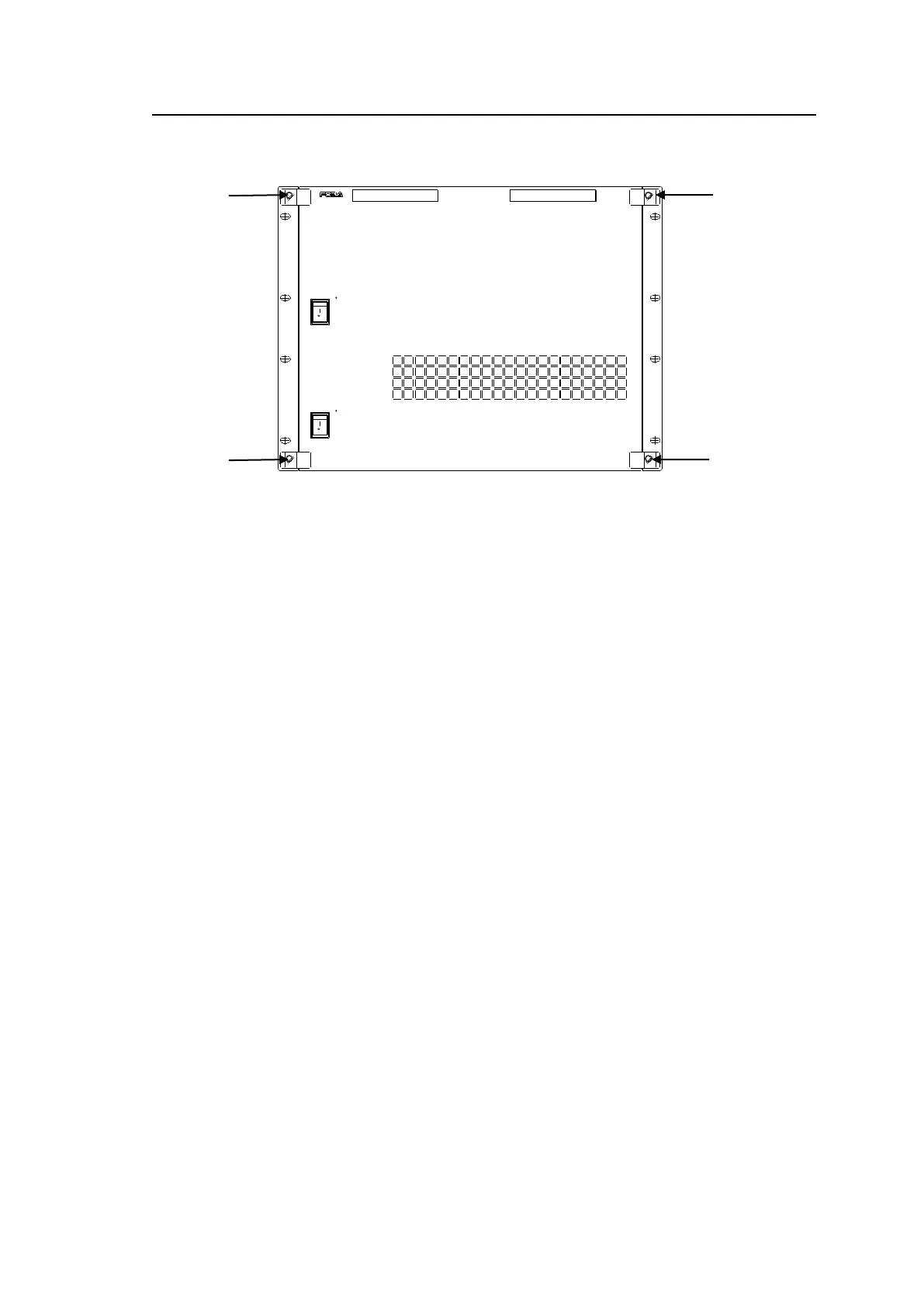

the four screws on the front panel as shown below to open the front panel.
Removing an MFR Input/Output card
To remove an input or output card with the MFR-5000 powered on, turn the power of the
slot from which to remove the card OFF. Be sure to turn the power of the slot off before
removing its card.
See [SHUTDOWN] in section 4-5. “SETTINGS.
Installing an MFR Input/Output card
To install an MFR option card with the MFR-5000 powered on, turn the power of the slot
on, using the front menu, after installing the card.
See [SHUTDOWN] in section 4-5. SETTINGS.
MFR cards must be installed into their respective designated slots from the correct side.
See section 2-1. MFR-5000 Front Panel.
POWE R 2
M FR -50 00
POWE R 1
ON
OFF
ON
OFF
ACTI VE
CPU 1
ALAR M ALA RM ACTIVE
CPU 2
MESSA GE/ME NUMESSA GE/ME NU
ROUTING SWITCHER
