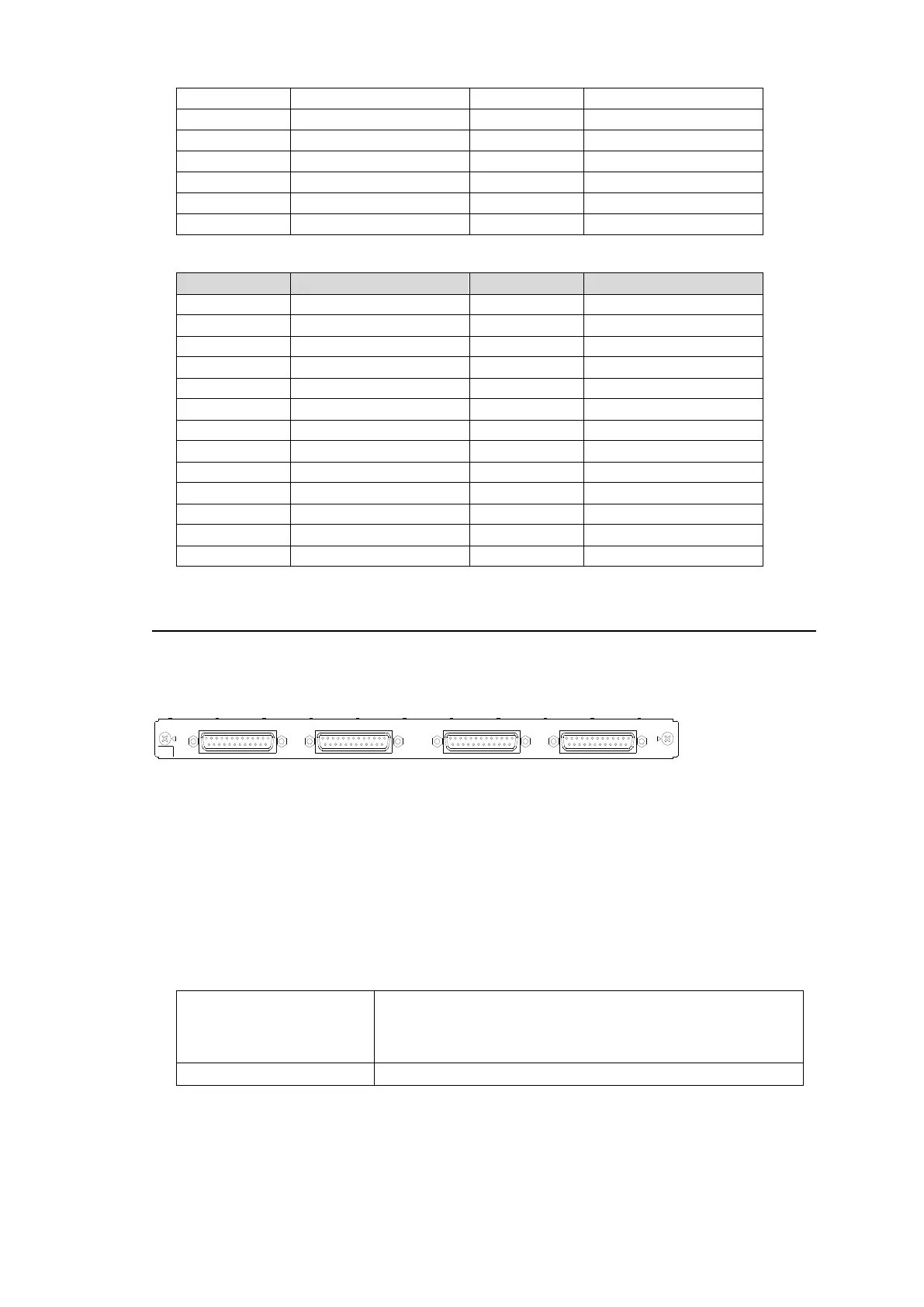

2-4-2. MFR-16AAOEX (Analog Output)
MFR-16AAOEX is an analog audio output card with D/A converter.
Up to 4 cards can be installed into Slot No. 09 to 16.
► See section 2-1-1. "Matrix Size Chart."
A
N
A
L
O
G
A
U
D
I
O
1~8
9~16 17~24
25~32
MUTE
Mute can be enabled or disabled for each stereo pair (2 channels).
Mute should be set in the [Web-based Control: Audio Settings page].
Digital-to-Analog Conversion
32 channels (16 stereo pairs) can be converted and output as analog audio. Audio level and
gain can be set for each stereo pair.
Audio level and gain should be set in the [Web-based Control: Audio Settings page].
Sets analog output level for each stereo pair.
Audio output level is determined by the digital input level and
this setting as shown in the table on next page. Maximum
output level is +24 dBm.
Adjusts analog output level for each channel.
