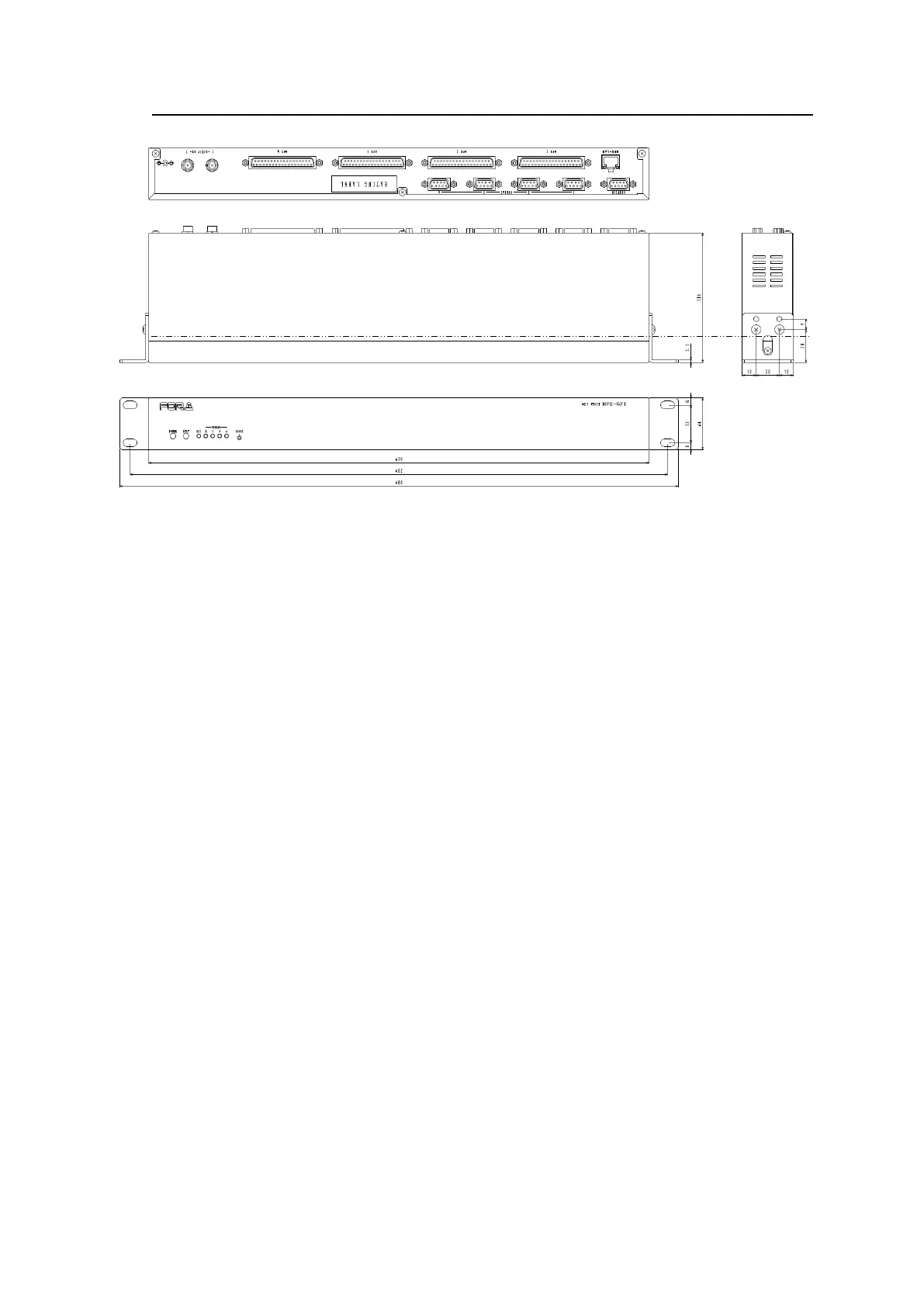

5-7. Setup Menu (MFR-39RUA)
The SETUP button allows you to enter Setup Menu mode, in which menu settings can be
performed as shown in Sec 5-4-4. "Setting Mode Menu (MFR-39RUA)."
5-8. Setup Menu (MFR-18RU/18RUA)
The SETUP button allows you to enter Setup Menu mode, in which RU and MU PC-LAN
network settings are displayed, the MU-PC LAN port can be rebooted, and RU network settings
can be changed. The left three buttons are used to select information to be displayed or the
PC-LAN reboot. To exit Setup Menu mode, press the SETUP button again.
Selection buttons
(See the figures below)
LAN Port
Display / Execution
Button A
Remote Control Unit (RU)
IP address display and change
Subnet mask display
Button B
PC-LAN on Main Unit (MU)
IP address display
Subnet mask display
Default gateway display
Button C
PC-LAN on Main Unit (MU)
Reboot

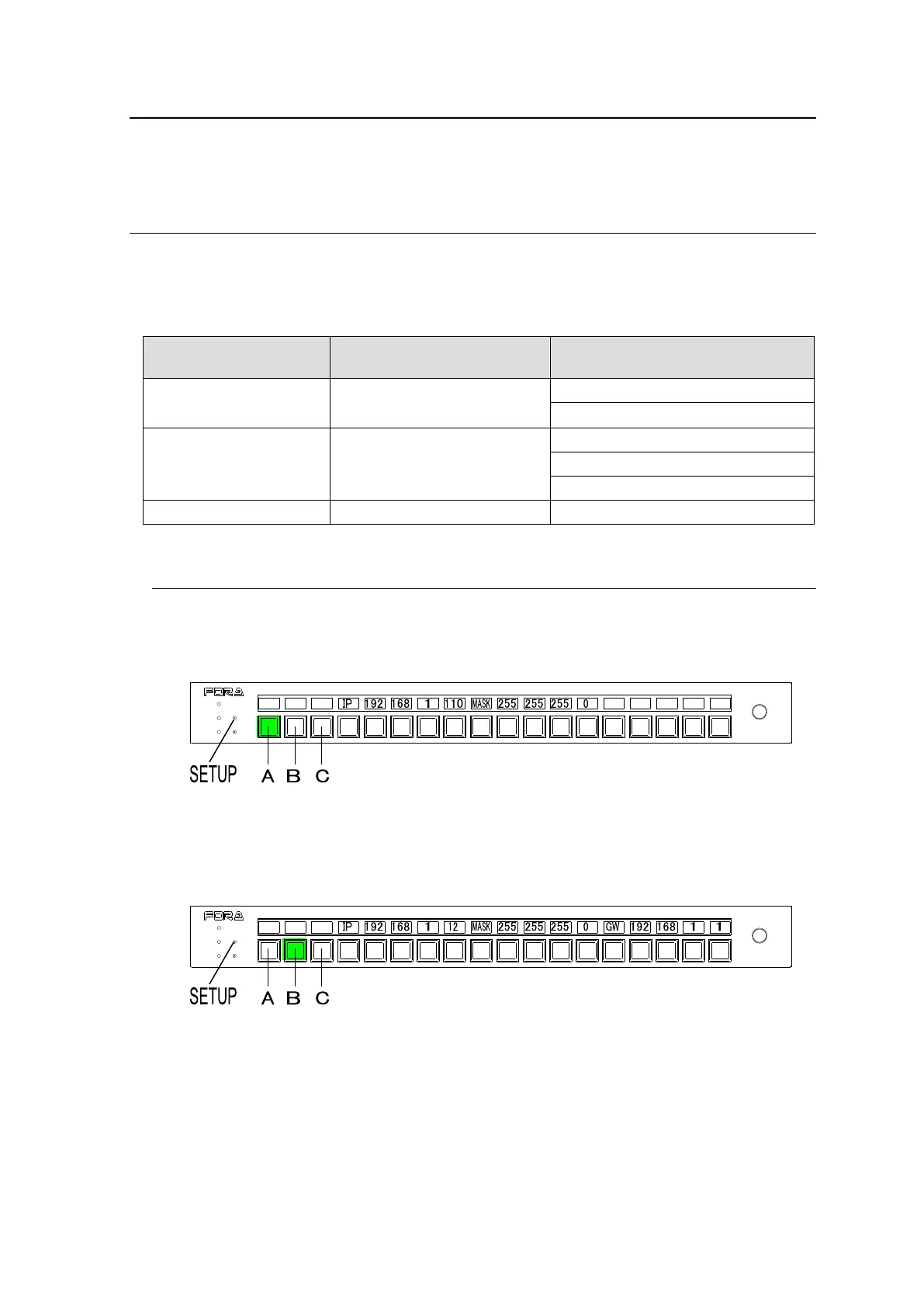

5-8-1. Displaying Network Settings
 To Display RU IP Address and Subnet Mask
Press SETUP to enter Setup Menu mode. The RU IP address and subnet mask are
displayed as shown below. (If Button A is off (unlit), press Button A.)
 To Display IP address, Subnet Mask and Default Gateway of MU PC-LAN
Press Button B in Setup Menu mode. The network settings are displayed as shown below, in
order, as "IP address, Subnet Mask and Default Gateway."
POWER
BUSY SETUP
LOCK RESET
MFR-18RU
REMOTE CONTROL UNIT
POWER
BUSY SETUP
LOCK RESET
MFR-18RU
REMOTE CONTROL UNIT
