29
Analog Output Level (determined by the input level and level setting)
Digital audio input level
Analog Output Level Setting
-10dBm
0dBm
4dBm
8dBm
-24dBFS
-14dBm
-4dBm
0dBm
+4dBm
-20dBFS
-10dBm
0dBm
+4dBm
+8dBm
-18dBFS
-8dBm
+2dBm
+6dBm
+10dBm
0dBFS
+10dBm
+20dBm
+24dBm
CLIP
Analog Audio Connection
For balanced audio signals, connect the hot, cold and shield conductor to "+" ," - " and
"COM" pins respectively.
For unbalanced audio signals, connect the conductor that carries audio to a "+" pin and
ground to "COM."

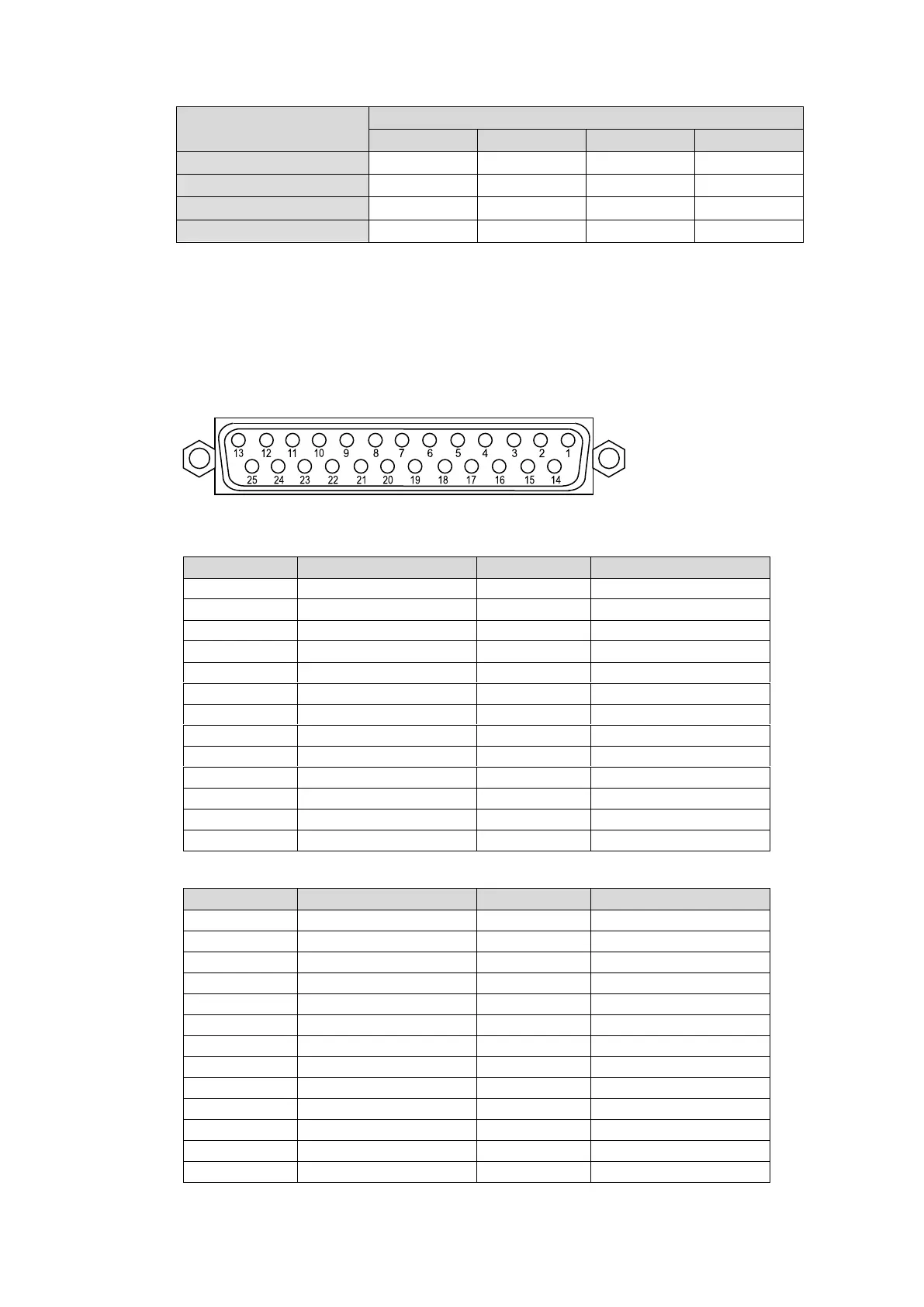

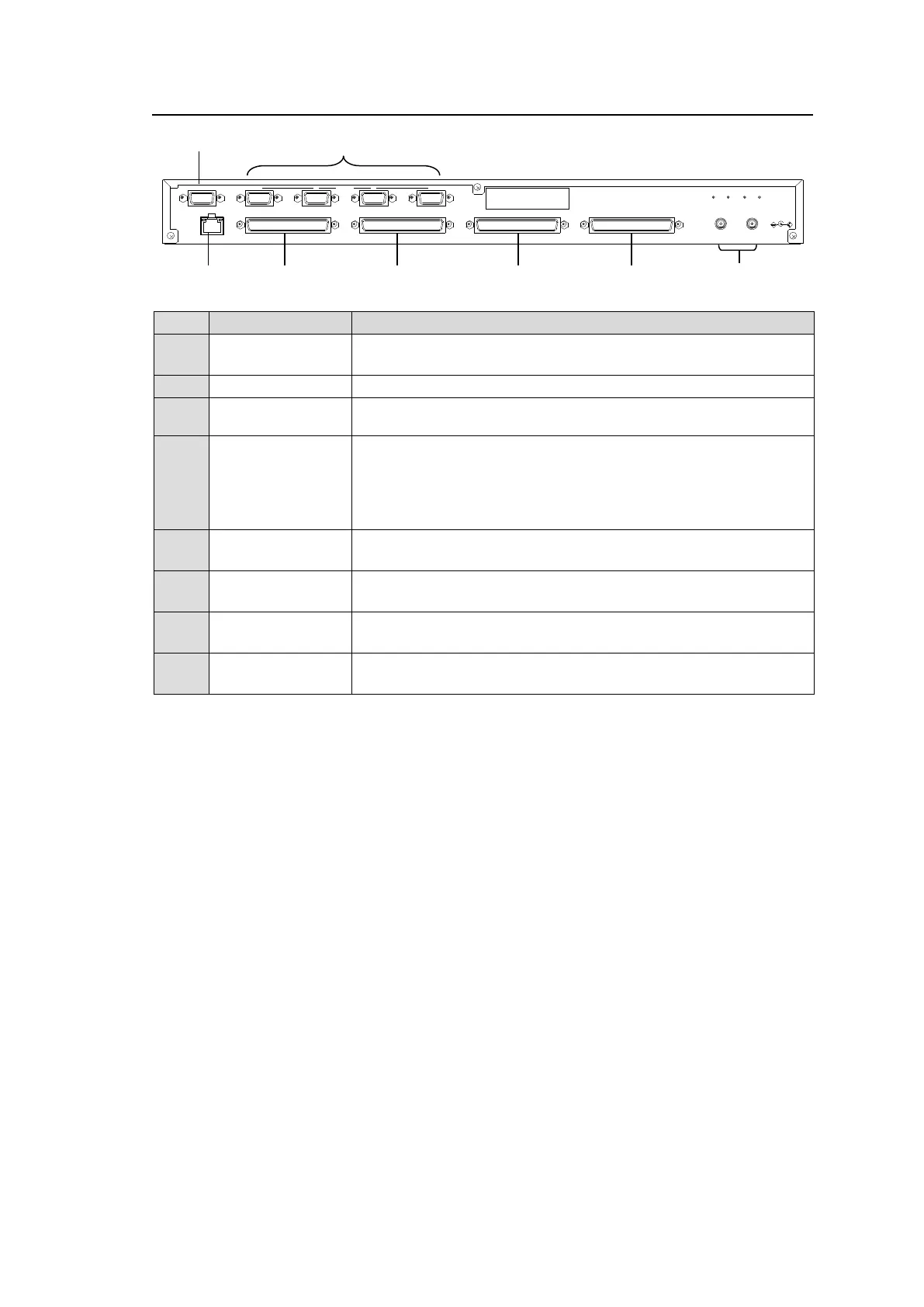

Analog Audio Connector (25-pin D-sub, female, inch screws) x 2
Connector Pin Assignments
Channels 1 to 8
Pin No.
Setting
Pin No.
Setting
13
CH1 +
25
CH1 COM
12
CH1 -
24
CH2 +
11
CH2 COM
23
CH2 -
10
CH3 +
22
CH3 COM
9
CH3 -
21
CH4 +
8
CH4 COM
20
CH4 -
7
CH5 +
19
CH5 COM
6
CH5 -
18
CH6 +
5
CH6 COM
17
CH6 -
4
CH7 +
16
CH7 COM
3
CH7 -
15
CH8 +
2
CH8 COM
14
CH8 -
1
SG
-
-
Channels 9 to 16
Pin No.
Setting
Pin No.
Setting
13
CH9 +
25
CH9 COM
12
CH9 -
24
CH10 +
11
CH10 COM
23
CH10 -
10
CH11 +
22
CH11 COM
9
CH11 -
21
CH12 +
8
CH12 COM
20
CH12 -
7
CH13 +
19
CH13 COM
6
CH13 -
18
CH14 +
5
CH14 COM
17
CH14 -
4
CH15 +
16
CH15 COM
3
CH15 -
15
CH16 +
2
CH16 COM
14
CH16 -
1
SG
-
-
