5-3-2. LOCK OTHER / LOCK ALL
The Lock Other and Lock All functions disable crosspoint changes for current destination
channels to all other units or all units including the unit that enabled the Lock function. Lock
functions can be disabled only from the unit that enabled the function.
In multi-panel operation, lock functions can be disabled from any remote control panel in the
operation system. Lock Other does not disable operation of remote control panels in the
system.
Enabling LOCK OTHER/LOCK ALL
<Setting on the Front Panel>
(1) Assign LOCK OTHER or LOCK ALL to a button on the front panel.
► See Sec. 4-4-4. "Button Assign Menu.".
(2) Press the assigned button to enable the Lock function.
<Setting in the Web-based Control>
Open the [Web-based Control: Lock Destination] page, and assign a lock button.
Disabling LOCK OTHER/LOCK ALL
Press the lock button again.
To unlock buttons from other units, press and hold the LOCK button for the time
specified in the [Web-based Control: RU Settings page].

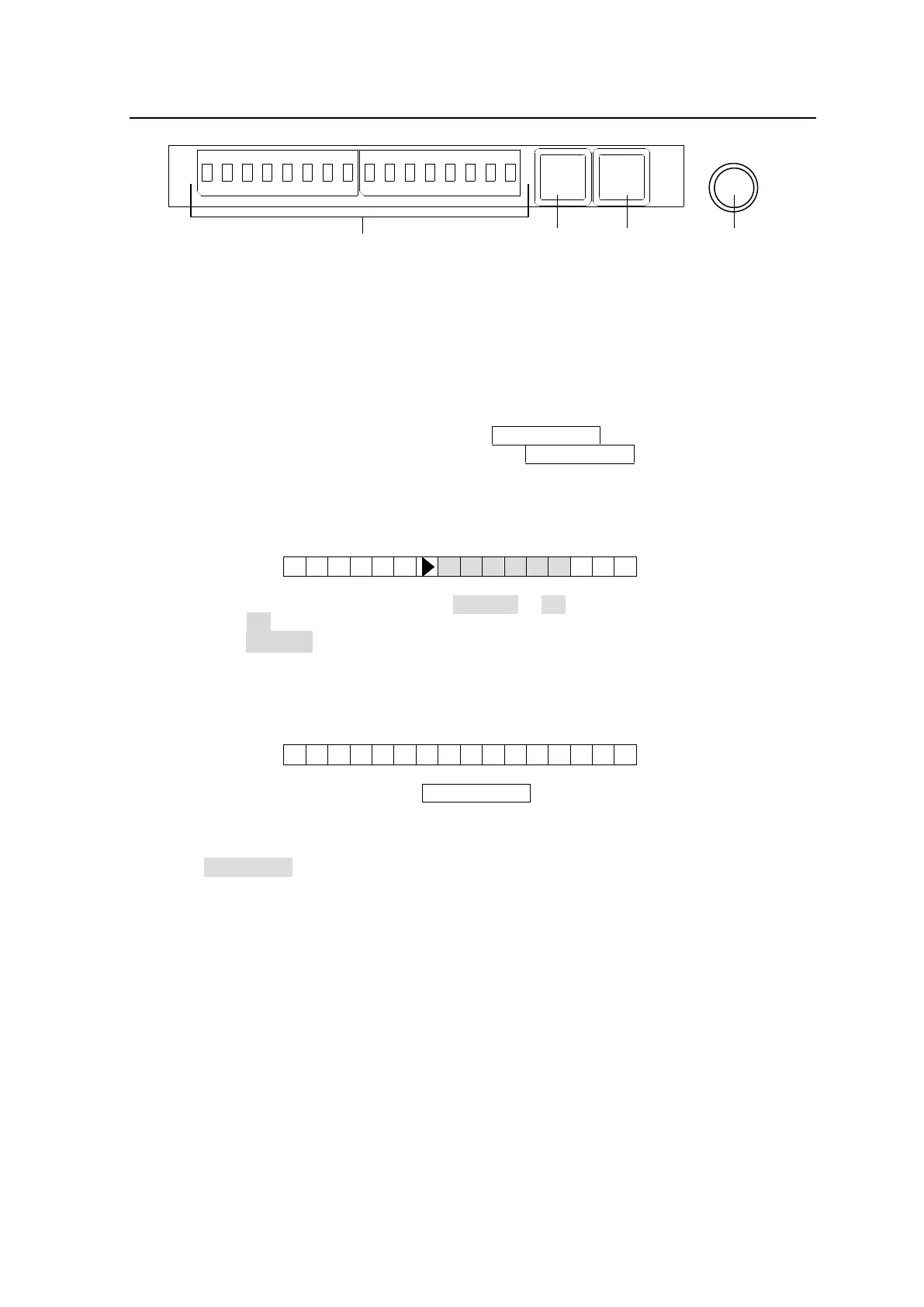

On the remote control panel:
LOCK LED illuminates
Orange, if a LOCK OTHER command is sent by itself.
Red, if a LOCK OTHER command is sent by another unit.
Red, if a LOCK ALL command is sent by any unit.
The LOCK button is highlighted (background illuminates)
To check the LOCK status, press the current destination button.
The MENU display shows the LOCK status and the ID number of the unit that has issued the
LOCK command.
The LOCK button and LOCK LED blink if any inhibited operation such as selecting a source
channel is performed when Lock Other (or Lock All) is enabled and the LOCK OTHER (or
LOCK ALL) button is assigned.
DST: 8 [DST8 ]
LK-ID: 103[OTHER PANELS]
DST: 8 [DST8 ]
LK-ID: 103[ALL PANELS ]
DST: 8 [DST8 ]
LK-OFF [NOT LOCKED ]
If LOCK OTHER or LOCK ALL is ON:
