FOR-A MFR-3000 User Manual

33

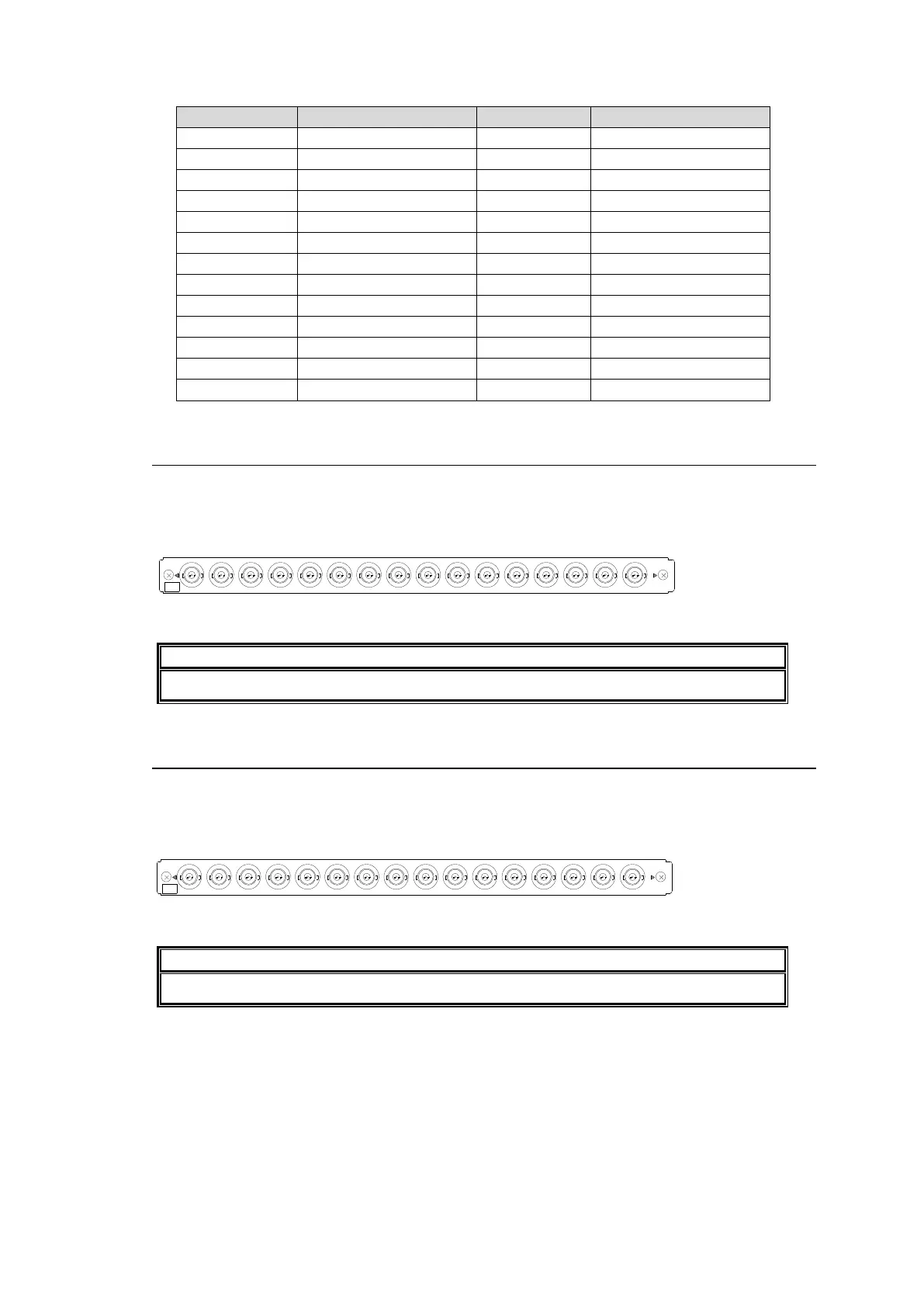

Pin Assignments
Pin No.
Setting
Pin No.
Setting
13
CH1 OUT+
25
CH1 OUT COM
12
CH1 OUT-
24
CH2 OUT+
11
CH2 OUT COM
23
CH2 OUT-
10
CH3 OUT+
22
CH3 OUT COM
9
CH3 OUT-
21
CH4 OUT+
8
CH4 OUT COM
20
CH4 OUT-
7
CH5 OUT+
19
CH5 OUT COM
6
CH5 OUT-
18
CH6 OUT+
5
CH6 OUT COM
17
CH6 OUT-
4
CH7 OUT+
16
CH7 OUT COM
3
CH7 OUT-
15
CH8 OUT+
2
CH8 OUT COM
14
CH8 OUT-
1
SG
-
-
2-4-5. MFR-16AESI (AES Input)
MFR-16AESI is a digital audio input card.
Up to 8 cards can be installed into Slot No. 01 to 08.
► See section 2-1-1. "Matrix Size Chart."
BNC x 16 inputs (16 stereo pairs, 32 channels), unbalanced, 75 Ohm
IMPORTANT
To output MFR-16AESI input audio, MFR-16AESO/16AAOEX is required.
2-4-6. MFR-16AESO (AES Output)
MFR-16AESO is a digital audio output card.
Up to 8 cards can be installed into Slot No. 09 to 16.
► See section 2-1-1. "Matrix Size Chart."
BNC x 16 outputs (16 stereo pairs, 32 channels), unbalanced, 75 Ohm
IMPORTANT
MFR-16AESO cards can output audio signals input to MFR-16AESI/16AAIEX.
19/20
21/22 29/30 27/28 25/26 23/24
17/18 15/16 13/14 11/12
9/10
7/8 5/6 3/4
31/32
1/2
ADI
(No.)
19/20
21/22 29/30 27/28 25/26 23/24
17/18 15/16 13/14 11/12
9/10
7/8 5/6 3/4
31/32
1/2
ADI
(No.)
