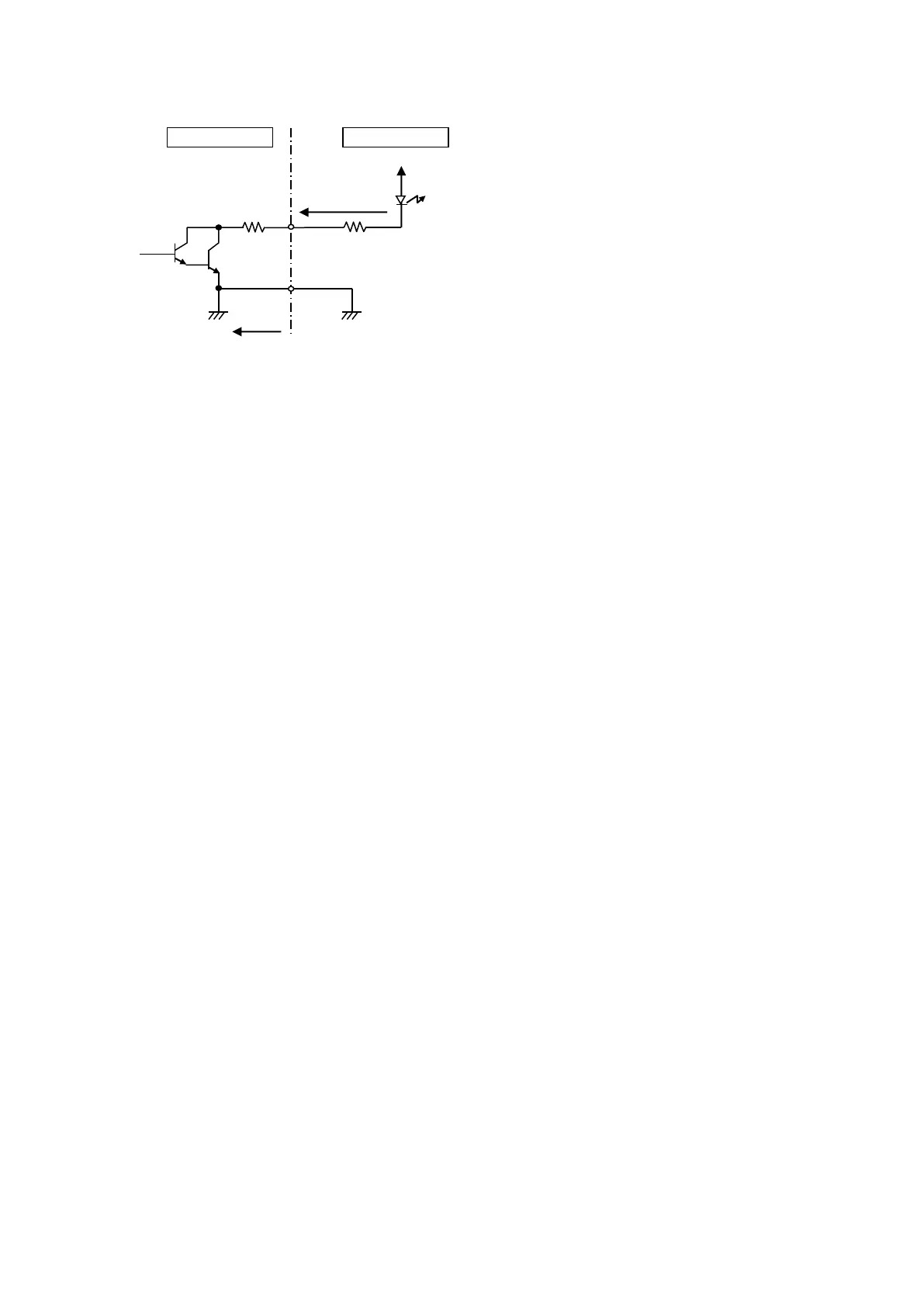

 Setup Settings
1) Connect and assign video signals as shown in the figure above.
2) Device Setup on the MFR-3000:
Connect to the MFR-3000 from the Web-based Control PC and open the [Tally System
Settings - Device Select] page. Select HVS-390HS in the [Switcher] field and click
[Send].
3) Network settings on the MFR-3000:
Open the [Router System Settings - PortSettings] page and set the TCP/IP menu as
shown below.
IP Address
Port
Protocol
Function
Local Port(MFR)
(Switcher's
IP address)
See
below
UDP
Editor(HVS)
Select a UDP port number.
Do not use the UDP port number
(Default: 23) already used in the
Server (MFR).
4) Assign AUX buses and input channels on the switcher
to logical destination and sources channels on the
MFR-3000.
<AUX bus assignments>
a) Open the Destination Assignment page.
b) Select HVS(AUX) under Select Table.
c) Set Level to 1.
d) Assign AUX1 to DST 129.
<Input channel assignments>
a) Open the Source Assignment page.
b) Select HVS(AUX) under Select Table.
c) Set Level to 1.
d) Assign input channels to MFR sources as shown below.
LogicalNo./Name
Switcher Channel
129
SRC 129
IN1
|
|
|
136
SRC 136
IN8
137
SRC 137
STL3
5) Settings on the switcher:
Open the [SETUP - EXT I/F - EDITOR] menu on the HVS-390HS.
Change [TYPE] to [DVS] and [ENABLE] to [ON].
After above setup settings are complete:
 If SRC 129 is selected for DST 129, AUX1 outputs IN1 video on the switcher.
 If SRC 137 is selected for DST 129, AUX1 outputs Still 3 video on the switcher.
 If IN4 is selected for AUX1 on the switcher, SRC 132 is selected for DST 129 on the
MFR-3000.
If input channels that are not assigned in the Source Assignment page are selected on
the switcher, they are replaced with the Alternative Source set in the Source Assignment
page in the MFR system.
Switcher
Port
HVS-390HS
8740
HVS-100/110
8740
HVS-2000
53381
