FOR-A MFR-3000 User Manual

97

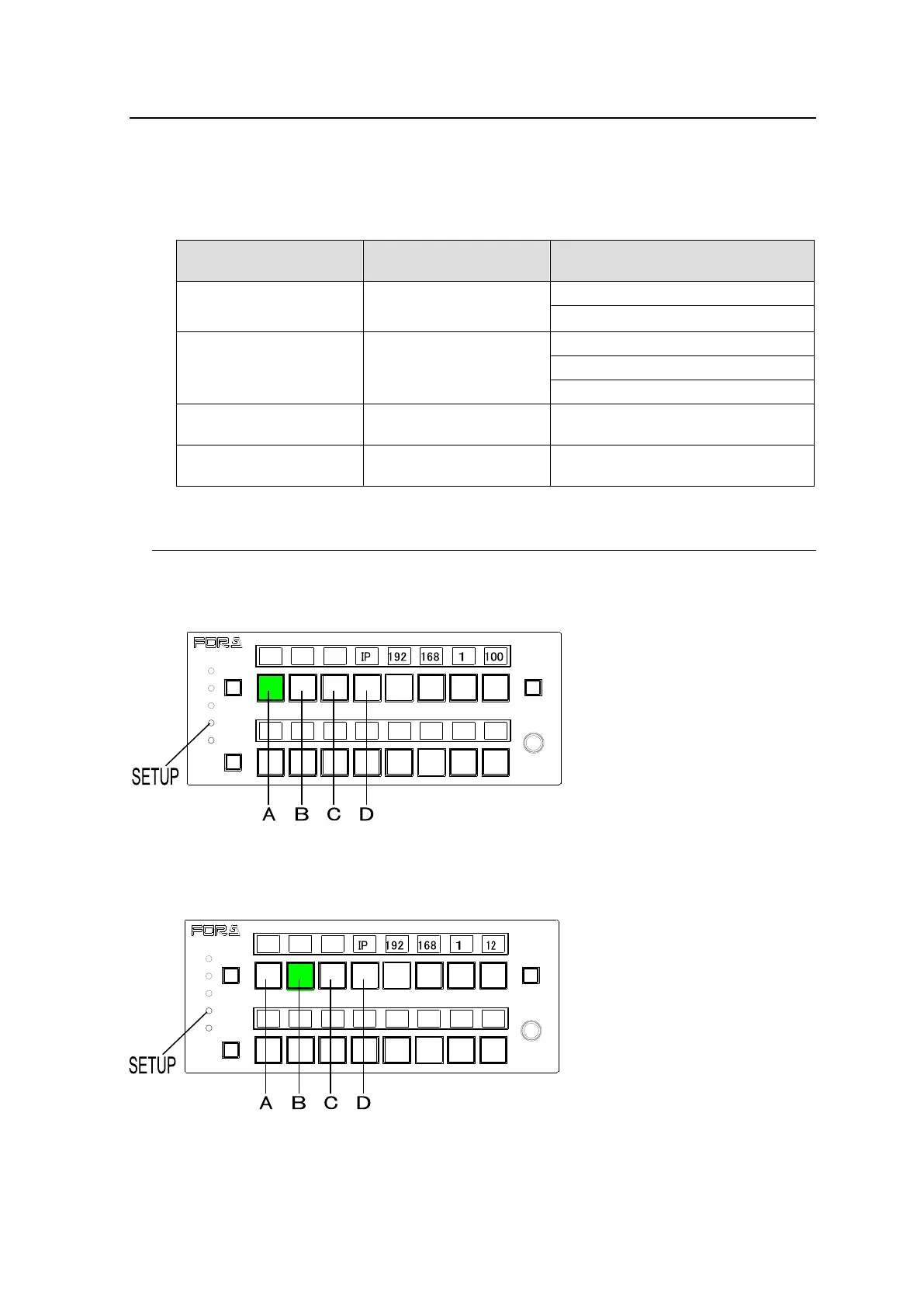

5-9. Setup Menu (MFR-16RUTA)
The SETUP button allows you to enter Setup Menu mode, in which RU and MU PC-LAN
network settings are displayed, the MU PC-LAN port can be rebooted, and RU network settings
can be changed. The left three buttons are used to select information to be displayed or the
PC-LAN reboot. The fourth button from the left is used to switch network information display. To
exit Setup Menu mode, press the SETUP button again.
Selection buttons
(See the figures below)
LAN Port
Display / Execution
Button A
Remote Control Unit
(RU)
IP address display and change
Subnet mask display
Button B
PC-LAN on Main Unit
(MU)
IP address display
Subnet mask display
Default gateway display
Button C
PC-LAN on Main Unit
(MU)
Reboot
Button D
If Button A or B is
selected
Display item change
5-9-1. Displaying Network Settings
 To Display RU IP Address and Subnet Mask
Press SETUP to enter Setup Menu mode. (If Button A is off (unlit), press Button A.)
Pressing Button D displays the RU IP address and repressing it displays the subnet mask.
 To Display IP address, Subnet Mask and Default Gateway of MU PC-LAN
Press Button B in Setup Menu mode. The IP address, subnet mask and default gateway are
successively displayed by pressing Button D.
MFR-16RUTA
REMOTE CONTROL UNIT
LOCK
POWER
BUSY
PAGE A
LOCK
SETUP
RESET
PAGE B
MFR-16RUTA
REMOTE CONTROL UNIT
LOCK
POWER
BUSY
PAGE A
LOCK
SETUP
RESET
PAGE B
