Fortinet FortiGate FortiGate-3000 Administration Guide

200 01-28006-0010-20041105 Fortinet Inc.
Policy Firewall

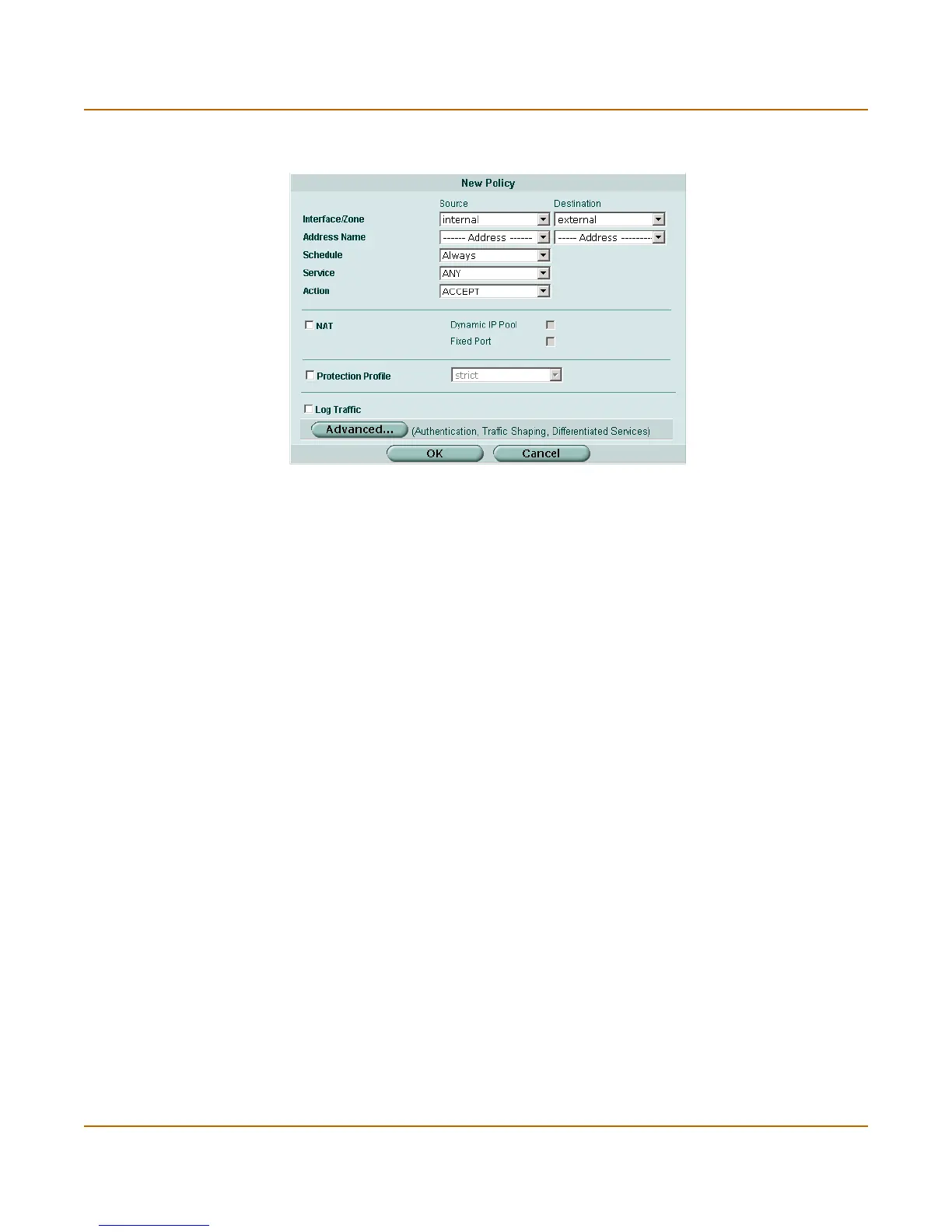

Figure 81: Standard policy options
Policy has the following standard options:
Interface / Zone Source
Select the source interface name to which the policy will apply.
Destination
Select the destination interface name to which the policy will apply.
Interfaces and zones are listed and configured in System > Network.
See “System network” on page 53.
Address Name Source
Select a source address or address group to which the policy will
apply.
Destination
Select a destination address or address group to which the policy will
apply.
Before you can add this address to a policy, you must add it to the
destination interface, VLAN subinterface, or zone. For information
about adding an address, see “Addresses” on page x.
For NAT/Route mode policies where the address on the destination
network is hidden from the source network using NAT, the destination
can also be a virtual IP that maps the destination address of the
packet to a hidden destination address. See “Virtual IP” on page 222.
Before you can use an address in a policy, you must add it to the
source interface. See “Address” on page 206.
Schedule Select a schedule that controls when the policy is available to be
matched with connections. See “Schedule” on page 218.
Service Select a service or protocol to which the policy will apply.
You can select from a wide range of predefined services or add
custom services and service groups. See “Service” on page 210.
