Fortinet FortiGate FortiGate-3000 Administration Guide

Firewall Service
FortiGate-3000 Administration Guide 01-28006-0010-20041105 215

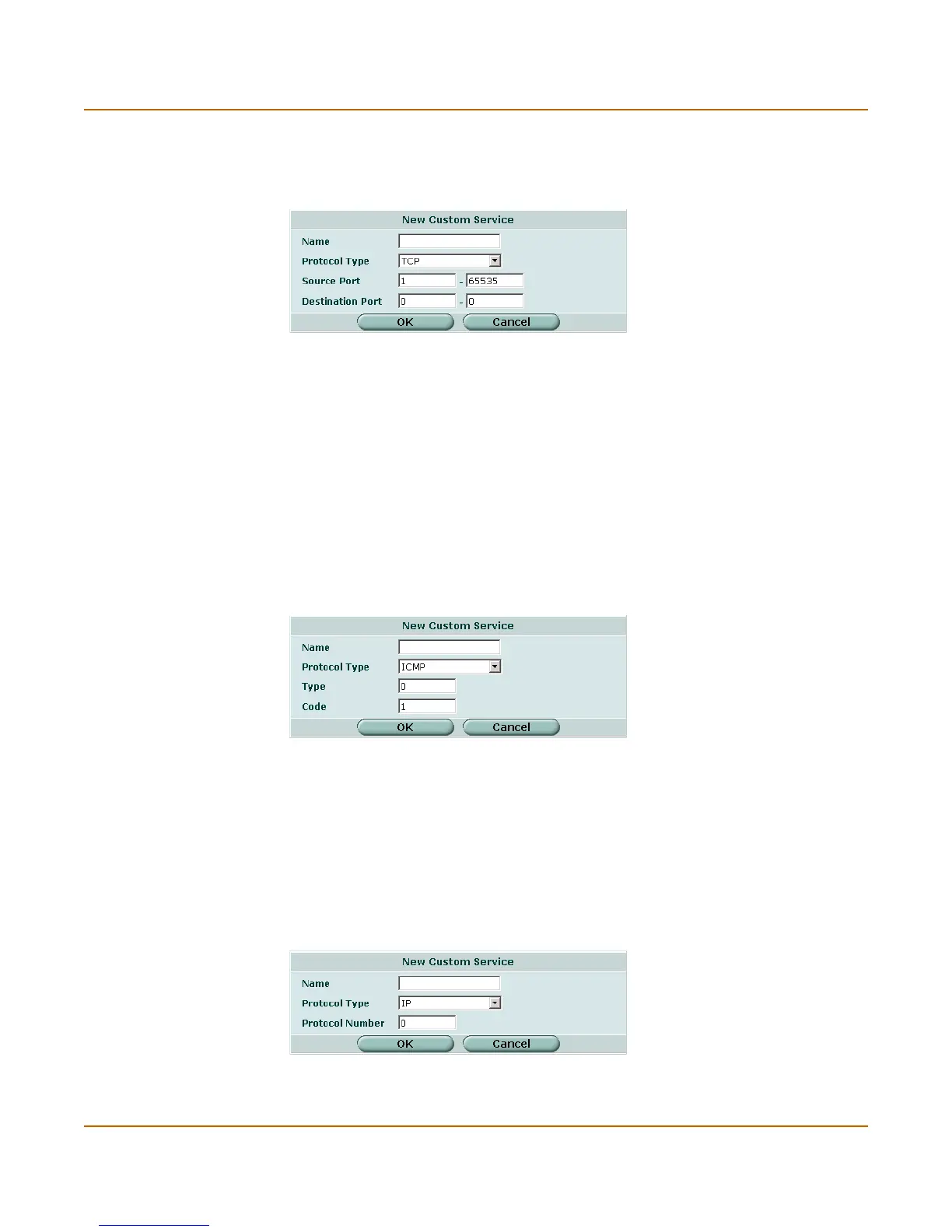

TCP and UDP custom service options
Figure 90: TCP and UDP custom service options
ICMP custom service options
Figure 91: ICMP custom service options
IP custom service options
Figure 92: IP custom service options
Name The name of the TCP or UDP custom service.
Protocol Type Select the protocol type of the service you are adding: TCP or UDP. TCP
and UDP options are the same.
Source Port Specify the Source Port number range for the service by entering the low
and high port numbers. If the service uses one port number, enter this
number in both the low and high fields.
Destination Port Specify the Destination Port number range for the service by entering the
low and high port numbers. If the service uses one port number, enter this
number in both the low and high fields.
Name The name of the ICMP custom service.
Protocol Type Select the protocol type of the service you are adding (ICMP).
Type Enter the ICMP type number for the service.
Code Enter the ICMP code number for the service if required.
