QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 32
ZONE OVERVIEW OPERATING STATUS

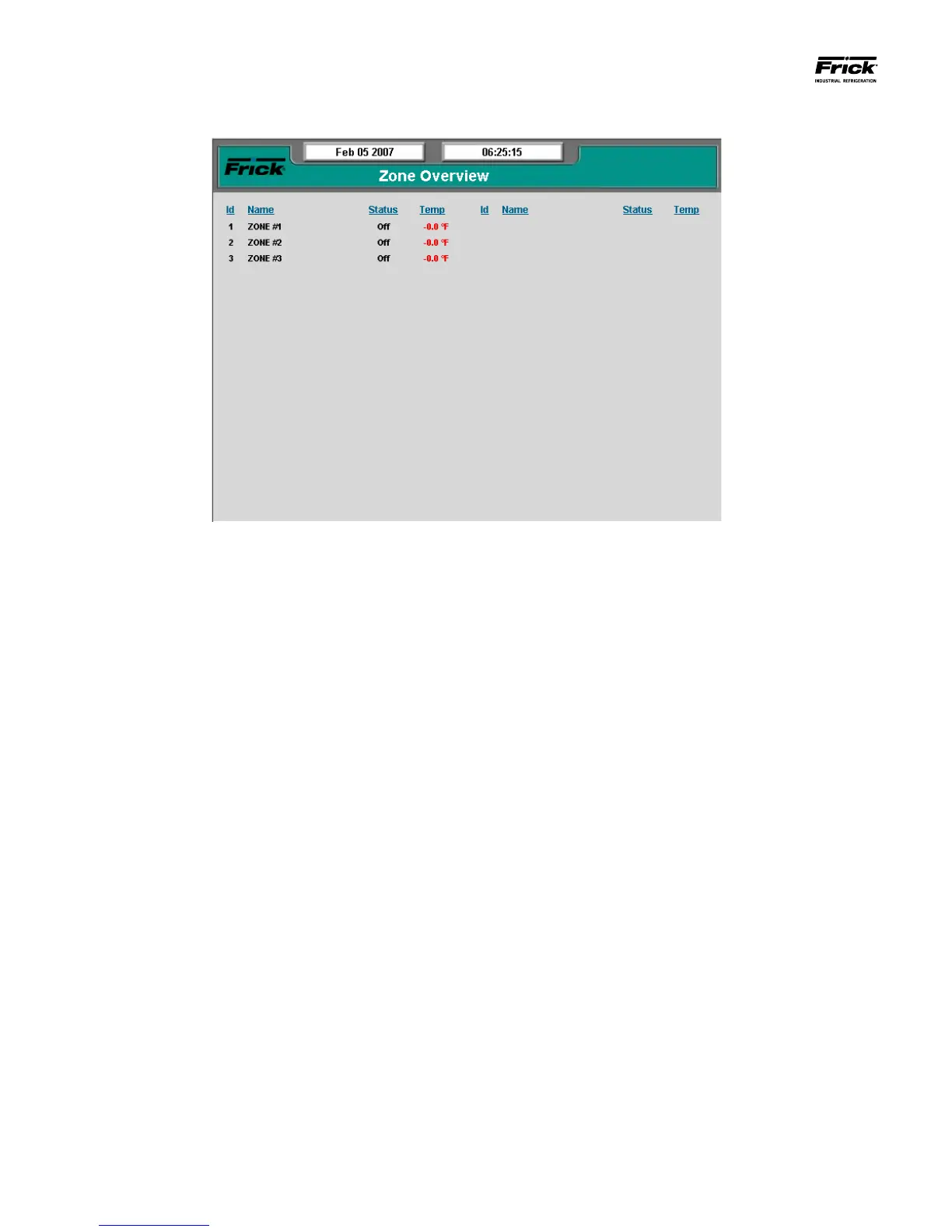

DESCRIPTION: The purpose of this screen is to allow the user
to view all of the units that have been congured on this con-
troller.
This screen is provided to allow the user to view basic infor-
mation about all Evaporator units (up to 30) that are congured
on this system. The following columns have been provided:
ID – The ID number of a zone, which is set by the dip-
switches of the I/O boards in the remote panel(s).
NAME – The name that has been assigned to the zone
(default is ZONE #1, 2, etc.)
STATUS – The current status of the particular zone (OFF,
COOLING, etc).
TEMP – The Control temperature.
To Next Page
