QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 57

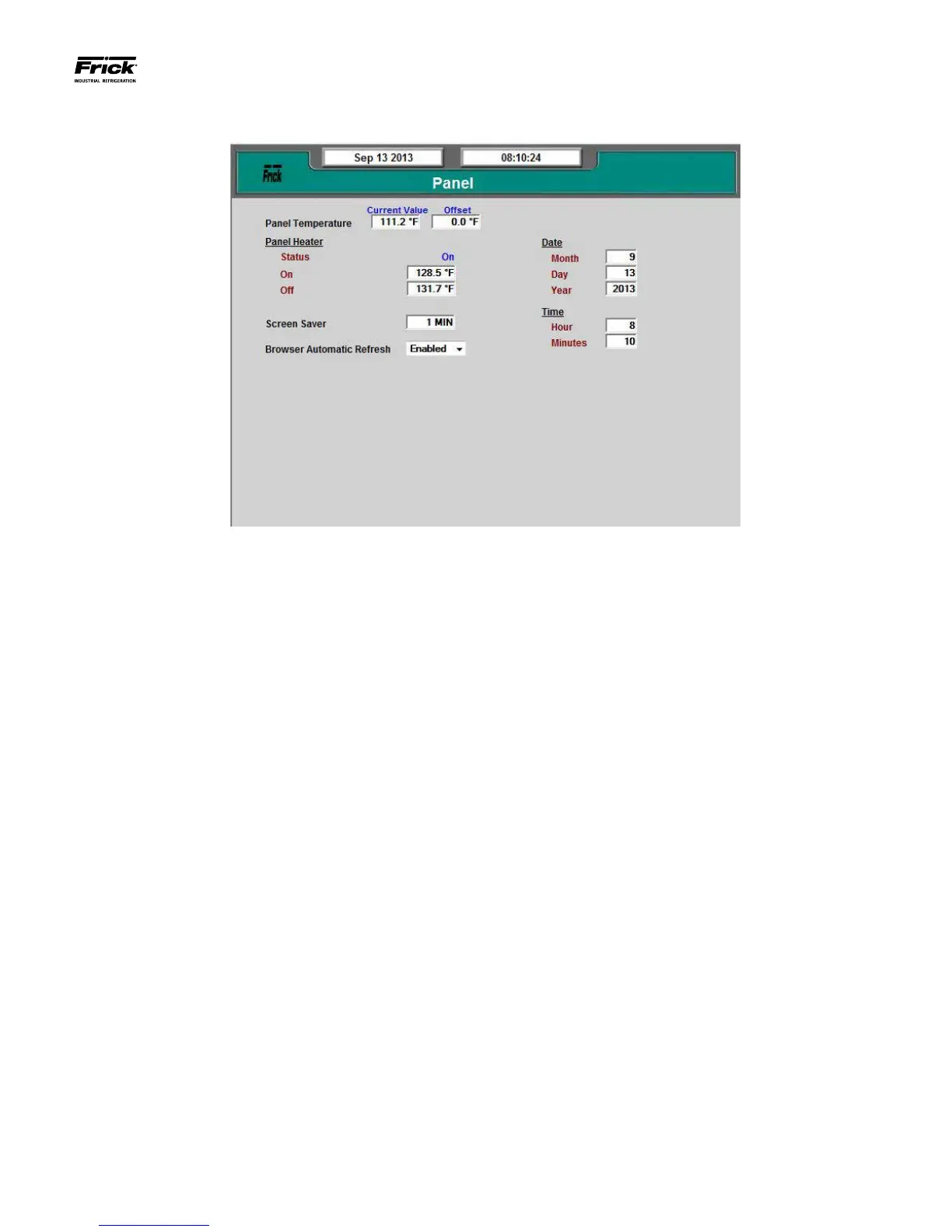

SETPOINTS – Panel
DESCRIPTION: This screen is used to view and set basic Evap-
orator operational values.
The following status display areas are provided:
Panel Temperature - The main processor board is
equipped with a temperature sensor. The panel has an
operational temperature that is automatically maintained.
Panel Heater - A heating pad is mounted in the panel to
automatically maintain the internal temperature to allow
the electronics to function properly. The following Status
message and Setpoint boxes show the current state of the
Panel Heater:
• Off - If the panel temperature is greater than or
equal to this setpoint, the Panel Heater output is
turned off.
• On - If the panel temperature is less than or
equal to this setpoint, the Panel Heater output is
turned on.
The following setpoint boxes are provided:
Date - Set the following setpoint boxes to the current
date:
[Month] – Range is 1-12
[Day] – Range is 1-31
[Year] – Range is 2000-2050
Time - Set the following three setpoint boxes to the cur-
rent time:
[Hour] – Range is 0-23
[Minutes] – Range is 0 to 59
