QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 41

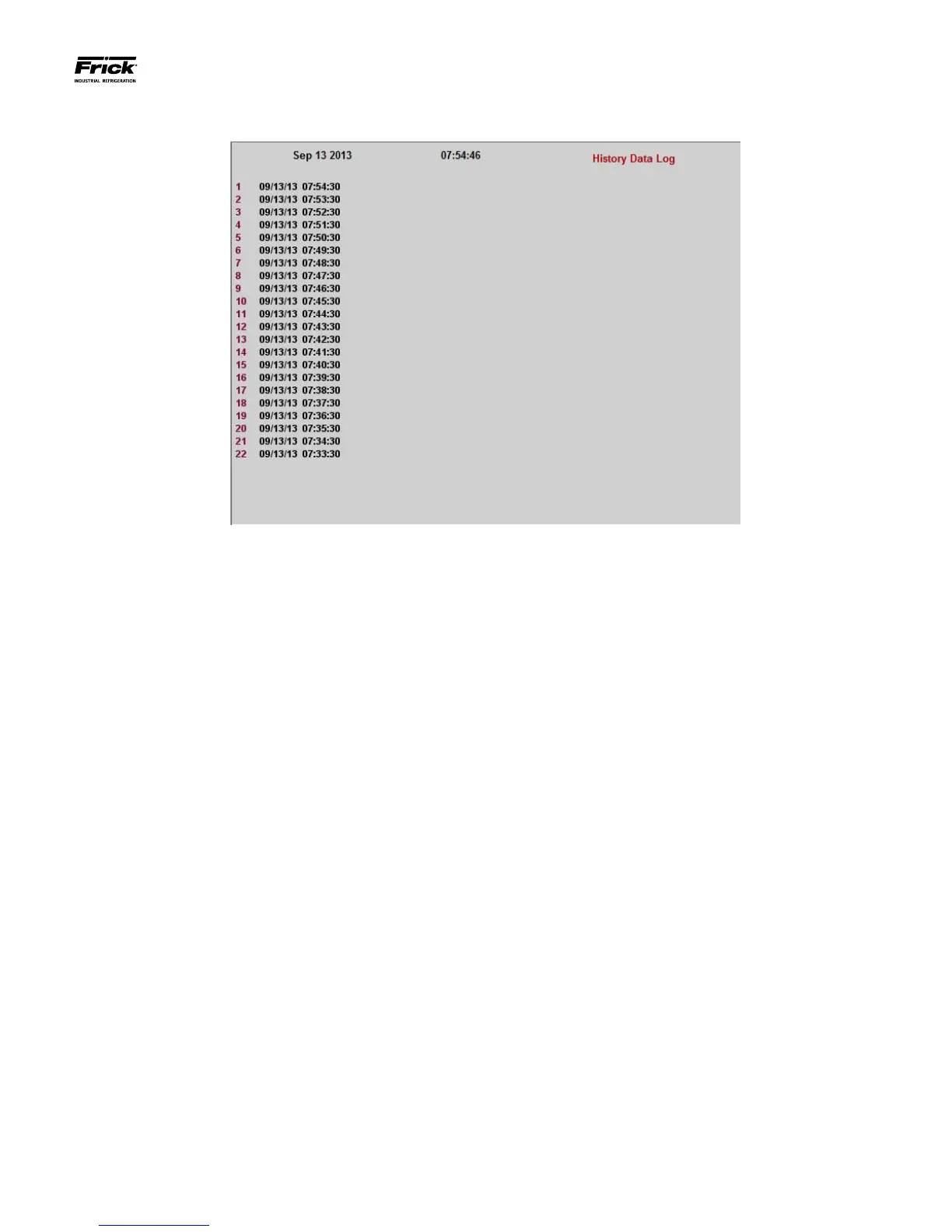

SYSTEM STATUS - Trending – History Data Log
DESCRIPTION: This screen will display in a tabular format, the
numerical data values selected on the History Trending Setup
screen. Each trending channel will be listed at the bottom of
the screen in a specic color that matches all data associated
with that channel.
The following data channels may be shown here:
• ZONE #1-30 - Return Air Temperature
• ZONE #1-30 – Ammonia
• ZONE #1-30 – Humidity
