QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 64

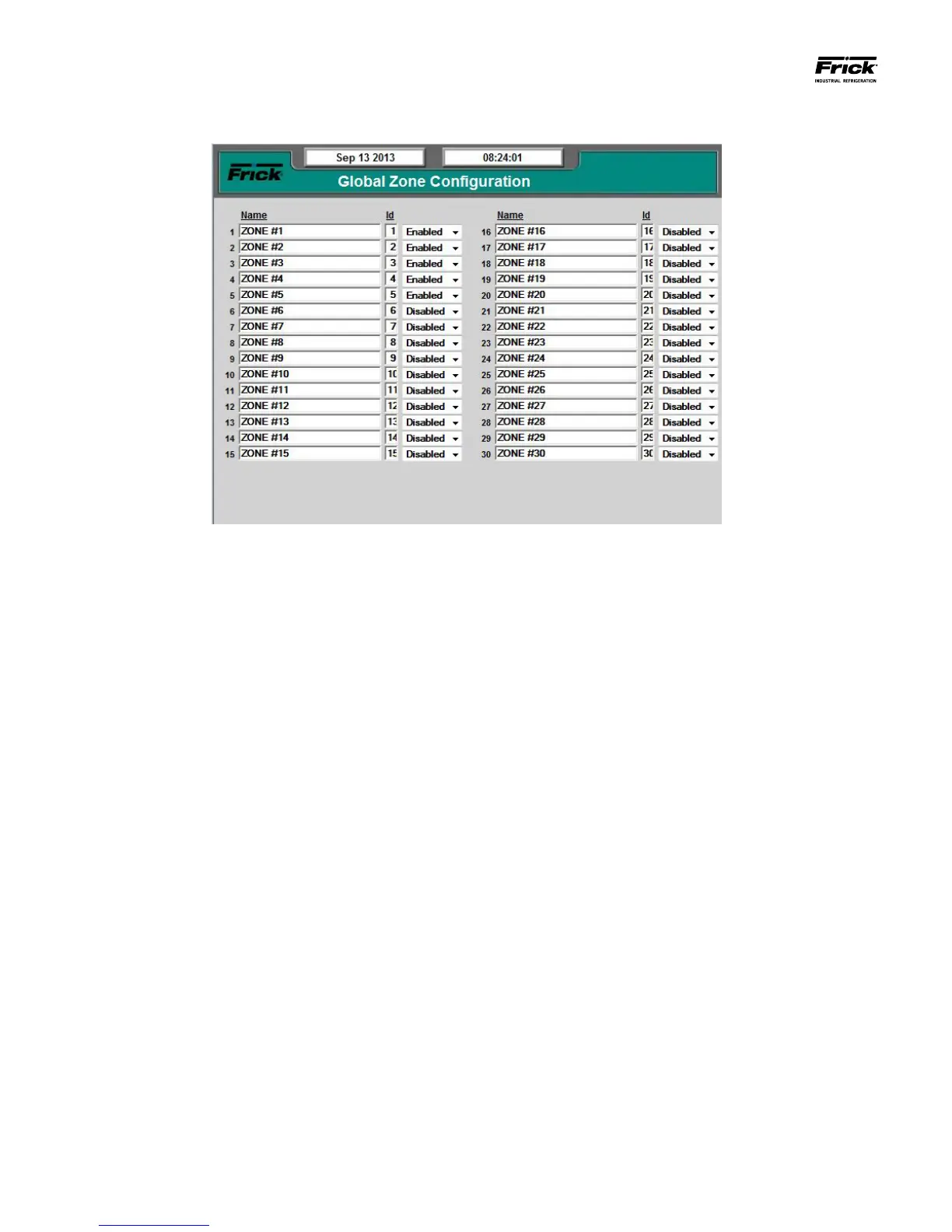

CONFIGURATION – Global Zone Conguration
DESCRIPTION: This screen is used to custom name each con-
gured zone, and to enable or disable them.
This screen will show all thirty potentially installed Evaporator
zones. Of course it is possible that there is anywhere from one
to thirty actual zones connected, depending upon the particu-
lar installation.
To custom name any of the installed zones, refer to the section
entitled MISCELLANEOUS SCREENS - Alpha.
A dropdown menu box exists for each of the displayed zones:
• Disable
• Enable
