QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 7

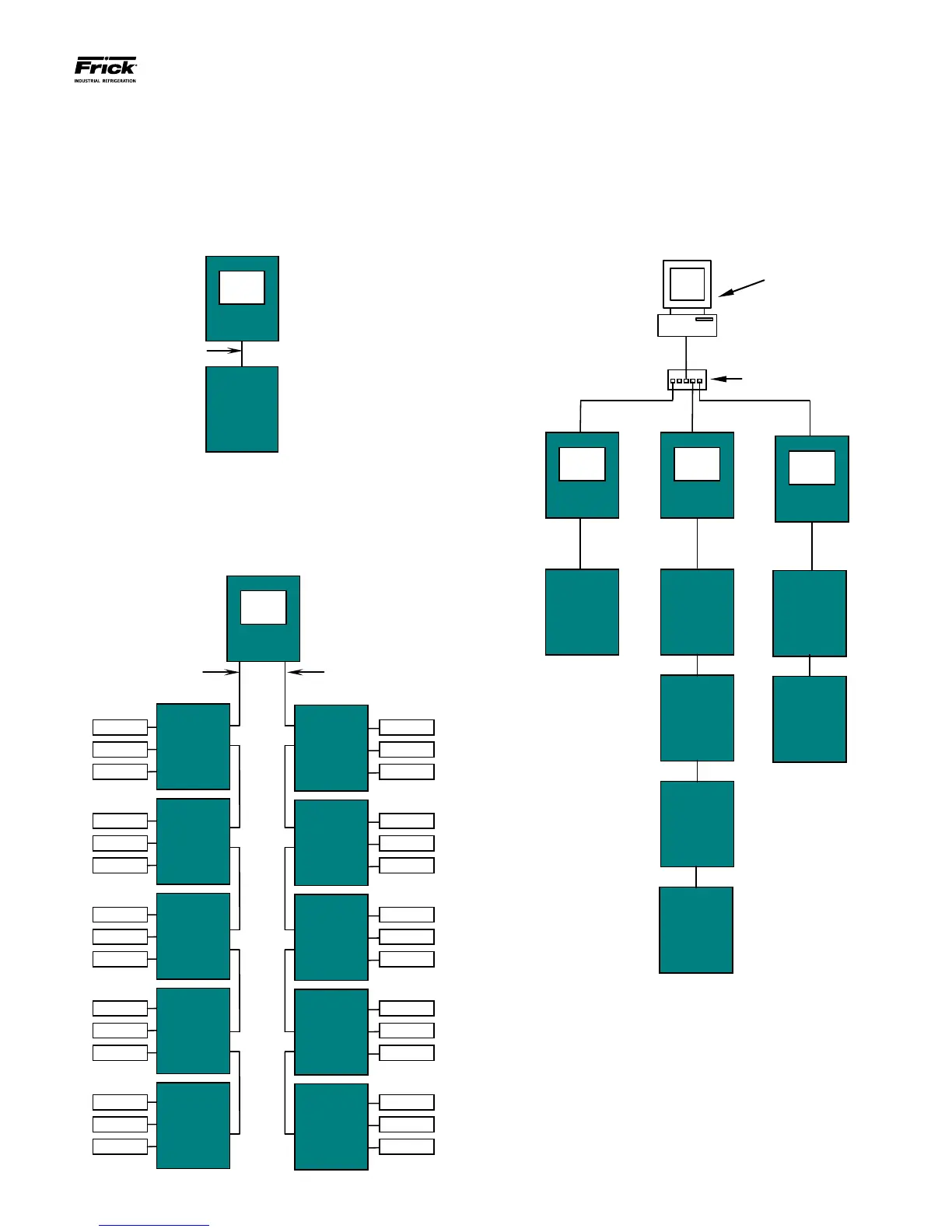

EVAPORATOR SYSTEM CONFIGURATIONS
As stated before, each complete Evaporator system
will consist of one Interface Panel, and can at least one
Remote I/O Panels Each Remote Panel can control up to
three zones.
See the example below of a minimum system:
Communications from
Q4 or Q5 board
A maximum congured system still consists of only one
Operator Interface Panel, however there can be up to ten
Remote Panels in a single system. Remember that each
Remote Panel can control up to three zones each. See the
example below of a maximum system (a more detailed
pictorial can be found later in this manual):
Communications from
Comm. 4 on Q4/Q5
board
Communications from
Comm. 3 on Q4/Q5
board
Multiple Evaporator systems may be interconnected via a com-
mon Ethernet connection. Each Evaporator system operates
independently of one another yet they may all be monitored
and controlled through a common computer. Such a system
would include the Quantum™ LX Evaporator Interface Panel,
Remote Zone Controller(s), an Ethernet Hub or Switch, and
a computer running a Web Browser. A simplied example of
such a system (with three Evaporator systems) is shown here:
To Next Page
