QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 73

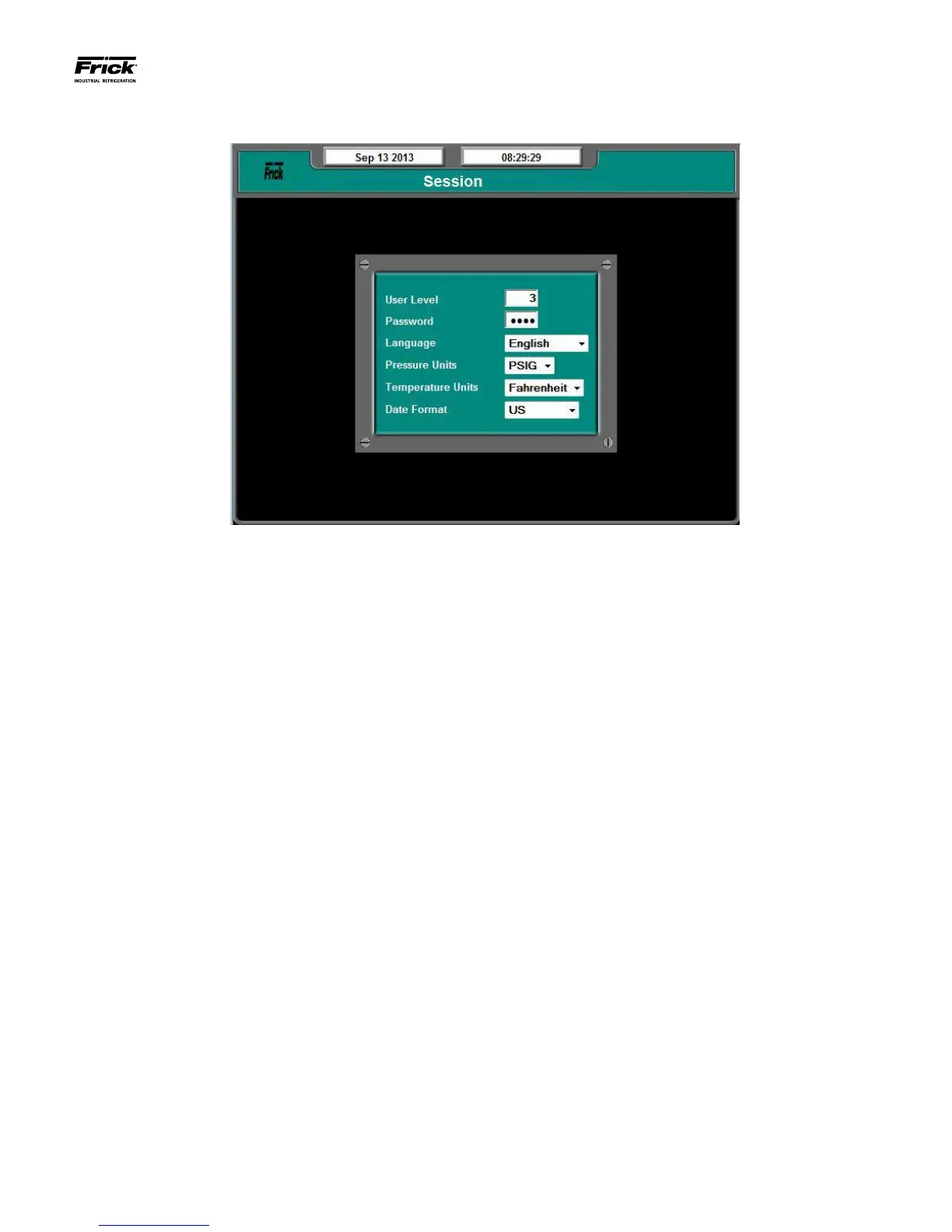

SESSION
DESCRIPTION: This screen allows the user/supervisor to ac-
cess the various available user levels. This is also where the
user can select the language, pressure units, temperature units
and date format.
The following Setpoints may be changed:
[User Level] - Any one of three possible levels may be ac-
cessed here. Level one (0) is also referred to as the BASIC
level, and requires no password. Level one (1) is referred
to as ADVANCED, and requires a password. Level one (2) is
referred to as SERVICE, and requires a password.
[Password] - A password has previously been assigned
to each user level by the supervisor. The user must match
the password for the particular level that they wish to ac-
cess. The following factory default passwords have been
provided:
• Level 0 (Basic) – No password required
• Level 1 (Advanced) – 10
• Level 2 (Service) - 20
The following drop down menus have been provided:
Language - You may choose from the following list:
• English
• French
• Portuguese
• Spanish
[Pressure Units] - You may choose from the following
list:
• Kpaa
• Bar
• BarA
• PSIA
• PSIG/hg
[Temperature Units] - You may choose from the follow-
ing list:
• Celsius
• Fahrenheit
[Date Format] - You may choose from the following list:
• US - Month/Day/Year format
• Europe - Day/Month/Year format
