CONFIGURATION – Ammonia Sensors

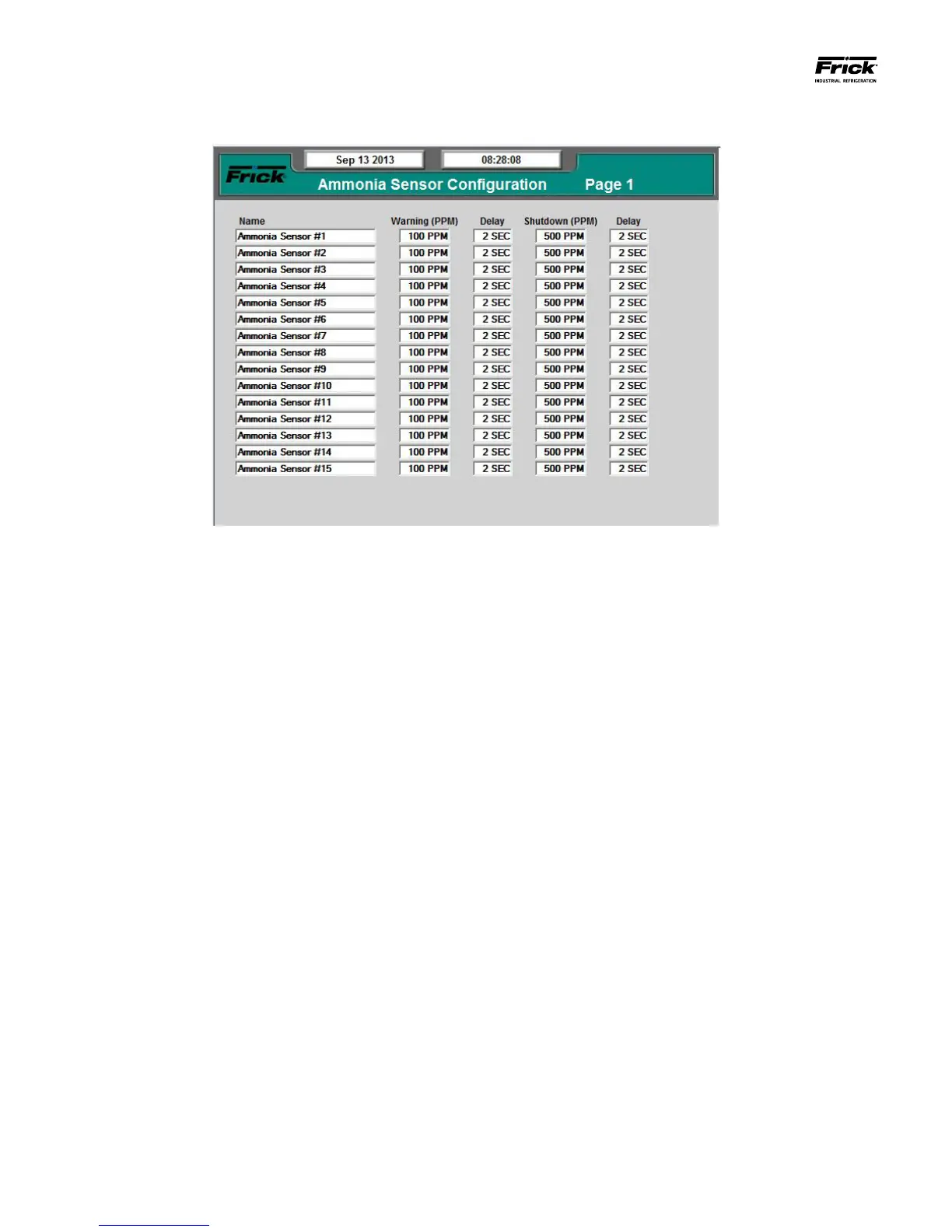

DESCRIPTION: This screen is used to congure the Ammonia
sensors.
NOTE: All sensors must rst be Calibrated for proper and safe
system operation. Refer to page 56 for additional information.
This screen should be used to setup the Ammonia sensor
Warning and Shutdown setpoints. Page 1 allows conguration
of Ammonia Sensors 1 through 15, Page 2 congures Ammonia
Sensors 16 through 30.
The following setpoints are available:
Name – A custom name may be entered here.
Warning (PPM) – Enter the value of the Parts Per Million
(PPM) of detected ammonia that will cause a Warning to
occur, after the delay time.
Delay – The amount of time after the ammonia sensor
input value exceeds the Warning (PPM) setpoint before a
Warning will be displayed.
Shutdown (PPM) - Enter the value of the Parts Per Mil-
lion (PPM) of detected ammonia that will cause a Shut-
down to occur, after the delay time.
Delay – The amount of time after the ammonia sensor
input value exceeds the Shutdown (PPM) setpoint before
a Shutdown will occur.
