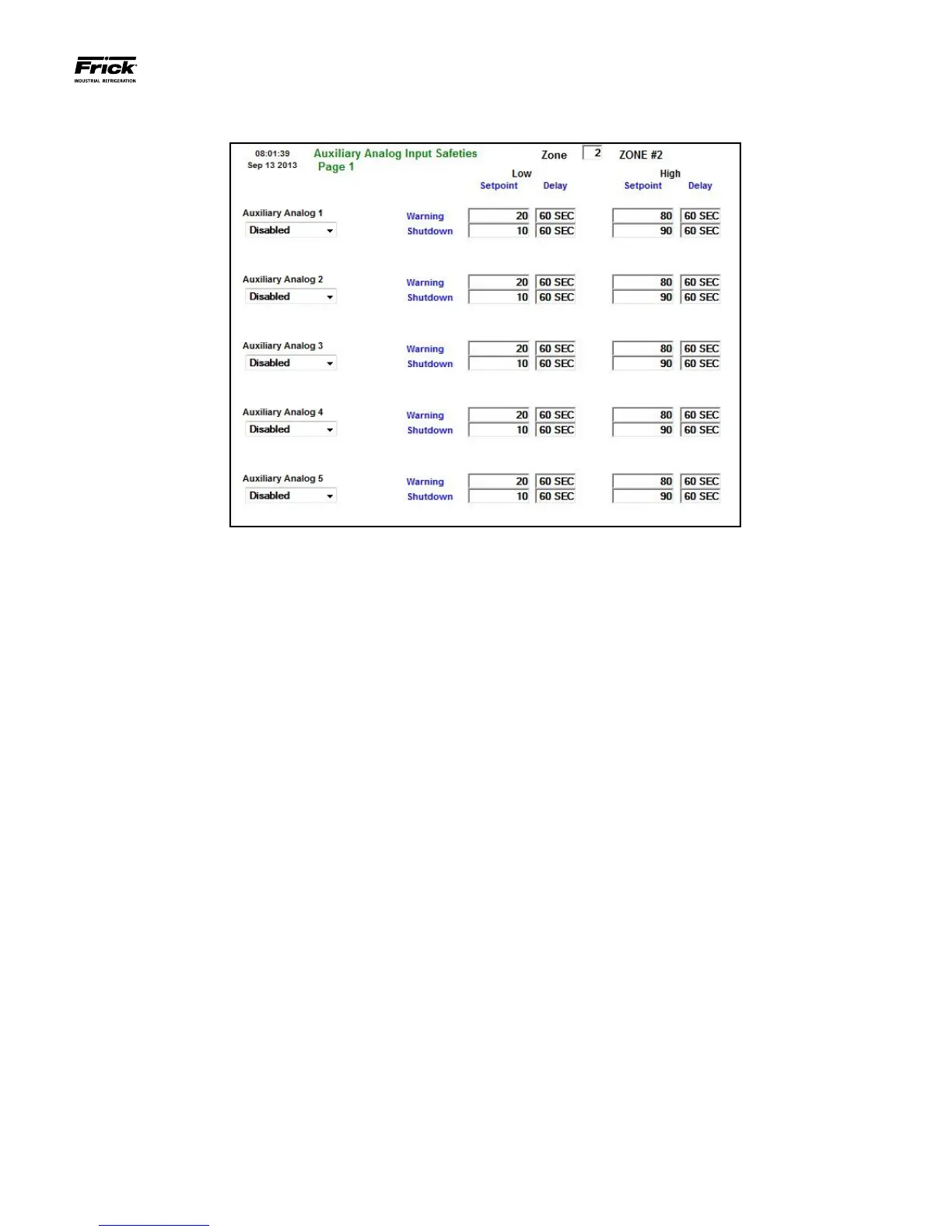

SETPOINTS – Auxiliaries – Analog Input Safeties – Page 1
Drop down menu boxes are provided for the following:
Auxiliary Analogs 1 through 5
• Disabled – The auxiliary channel will not be
monitored for warnings or shutdowns.
• When Running - The auxiliary channel will be
monitored for warning and shutdown occurrenc-
es only when the zone is on.
• Always - The auxiliary channel will be monitored
for warning and shutdown occurrences at all
times (Running or not).
The following setpoints are provided for each Auxiliary Analog
channel:
[Low Warning Setpoint] – This setpoint species the Low
Warning alarm threshold. In the event that the associated
auxiliary analog input falls below this value for a period of
time exceeding the Low Warning Delay, an Auxiliary Low
Warning Alarm will be issued.
[Low Warning Delay] – This setpoint species the period
of time that the associated auxiliary analog input must re-
main below the Low Warning Setpoint before an Auxiliary
Low Warning Alarm will be issued.
[Low Shutdown Setpoint] – This setpoint species the
Low Shutdown alarm threshold. In the event that the as-
sociated auxiliary analog input falls below this value for
a period of time exceeding the Low Shutdown Delay, an
Auxiliary Low Shutdown Alarm will be issued, and the
Evaporator controller will turn off the zone.
[Low Shutdown Delay] – This setpoint species the peri-
od of time that the associated auxiliary analog input must
remain below the Low Shutdown Setpoint before an Aux-
iliary Shutdown Alarm will be issued.
[High Warning Setpoint] – This setpoint species the
High Warning alarm threshold. In the event that the as-
sociated auxiliary analog input exceeds this value for a
period of time exceeding the High Warning Delay, an Aux-
iliary High Warning Alarm will be issued.
[High Warning Delay] – This setpoint species the period
of time that the associated auxiliary analog input must re-
main above the High Warning Setpoint before an Auxiliary
High Warning Alarm will be issued.
[High Shutdown Setpoint] – This setpoint species the
High Shutdown alarm threshold. In the event that the as-
sociated auxiliary analog input exceeds this value for a
period of time exceeding the High Shutdown Delay, an
Auxiliary High Shutdown Alarm will be issued, and the
Evaporator controller will turn off the zone.
[High Shutdown Delay] – This setpoint species the
period of time that the associated auxiliary analog input
must remain above the High Shutdown Setpoint before an
Auxiliary Shutdown Alarm will be issued.
NOTE: If you wish to bypass the warnings and utilize only
the shutdown feature, then set all warning values outside
of the shutdown values.
