QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 75

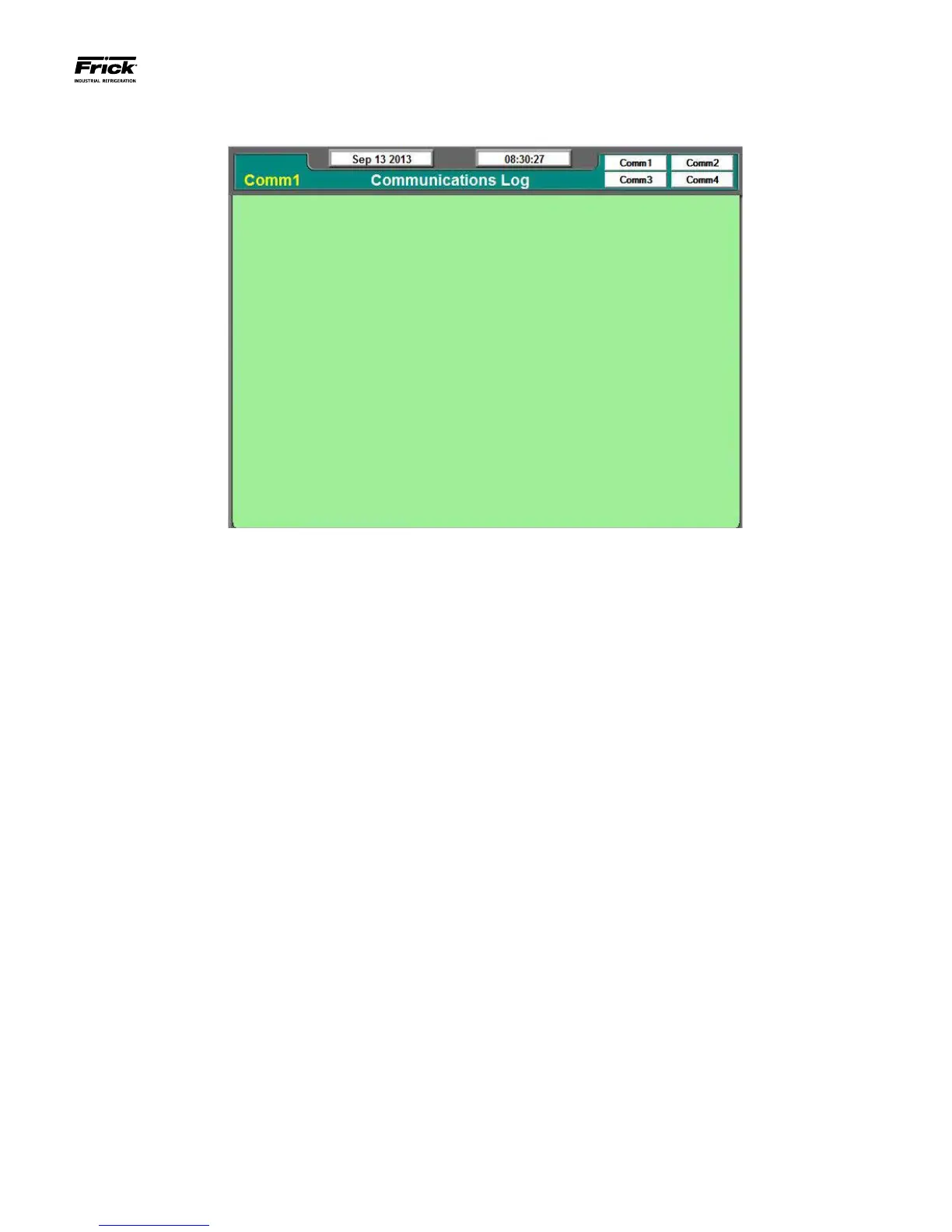

SERVICE – Communications Log
The following user selectable buttons are provided:
• [Show Comm1]
• [Show Comm2]
• [Show Comm3]
• [Show Comm4]
This screen allows the technician to view all of the commu-
nications information that the Quantum™ LX is receiving and
transmitting, one port at a time. Simply select the button at
the upper right side of the screen that corresponds to the port
that you wish to view. The selected port name (in this case
Comm4) will appear in the upper left side of the screen.
Each time a new command is sent or received, the screen will
need to be refreshed by selecting the [Show CommX] button
(where X is replaced with the comm port number).
This screen will display all data that is coming through the
selected Communications (Comm) port. The top line of data
is the most recent activity. At the left of each line, you should
see whether the data is IN or OUT (Receive or Send), and
the actual data (in Hexadecimal format). This information can
be used to compare against the data being sent and received
at the other end of the communications link, to verify proper
operation.
