QUANTUM™ LX EVAPORATOR CONTROL PANEL
OPERATION
090.610-O (MAR 2016)
Page 74

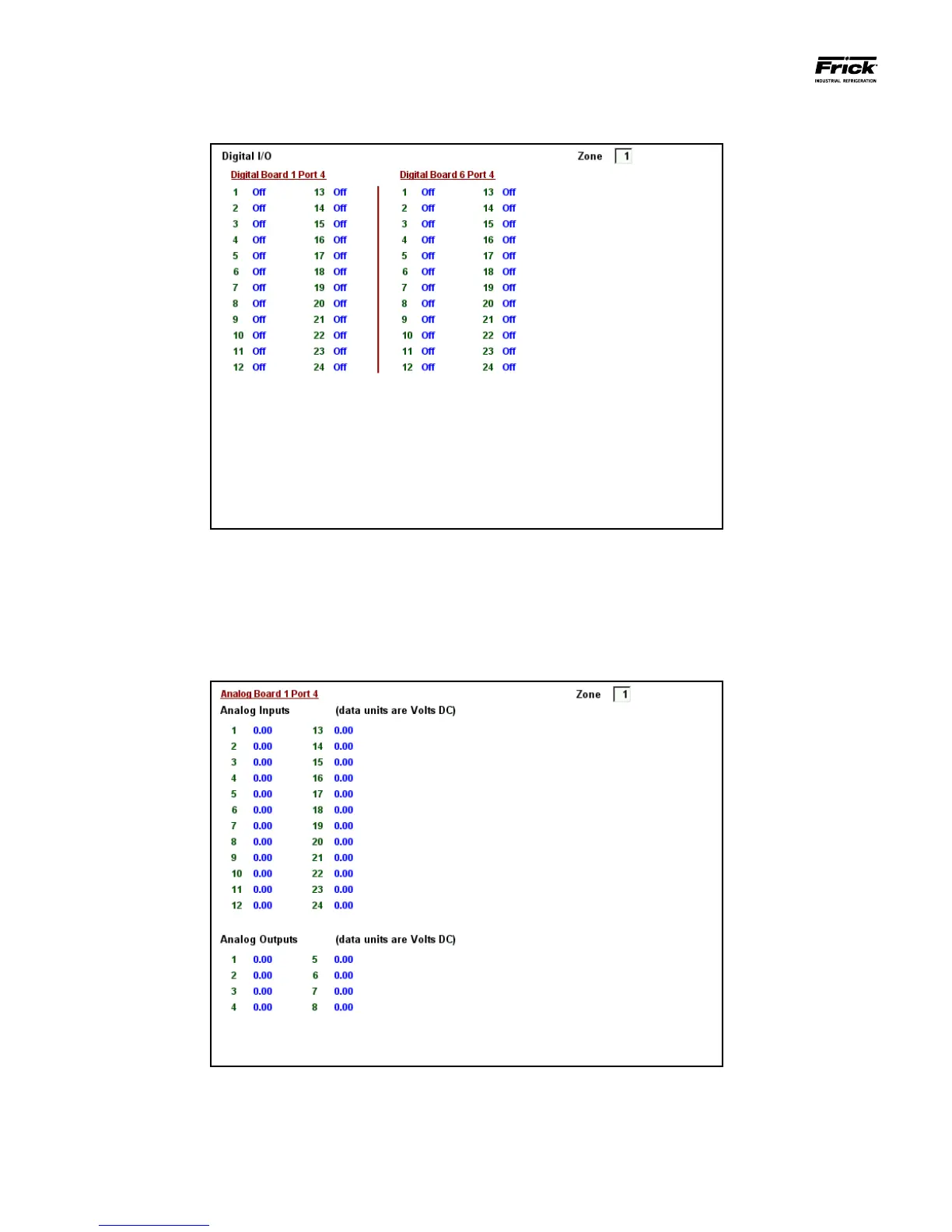

SERVICE – Digital
DESCRIPTION: This screen allows the technician to view the
status of all installed digital board inputs and outputs. An OFF
status indicates that the associated input or output is not en-
ergized. An ON status indicates that the associated input or
output is energized.
SERVICE – Analog
DESCRIPTION: This screen allows the technician to view the
status of all installed analog board inputs and outputs. The top
section of this screen shows the analog inputs. A value dis-
played next to each available channel indicates the DC voltage
that is present as an input. The lower half of the screen shows
the analog outputs. A value displayed next to each available
channel indicates the DC voltage that is present as an output.
