3.4 Programming Mode
3-21
Chapter 3
KEYPAD FUNCTIONS
Function codes requiring simultaneous keying
To modify the data for function code F00 (Data Protection), H03 (Data Initialization), H45 (Mock Alarm), or
H97 (Clear Alarm Data), simultaneous keying is needed, involving the
+ keys or + keys.
Changing, validating, and saving function code data when the inverter is running
Some function code data can be changed while the inverter is running, whereas others cannot. Further,
depending on the function code, modifications may or may not validate immediately. For details, refer to
the "Change when running" column in Chapter 5, Section 5.2 "Function Code Tables."
For details of function codes, refer to Chapter 5, Section 5.2 "Function Code Tables."

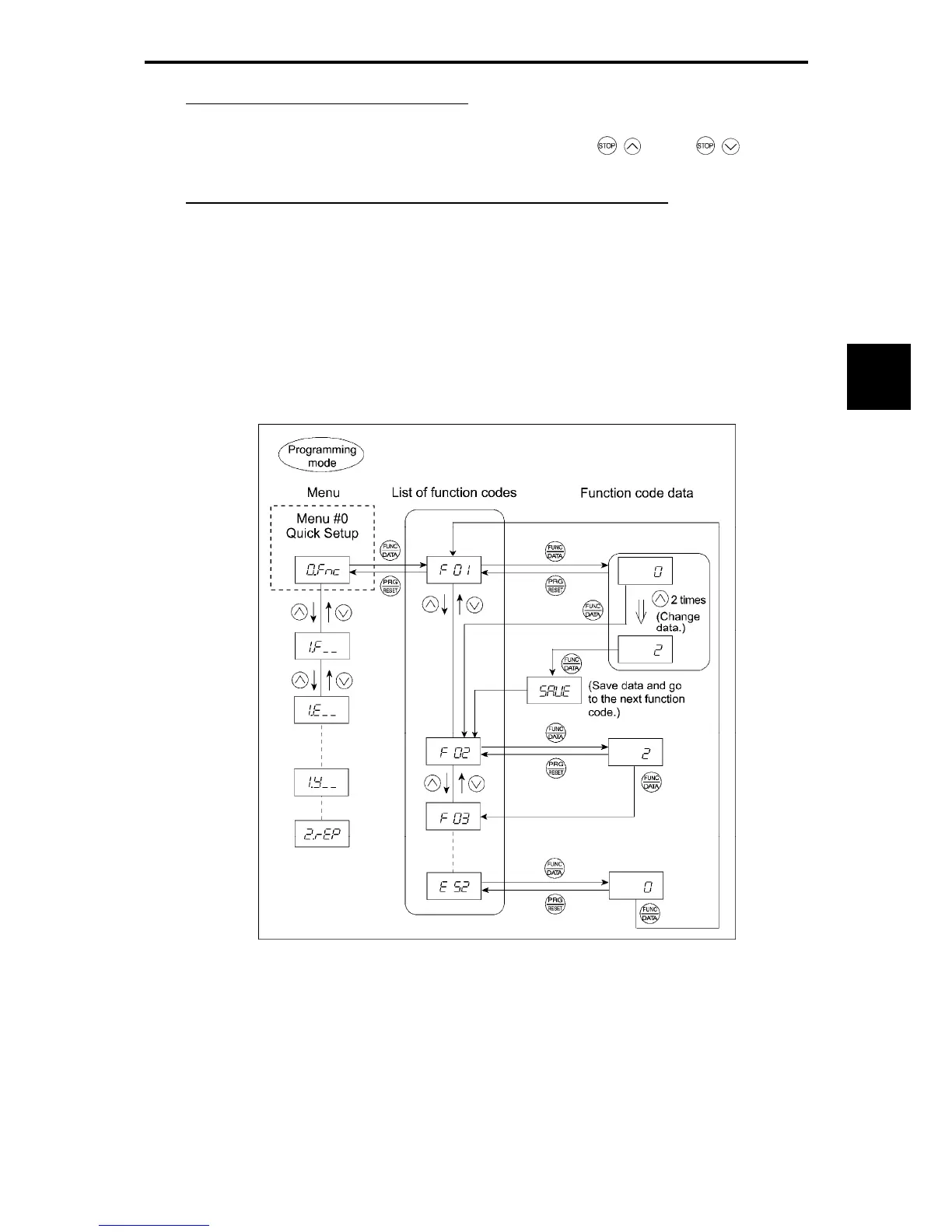

Figure 3.4-3 shows the menu transition in Menu #0 "Quick Setup" and function code data changing
procedure.
Figure 3.4-3 Menu Transition in Menu #0 "Quick Setup" and Function Code Data Changing Procedure
To Next Page
