5.4 Details of Function Codes
5-111
Details of
Function
F29 to F31
E codes
C codes
P codes
H codes
A codes
b codes
r codes
J codes
d codes
U codes
y codes
Chapter 5 Function Code

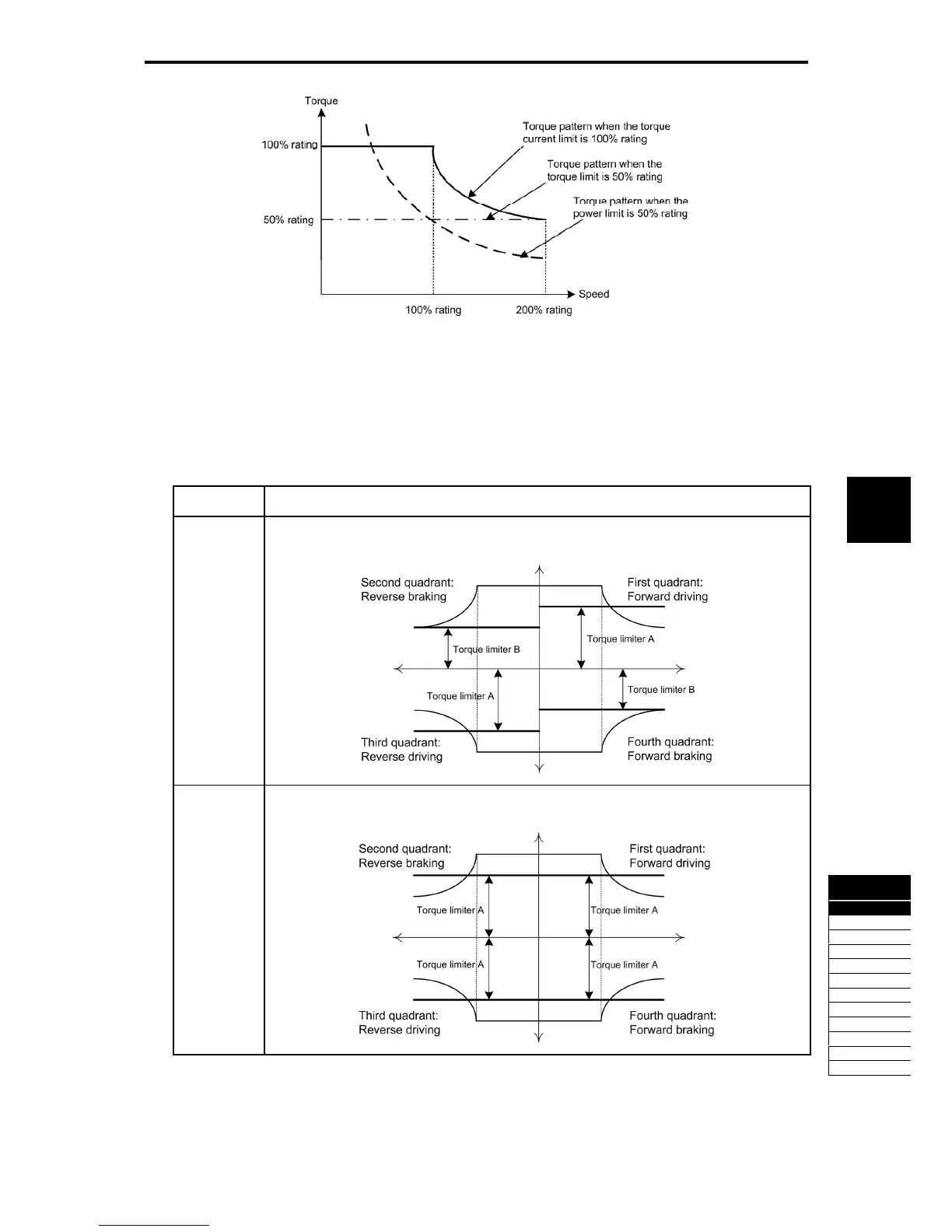

Figure 5.4-41
Torque Limiter (Target quadrants) (H75)
H75 selects the configuration of target quadrants (Drive/brake, Forward/reverse rotation) in which the
specified torque limiter(s) is activated, from "Drive/brake torque limit," "Same torque limit for all four
quadrants," and "Upper/lower torque limits" shown in the table below.
Table 5.4-48
Data for H75 Target quadrants
0: Drive/brake Torque limiter A applies to driving (both of forward and reverse), and torque limiter B to braking (both of
forward and reverse).
1: Same for all
four
quadrants
Torque limiter A applies to all four quadrants; that is, the same torque limit applies to both driving and
braking in the forward and reverse rotations.
