1.1 Features
1-9
Chapter 1 BEFORE USE
z
Safety-compliant inverters (Built-to-order)
Fuji safety-compliant inverters comply with the machine safety standards EN 954-1 Cat3, and EN ISO
13849-1 PL:d Cat3 and IEC/EN 61800-5-2. This type enables easy compliance of your machines with the
safety standards.
By using a safety-compliant inverter, main circuit switches can be simplified. The circuit cuts output with
hardware, dispensing with software, and is redundantly designed with two systems.

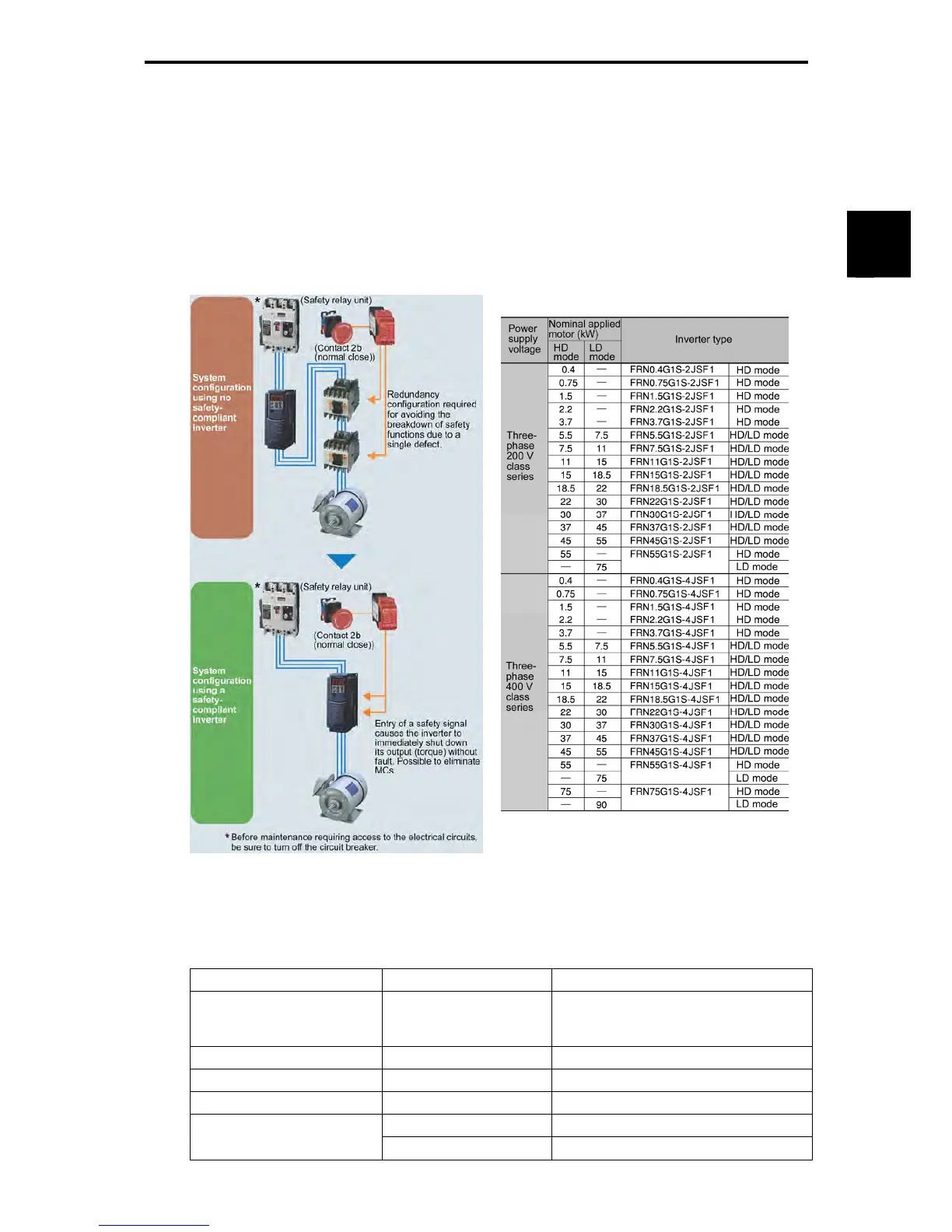

1. By using a safety-compliant inverter, main circuit switches can be simplified.
When a safety signal is input (safety terminal: open), the inverter immediately shuts off the torque (cuts
output). The number of contacters to be used can be reduced.
z
FRENIC-MEGA Series
* For inverters with capacities other than the above, contact your
Fuji Electric representative.
* The safety-compliant inverters are available on request. For the
delivery schedule, contact your Fuji Electric representative.
For details, see Safety-Compliant Inverters Catalog (MH668).
2. Comparison between safety-compliant models and standard models
Table 1.1-1
Standard models Safety-compliant models
Compliance with safety standards Non-compliant
EN 954-1 Cat3
EN ISO 13849-1 PL:d Cat3
IEC/EN 61800-5-2
Control circuit terminal block Round-head screw terminals Spring terminals
X terminals Nine [X1] through [X9] Seven [X1] through [X7] (2 terminals reduced)
Safety terminal None Provided (EN1 and EN2 terminals)
FMA (analogue output) 2 analog outputs --FM1 and FM2
Output for meters
FMP (pulse output) -
