5.4 Details of Function Codes
5-129
Details of
Function Codes
F codes
E01 to E09
C codes
P codes
H codes
A codes
b codes
r codes
J codes
d codes
U codes
y codes
Chapter 5 Function Code

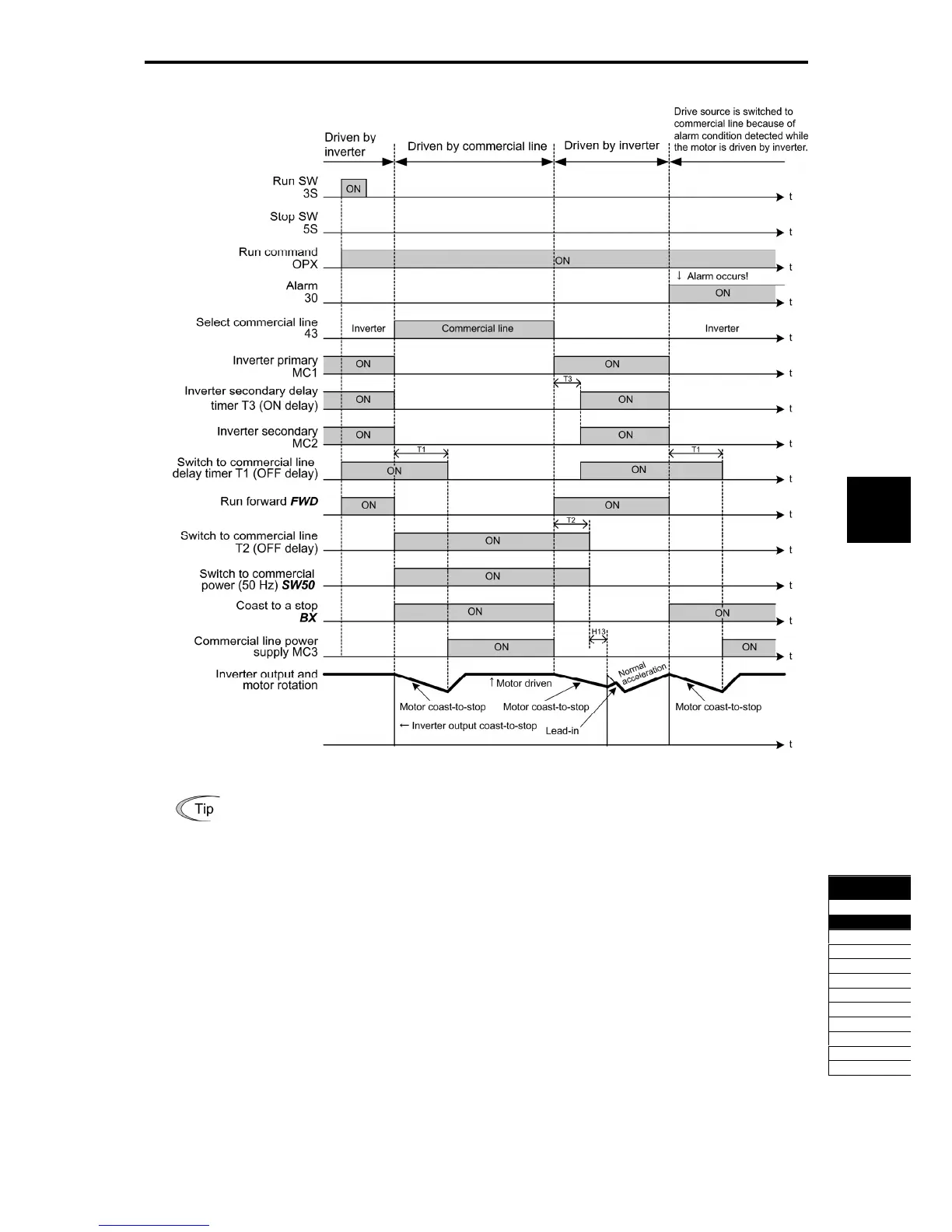

<Example of Operation Chart>
Fig. 5.4-49
Alternatively, you may use the integrated sequence by which some of the actions above are
automatically performed by the inverter itself.
For details, see the description of ISW50 and ISW60.
Assignment of UP/DOWN command UP/DOWN (Function code data = 17 and 18)
- Frequency command: When turning on UP or DOWN, the output frequency increases or decreases
respectively, within the range from 0 Hz to the maximum frequency. (
Function
code F01 Data = 7)
- PID command: When turning on UP or DOWN, the PID control command value increases or
decreases respectively, within the range from 0 to 100%. (
Function code J02
Data = 3)
Assignment of edit accept command (data change accept) WE-KP (Function code data = 19)
This function enables to edit only when WE-KP is input in order to prevent erroneous changing of the
function code data by incorrect operation on the keypad. (
Function code F00)
