5.4 Details of Function Codes
5-146

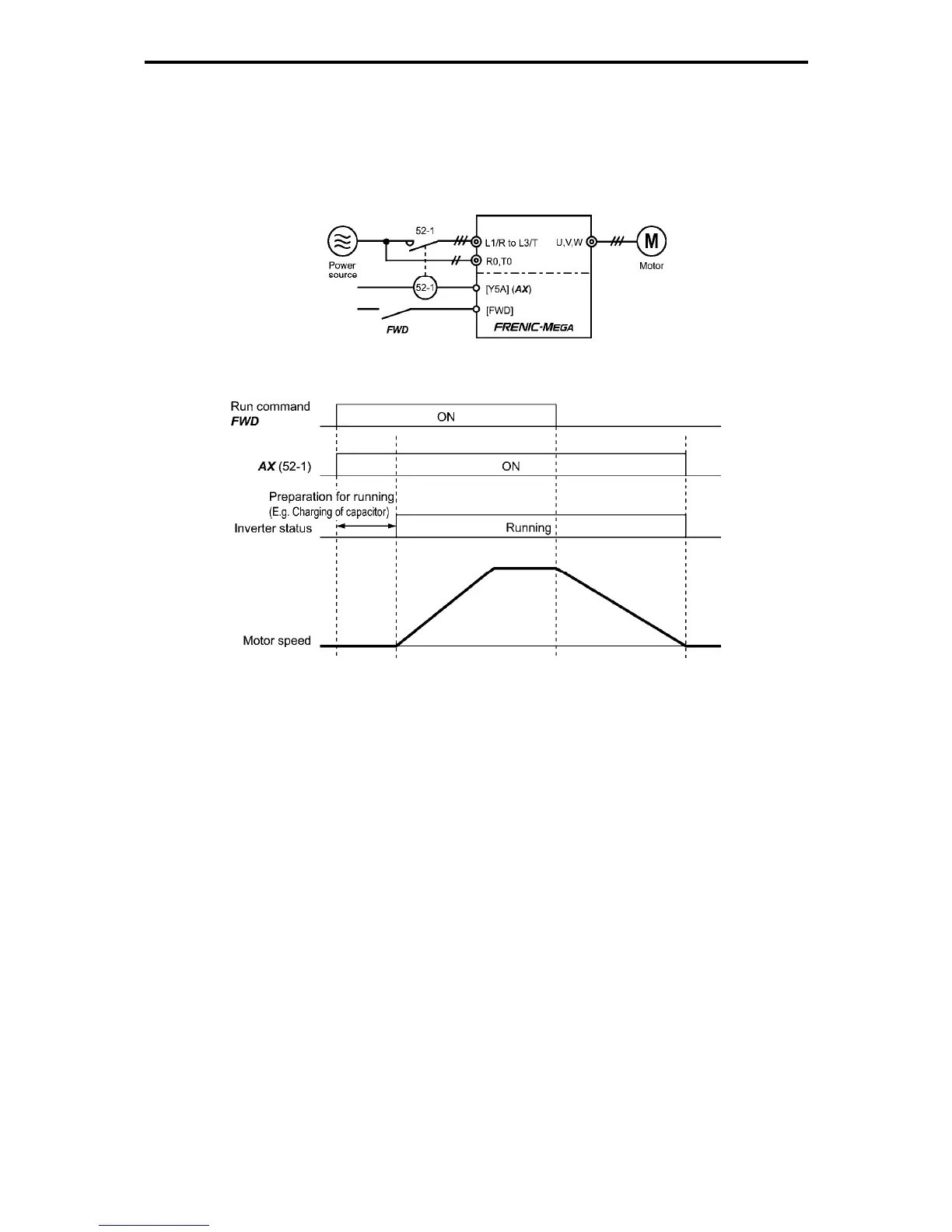

Assignment of AX terminal function AX (Function code data = 15)
In response to the operation command, this function controls the magnetic contactor at the inverter input side.
The magnetic contactor turns on when the operation command is input. The magnetic contactor turns off
after the inverter decelerates and stops when the stop command is input. When the coast-to-stop command
is input, or during the alarm operation, this signal immediately turns off.
Fig. 5.4-61
Fig. 5.4-62
Assignment of pattern operation stage change TU (Function code data = 16)
During the stage change in the pattern operation, the ON signal of one shot (100 ms) is output to indicate
that the stage has been changed. Used by the customizable logic.
Assignment of pattern operation cycle operation complete T0 (Function code data = 17)
When all stages from 1 to 7 in the pattern operation are completed, the ON signal of one shot (100 ms) is
output. Used by the customizable logic.
