(3) Operation continuation after one cycle operation
This sample carries out one cycle of pattern operation and continues to run with the output frequency applied
for the final operation.

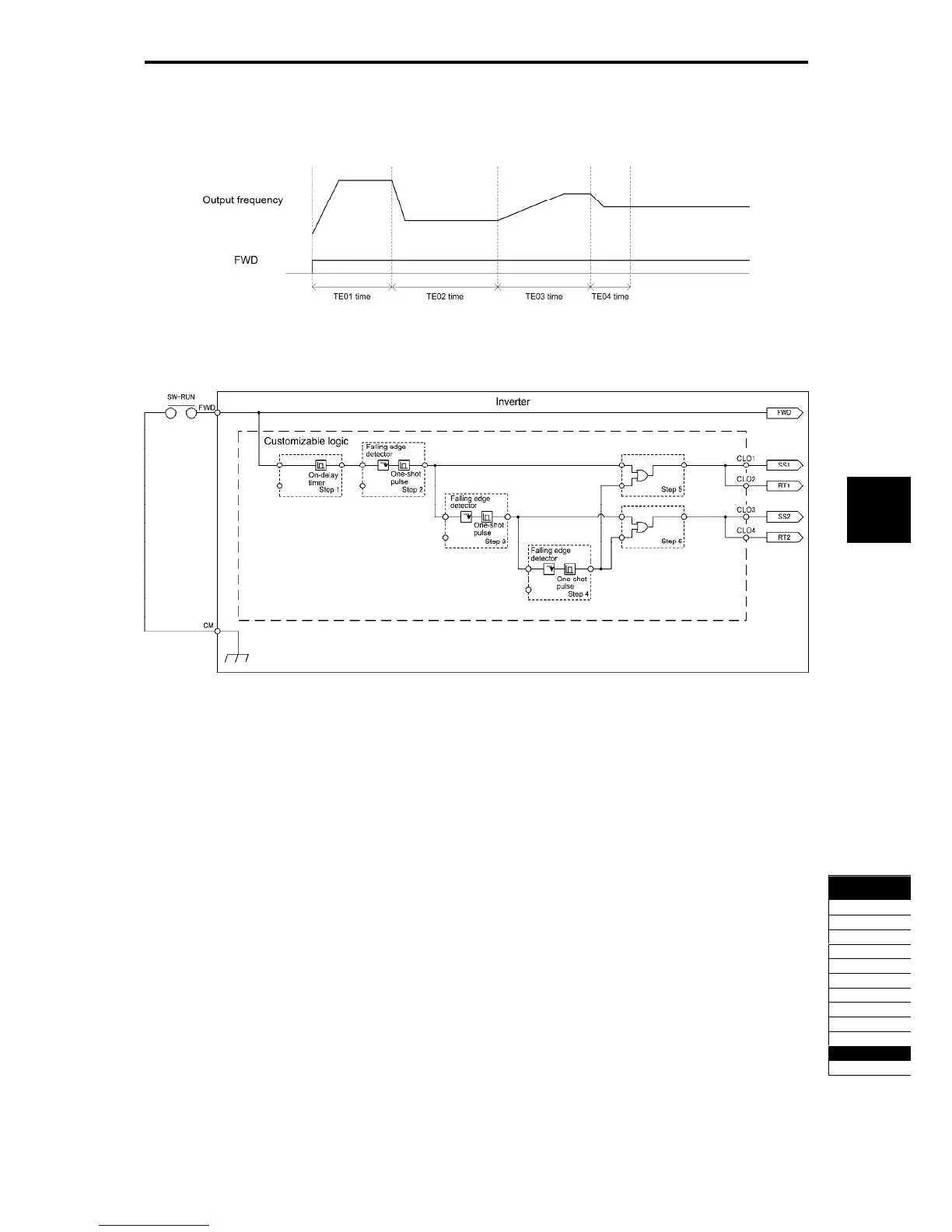

Fig. 5.4-138 Timing chart of pattern operation (operation continuation)
Fig. 5.4-139 Customizable logic configuration for pattern operation (operation continuation)
