11.4 Option
11-39
Chapter 11 SELECTING PERIPHERAL EQUIPMENT
< Boosting reactor >

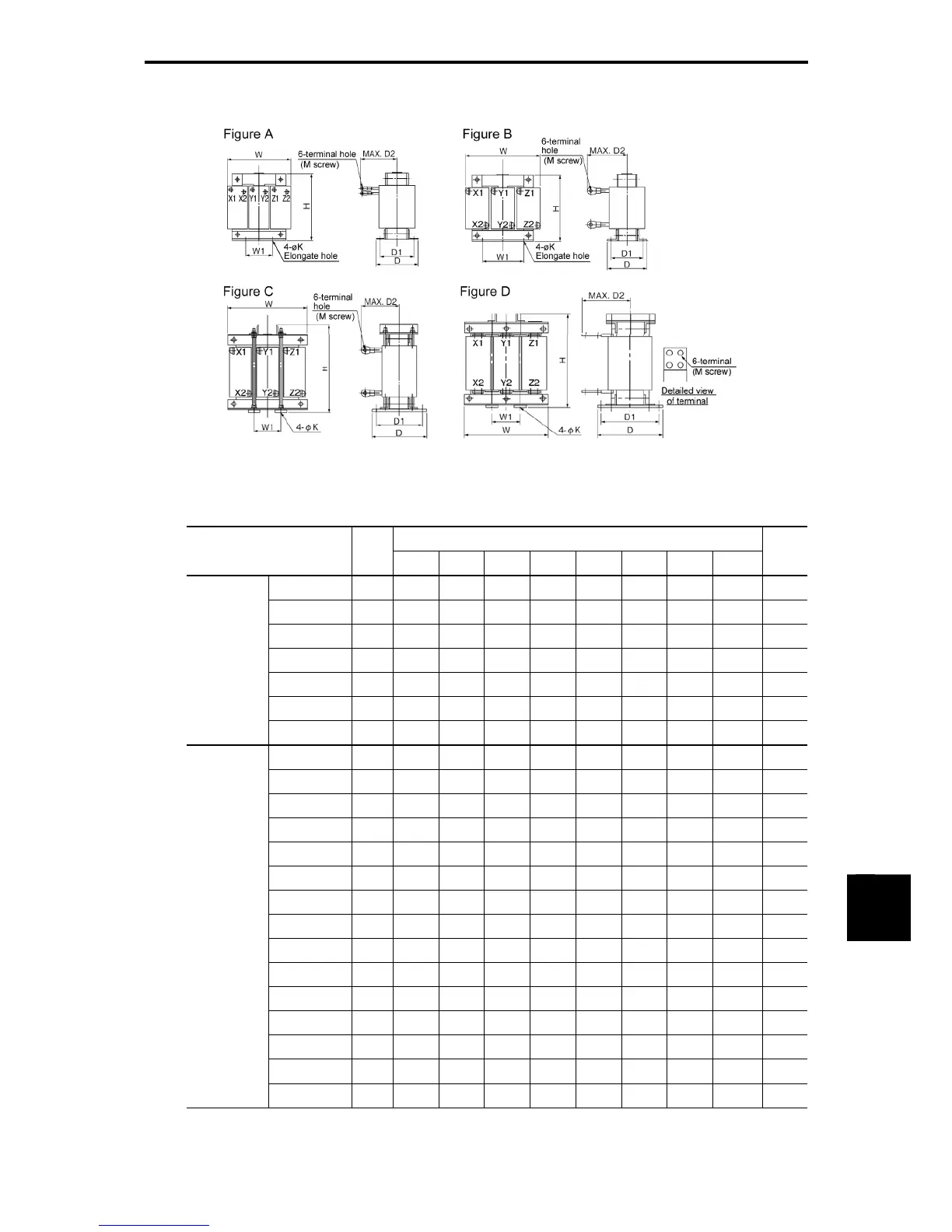

Figure 11.4-10
Table 11.4-12
Dimensions (mm)
Boosting reactor type Figure
W W1 H D D1 D2 K M
Mass
(kg)
LR2-7.5C
A 180 75 205 105 85 95 7 M5 12
LR2-15C
B 195 75 215 131 110 130 7 M8 18
LR2-22C
C 240 80 340 215 180 145 10 M8 33
LR2-37C
C 285 95 420 240 205 150 12 M10 50
LR2-55C
C 285 95 420 250 215 160 12 M12 58
LR2-75C
C 330 110 440 255 220 165 12 M12 70
200 V class
series
LR2-110C
C 345 115 500 280 245 185 12 M12 100
LR4-7.5C
B 180 75 205 105 85 90 7 M4 12
LR4-15C
A 195 75 215 131 110 120 7 M5 18
LR4-22C
C 240 80 340 215 180 120 10 M6 33
LR4-37C
C 285 95 405 240 205 130 12 M8 50
LR4-55C
C 285 95 415 250 215 145 12 M10 58
LR4-75C
C 330 110 440 255 220 150 12 M10 70
LR4-110C
C 345 115 490 280 245 170 12 M12 100
LR4-160C
C 380 125 550 300 260 185 15 M12 140
LR4-220C
C 450 150 620 330 290 230 15 M12 200
LR4-280C
C 480 160 740 330 290 240 15 M16 250
LR4-315C
C 480 160 760 340 300 250 15 M16 270
LR4-355C
C 480 160 830 355 315 255 15 M16 310
LR4-400C
C 480 160 890 380 330 260 19 M16 340
LR4-500C
C 525 175 960 410 360 290 19 M16 420
400 V class
series
LR4-630C
D 600 200 64 440 390 290 19 4×M12 450
