11.4 Option
11-40

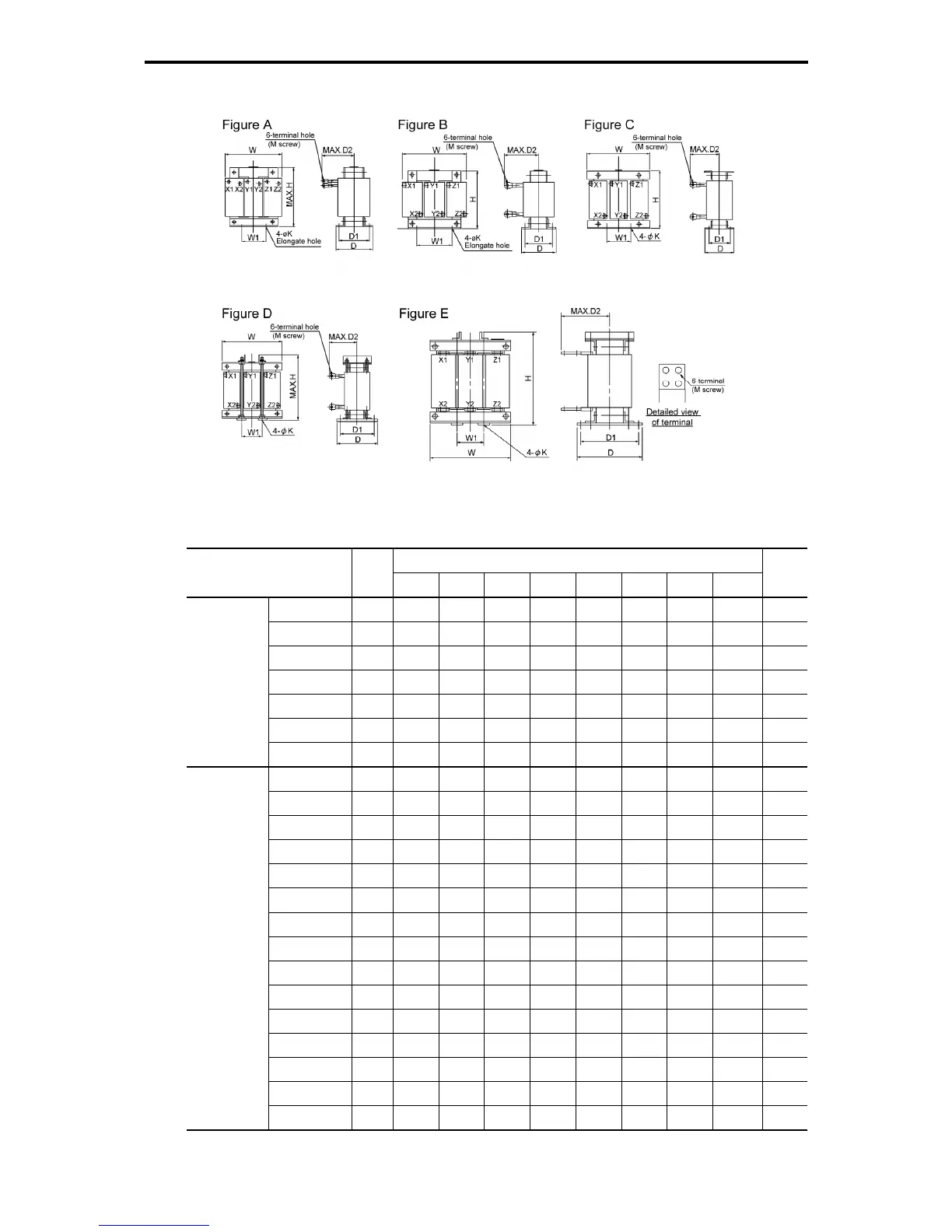

< Filtering reactor >
Figure 11.4-11
Table 11.4-13
Dimensions (mm)
Filtering reactor type Figure
W W1 H D D1 D2 K M
Mass
(kg)
LFC2-7.5C
B 125 40 100 85 67 85 6 M5 2.2
LFC2-15C
B 125 40 100 93 75 90 6 M8 2.5
LFC2-22C
B 125 40 100 93 75 105 6 M8 3.0
LFC2-37C
B 150 60 115 103 85 125 6 M10 5.0
LFC2-55C
B 175 60 145 110 90 140 6 M12 8.0
LFC2-75C
B 195 80 200 120 100 150 7 M12 13
200 V class
series
LFC2-110C
C 255 85 230 118 95 165 7 M12 20
LFC4-7.5C
A 125 40 100 85 67 75 6 M4 2.2
LFC4-15C
A 125 40 100 93 75 90 6 M5 2.5
LFC4-22C
A 125 40 100 93 75 95 6 M6 3.0
LFC4-37C
B 150 60 115 108 90 110 6 M8 5.0
LFC4-55C
B 175 60 145 110 90 120 6 M10 8.0
LFC4-75C
B 195 80 200 113 93 130 7 M10 12
LFC4-110C
C 255 85 220 113 90 145 7 M12 19
LFC4-160C
C 255 85 245 137 110 150 7 M12 22
LFC4-220C
D 300 100 320 210 180 170 10 M12 35
LFC4-280C
D 330 110 320 230 195 195 12 M16 43
LFC4-315C
D 315 105 365 230 195 200 12 M16 48
LFC4-355C
D 315 105 395 235 200 210 12 M16 53
LFC4-400C
D 345 115 420 235 200 235 12 M16 60
LFC4-500C
D 345 115 480 240 205 240 12 M16 72
400 V class
series
LFC4-630C
E 435 145 550 295 255 205 15 4×M12 175
