11.4 Option
11-41
Chapter 11 SELECTING PERIPHERAL EQUIPMENT
< Filtering capacitor >

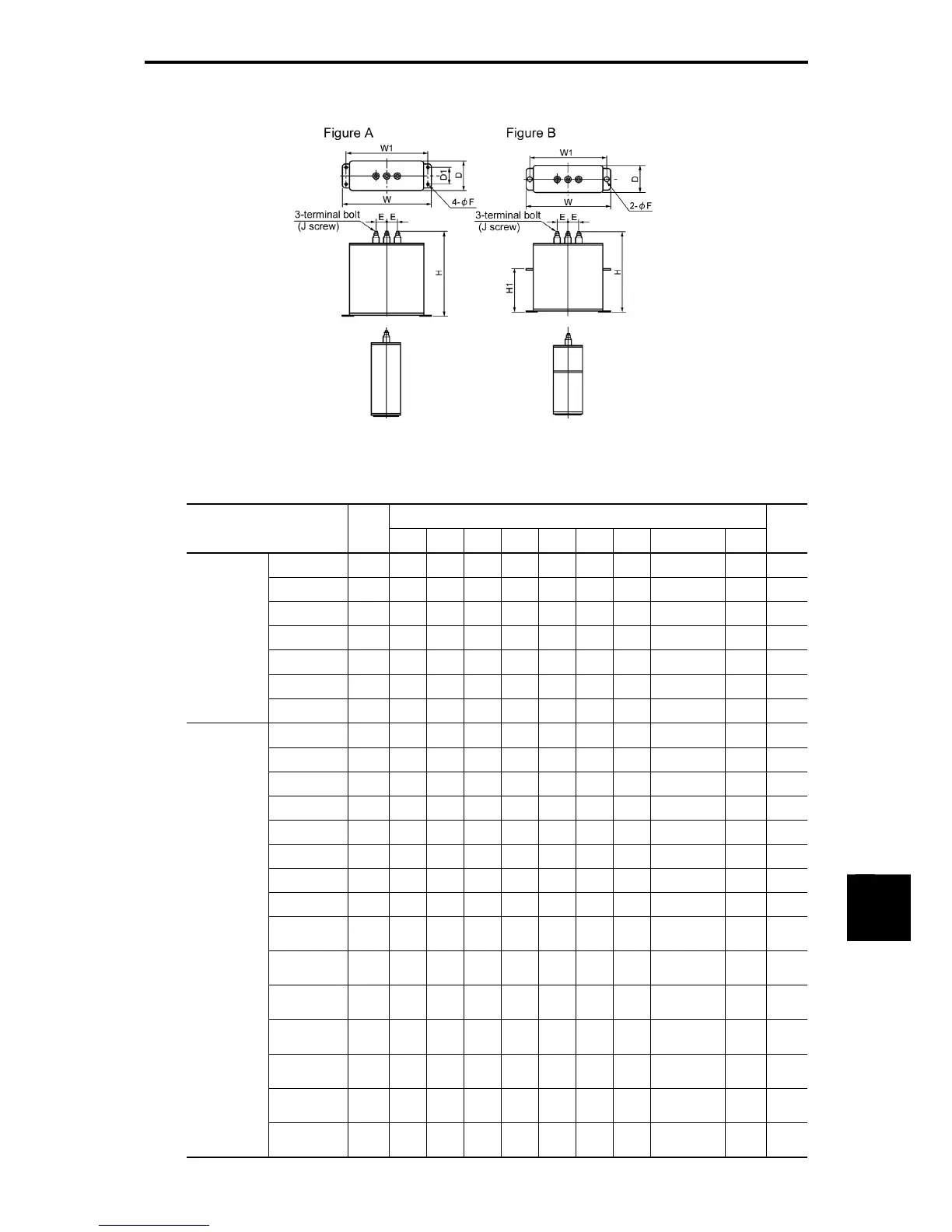

Figure 11.4-12
Table 11.4-14
Dimensions (mm)
Filtering capacitor type Figure
W W1 H H1 D D1 E F J
Mass
(kg)
CF2-7.5C
A 165 150 185 - 70 40 30 7 M5 1.9
CF2-15C
A 205 190 245 - 70 40 30 7 M5 3.5
CF2-22C
A 280 265 215 - 90 55 30 7 M5 5.5
CF2-37C
A 280 265 235 - 90 55 30 7 M5 6.0
CF2-55C
A 280 265 340 - 90 55 80 7 M6 8.5
CF2-75C
A 280 265 235 - 90 55 30 7 M5 6.0
200 V class
series
CF2-110C
A 280 265 340 - 90 55 80 7 M8 8.5
CF4-7.5C
A 165 150 135 - 70 40 30 7 M5 1.3
CF4-15C
A 165 150 215 - 70 40 30 7 M5 2.3
CF4-22C
A 205 190 185 - 70 40 30 7 M5 2.5
CF4-37C
A 205 190 205 - 70 40 30 7 M5 2.9
CF4-55C
A 205 190 245 - 70 40 30 7 M5 3.5
CF4-75C
A 205 190 205 - 70 40 30 7 M5 2.9
CF4-110C
A 205 190 245 - 70 40 30 7 M5 3.5
CF4-160C
A 280 265 260 - 90 55 80 7 M6 6.0
CF4-220C
B 435 400 310 125 100 - 80
15x20 long
hole
M12 13.0
CF4-280C
B 435 400 350 165 100 - 80
15x20 long
hole
M12 15.0
CF4-315C
B 435 400 460 275 100 - 80
15x20 long
hole
M12 20.0
CF4-355C
B 435 400 520 335 100 - 80
15x20 long
hole
M12 23.0
CF4-400C
B 435 400 610 425 100 - 80
15x20 long
hole
M12 27.0
CF4-500C
B 435 400 310 125 100 - 80
15x20 long
hole
M12 13.0
400 V class
series
CF4-630C
B 435 400 460 275 100 - 80
15x20 long
hole
M12 20.0
