11.4 Option
11-42
<Filtering resistor>

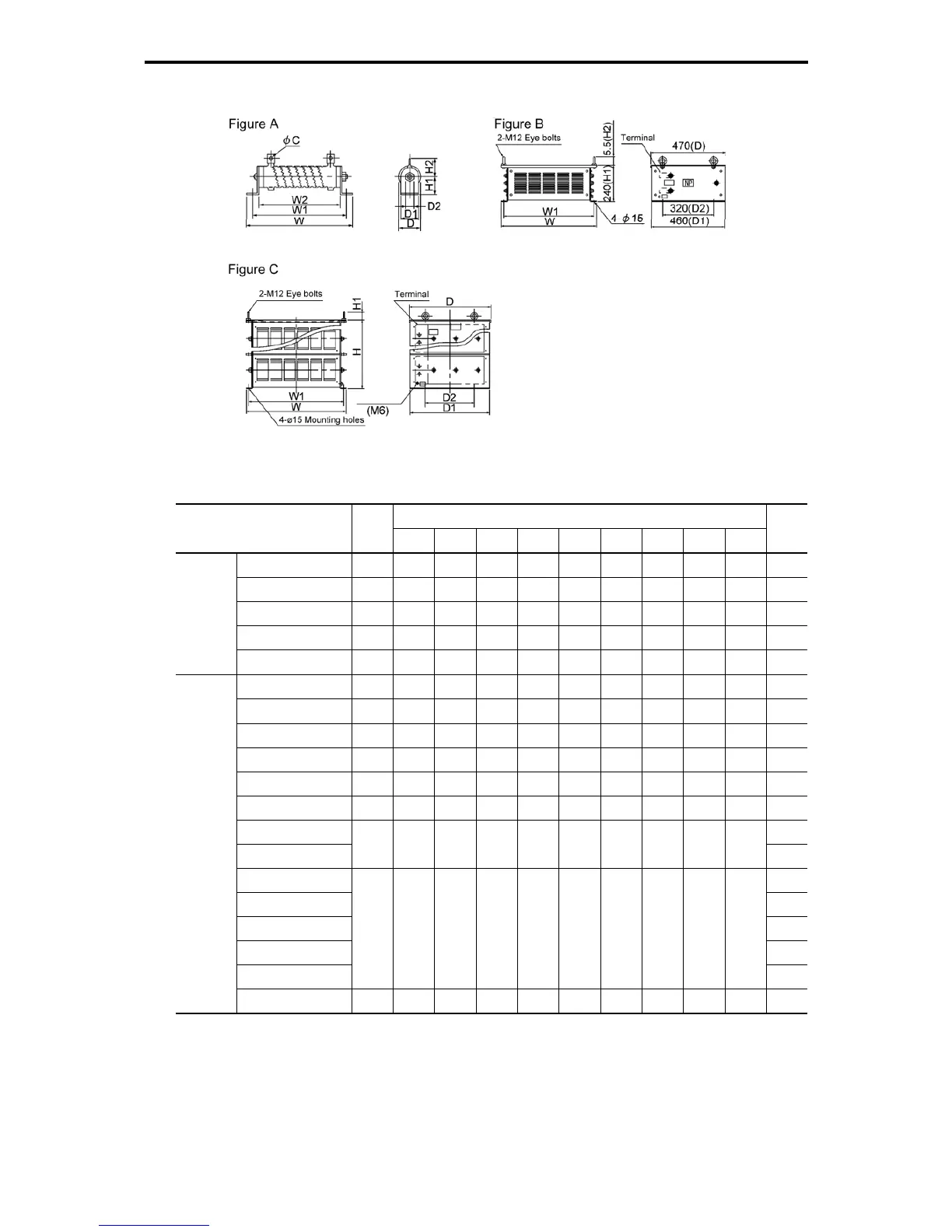

Figure 11.4-13
Table 11.4-15
Dimensions (mm)
Filtering resistor type Figure
W W1 W2 H1 H2 D D1 D2 C
Mass
(kg)
GRZG80 0.42 Ω
A 167 148 115 22 32 33 26 6 5.5 0.19
GRZG150 0.2 Ω
A 247 228 195 22 40 33 26 6 8.2 0.19
GRZG200 0.13 Ω
A 306 287 254 22 40 33 26 6 8.2 0.35
GRZG400 0.1 Ω
A 411 385 330 40 46 47 40 9.5 8.2 0.85
200 V
class
series
GRZG400 0.12 Ω
A 411 385 330 40 46 47 40 9.5 8.2 0.85
GRZG80 1.74 Ω
A 167 148 115 22 32 33 26 6 5.5 0.19
GRZG150 0.79 Ω
A 247 228 195 22 32 33 26 6 5.5 0.3
GRZG200 0.53 Ω
A 306 287 254 22 32 33 26 6 5.5 0.35
GRZG400 0.38 Ω
A 411 385 330 40 46 47 40 9.5 8.2 0.85
GRZG400 0.26 Ω
A 411 385 330 40 46 47 40 9.5 8.2 0.85
GRZG400 0.53 Ω
A 411 385 330 40 46 47 40 9.5 8.2 0.85
RF4-160C
22
RF4-220C
B 400 370 - 240 55 470 460 320 -
25
RF4-280C
31
RF4-315C
35
RF4-355C
36
RF4-400C
38
RF4-500C
C 655 625 - 240 55 470 460 320 -
41
400 V
class
series
RF4-630C
C 655 625 - 440 55 530 520 320 - 70
