11.4 Option
11-46

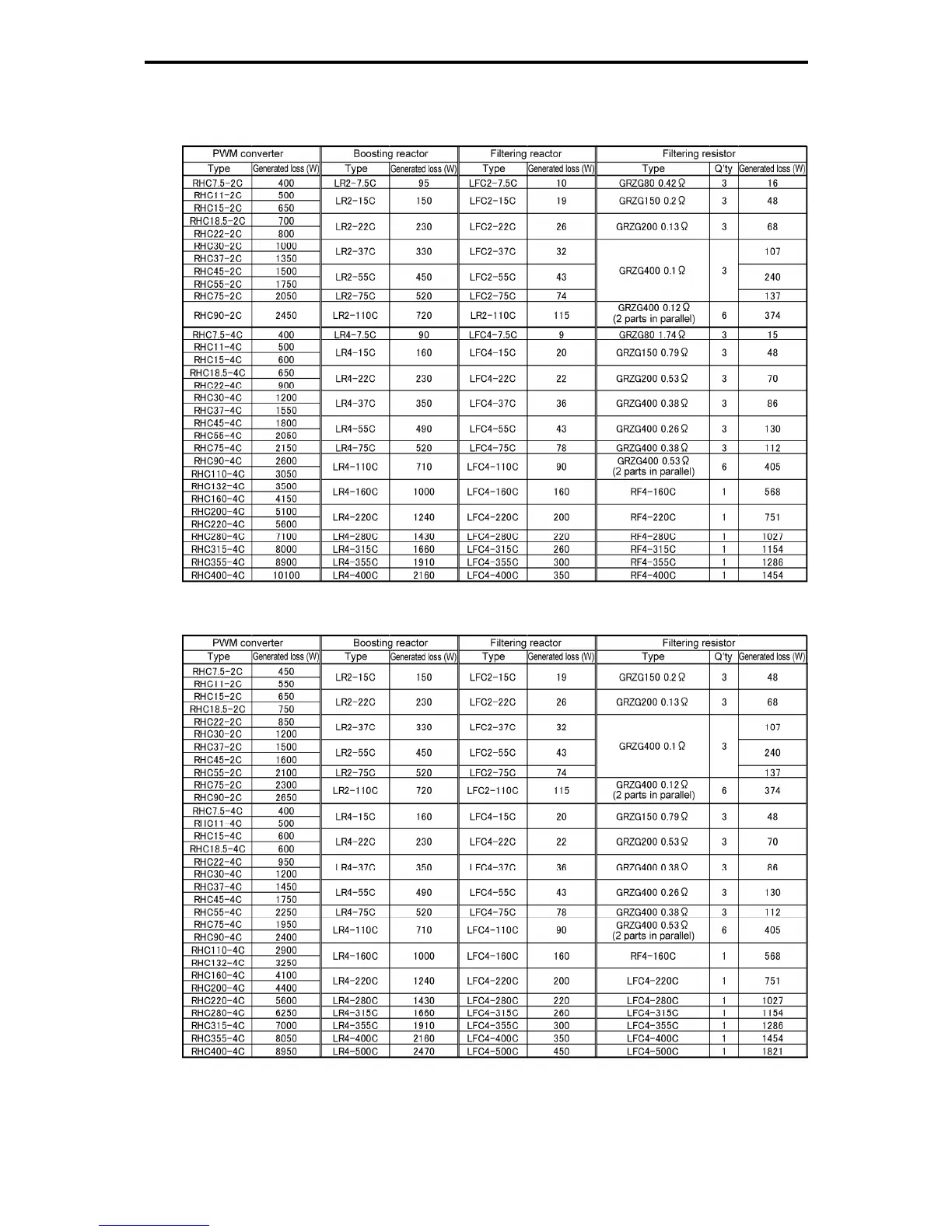

Generated loss
Generated loss in CT mode
Table 11.4-19
Generated loss in VT mode
Table 11.4-20
Note: Generated losses listed in the above table are approximate values that are calculated according
to the following conditions:
• The power supply is three-phase 200 V/400 V, 50 Hz with 0% interphase voltage unbalance ratio.
• The power supply capacity uses the larger value of either 500 kVA or 10 times the rated capacity
of the inverter.
• The motor is a 4-pole standard model at full load (100%).
