Chapter 11 SELECTING PERIPHERAL EQUIPMENT
<Fuse>

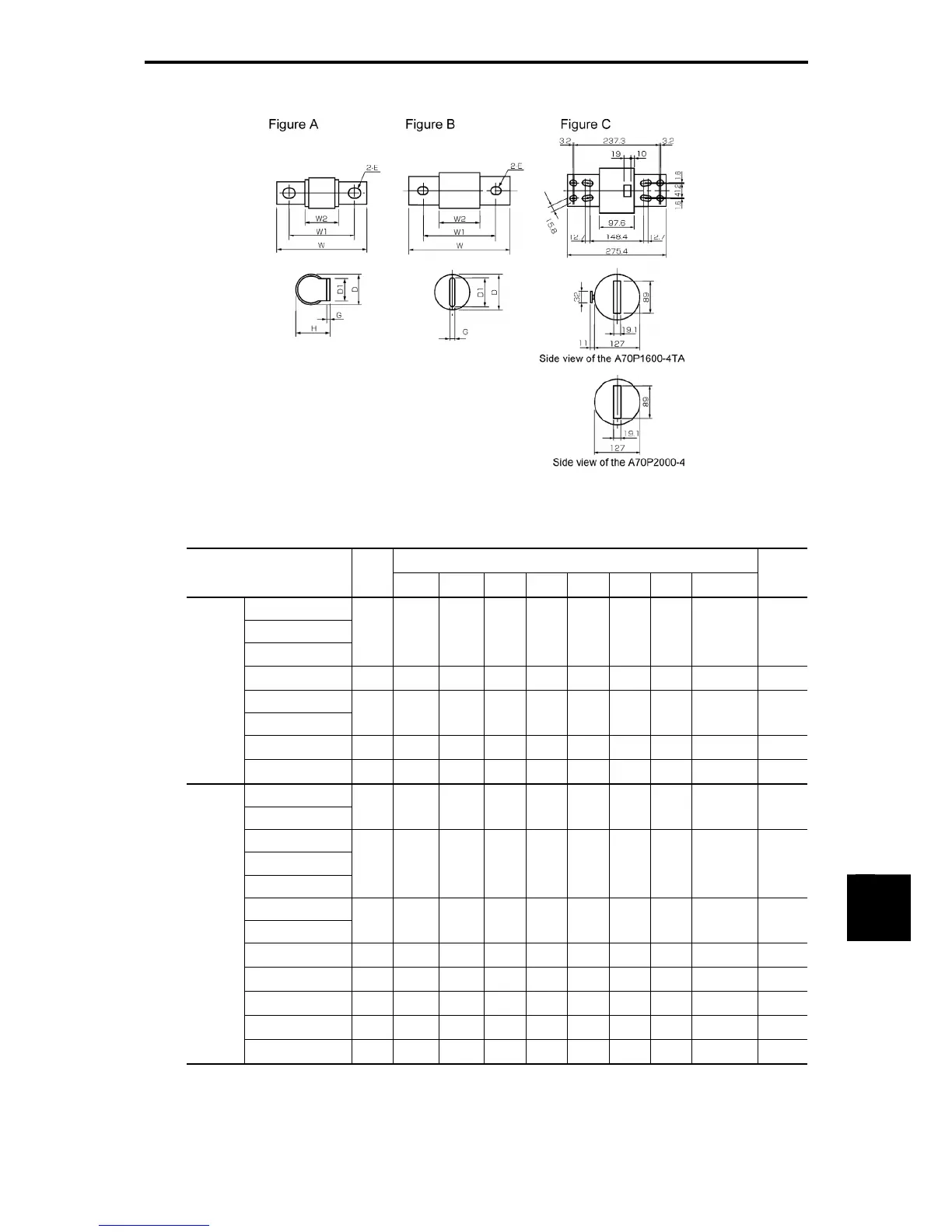

Figure 11.4-16
Table 11.4-18
Dimensions (mm)
Fuse type Figure
W W1 W2 H D D1 G E
Mass
(kg)
CR2LS-50/UL
CR2LS-75/UL
CR2LS-100/UL
A 56 42 26 18.5 17.5 12 2 6.5x8.5 0.03
CR2L-150/UL
A 80 58 29.5 30.5 27 20 3 9x11 0.10
CR2L-200/UL
CR2L-260/UL
A 85 60 30 33.5 30 25 3.2 11x13 0.13
CR2L-400/UL
A 95 70 31 42 37 30 4 11x13 0.22
200 V
class
series
A50P600-4
B 113.5 81.75 56.4 - 50.8 38.1 6.4 10.3x18.2 0.60
CR6L-30/UL
CR6L-50/UL
A 76 62 47 18.5 17.5 12 2 6.5x8.5 0.04
CR6L-75/UL
CR6L-100/UL
CR6L-150/UL
A 95 70 40 34 30 25 3.2 11x13 0.15
CR6L-200/UL
CR6L-300/UL
A 107 82 43 42 37 30 4 11x13 0.25
A50P400-4
B 110 78.6 53.1 - 38.1 25.4 6.4 10.3x18.4 0.30
A50P600-4
B 113.5 81.75 56.4 - 50.8 38.1 6.4 10.3x18.2 0.60
A70QS800-4
B 180.2 129.4 72.2 - 63.5 50.8 9.5 13.5x18.3 1.1
A70P1600-4T
C - - - - - - - - 8.0
400 V
class
series
A70P2000-4
C - - - - - - - - 8.0
