Fuji Electric Frenic Mega Series - Page 579

11.4 Option
11-44
<Charging resistor>

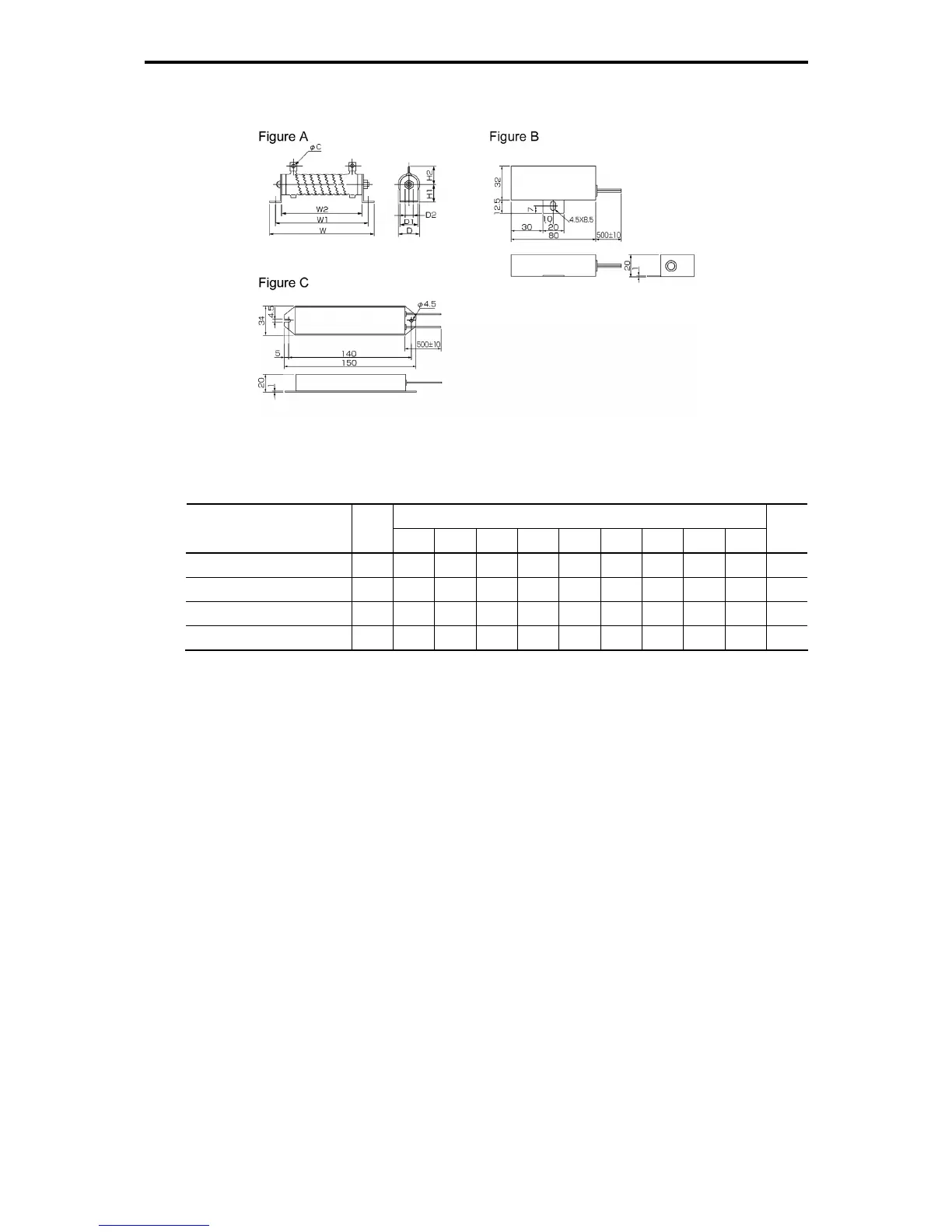

Figure 11.4-15
Table 11.4-17
Dimensions (mm)
Charging resistor type Figure
W W1 W2 H1 H2 D D1 D2 C
Mass
(kg)
GRZG120 2 Ω
A 217 198 165 22 32 33 22 6 5.5 0.25
GRZG400 1 Ω
A 411 385 330 40 39 47 40 9.5 5.5 0.85
TK50B 30 ΩJ (HF5B0416)
B - - - - - - - - - 0.15
80W 7.5 Ω (HF5C5504)
C - - - - - - - - - 0.19
