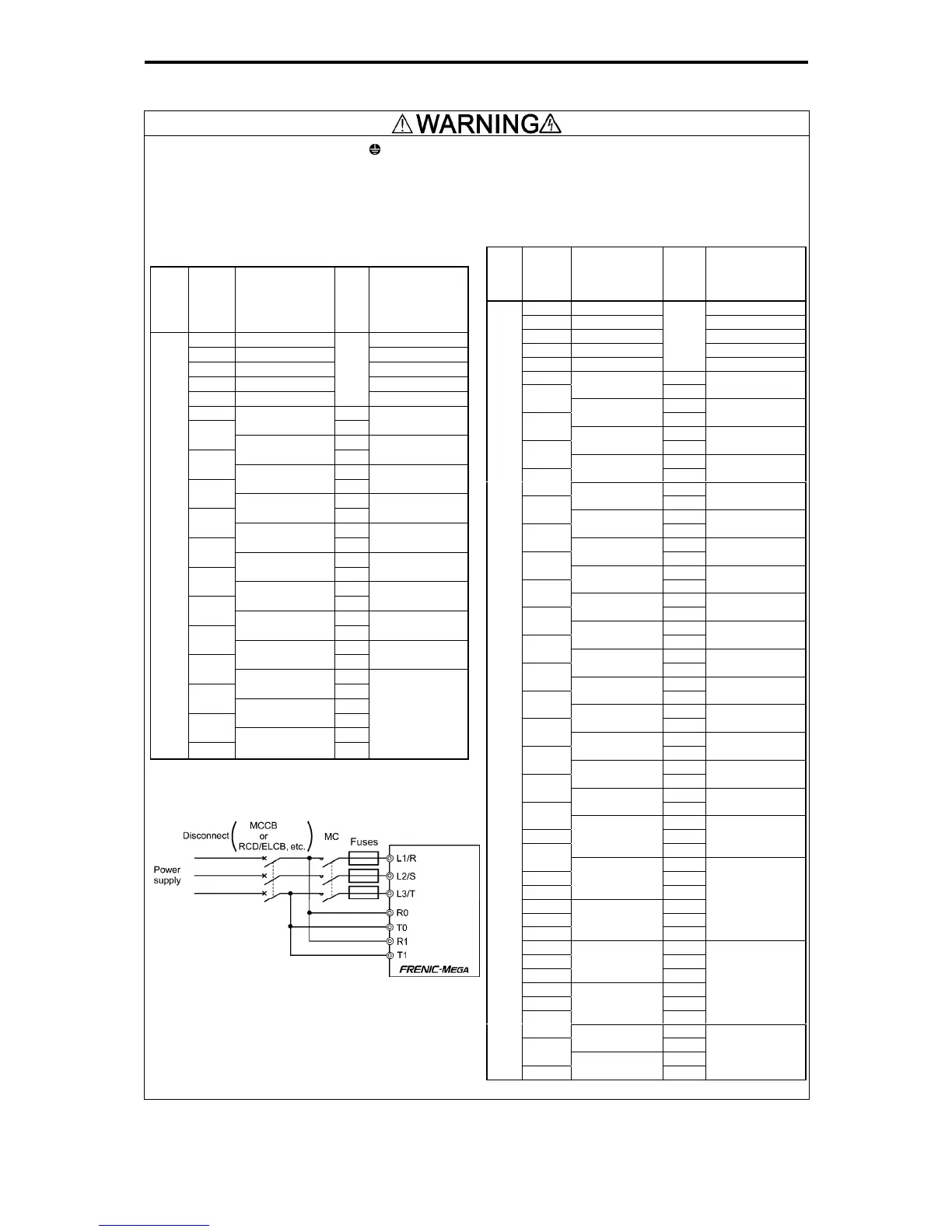

13.5 Conformity with Low Voltage Directive in Europe
13-12
Conformity with low voltage directive in Europe
1. Always ground the ground terminals G. Do not use only a residual-current-operated protective device (RCD)/earth
leakage circuit breaker (ELCB)
*
as the sole method of electric shock protection. Use a wire the size of a power wire or
larger for the ground lines.
*
With overcurrent protection
2. To protect your power systems from a danger of high voltage or accidents caused by the broken inverter, install fuses
according to the specifications listed in the table below, on the power supply side.
• Breaking capacity: Min. 10 kA; Rated voltage: Min. 500 V
Power
supply
voltage
Nominal
applied
motor
(kW)
Inverter type
HD/LD
mode
Fuse rating
(A)
0.4 FRN0.4G1-2J
10(IEC60269-2)
0.75 FRN0.75G1-2J
15(IEC60269-2)
1.5 FRN1.5G1-2J
20(IEC60269-2)
2.2 FRN2.2G1-2J
30(IEC60269-2)
3.7 FRN3.7G1-2J
HD
40(IEC60269-2)
5.5 HD
FRN5.5G1-2J
LD
125(IEC60269-4)
7.5
HD
FRN7.5G1-2J
LD
160(IEC60269-4)
11
HD
FRN11G1-2J
LD
160(IEC60269-4)
15
HD
FRN15G1-2
LD
200(IEC60269-4)
18.5
HD
FRN18.5G1-2
LD
250(IEC60269-4)
22
HD
FRN22G1-2J
LD
250(IEC60269-4)
30
HD
FRN30G1-2J
LD
350(IEC60269-4)
37
HD
FRN37G1-2J
LD
400(IEC60269-4)
45
HD
FRN45G1-2J
LD
450(IEC60269-4)
55
HD
FRN55G1-2J
LD
75
HD
FRN75G1-2J
LD
90
HD
Three-
phase
200V
110
FRN90G1-2J
LD
500(IEC60269-4)
(Note) A box () in the above table replaces an
alphabetic letter depending on the type.
Power
supply
voltage
Nominal
applied
motor
(kW)
Inverter type
HD/MD/
LD mode
Fuse rating
(A)
0.4 FRN0.4G1-4J 3(IEC60269-2)
0.75 FRN0.75G-4J 6(IEC60269-2)
1.5 FRN1.5G1-4J 10(IEC60269-2)
2.2 FRN2.2G1-4J 15(IEC60269-2)
3.7 FRN3.7G1-4J
HD
20(IEC60269-2)
5.5 HD
FRN5.5G1-4J
LD
80(IEC60269-4)
7.5
HD
FRN7.5G1-4J
LD
80(IEC60269-4)
11
HD
FRN11G1-4J
LD
125(IEC60269-4)
15
HD
FRN15G1-4J
LD
125(IEC60269-4)
18.5
HD
FRN18.5G-4J
LD
160(IEC60269-4)
22
HD
FRN22G1-4J
LD
160(IEC60269-4)
30
HD
FRN30G1-4J
LD
250(IEC60269-4)
37
HD
FRN37G1-4J
LD
315(IEC60269-4)
45
HD
FRN45G1-4J
LD
315(IEC60269-4)
55
HD
FRN55G1-4J
LD
350(IEC60269-4)
75
HD
FRN75G1-4J
LD
350(IEC60269-4)
90
HD
FRN90G1-4J
MD/LD
350(IEC60269-4)
110
HD
FRN110G-4J
MD/LD
400(IEC60269-4)
132
HD
FRN132G-4J
MD/LD
450(IEC60269-4)
160
HD
FRN160G-4J
MD/LD
500(IEC60269-4)
200
HD
FRN200G-4J
MD/LD
550(IEC60269-4)
220
HD
250 MD
FRN220G-4J
LD
630(IEC60269-4)
280
HD
315 MD
355
FRN280G-4J
LD
315 HD
355 MD
400
FRN315G-4J
LD
900(IEC60269-4)
355 HD
400 MD
450
FRN355G-4J
LD
400 HD
450 MD
FRN400G-4J
LD
1250
(IEC60269-4)
500
HD
FRN500G-4J
LD
630
HD
Three-
phase
400 V
710
FRN630G-4J
LD
2000
(IEC60269-4)
(To be continued)
