System Controls
29
Trays 3 & 4
At the base of the machine, the following optional trays will be available, depending on
the configuration.
• Two Tray Module – Can be added to the standard 2-tray configuration. Each tray
can hold 500 sheets of 80 g/m
2
paper.
• Tandem Tray Module – Can be added to the standard 2-tray configuration to provide
high volume paper sources. Tray 3 can hold a maximum of 800 sheets of 80 g/m
2
paper in A4 or Letter size, long edge feed. Tray 4 can hold 1,200 sheets of 80 g/m
2
paper in A4 or Letter size. The Tandem Tray Module is referred to as “TTM” in this
manual.
System Controls

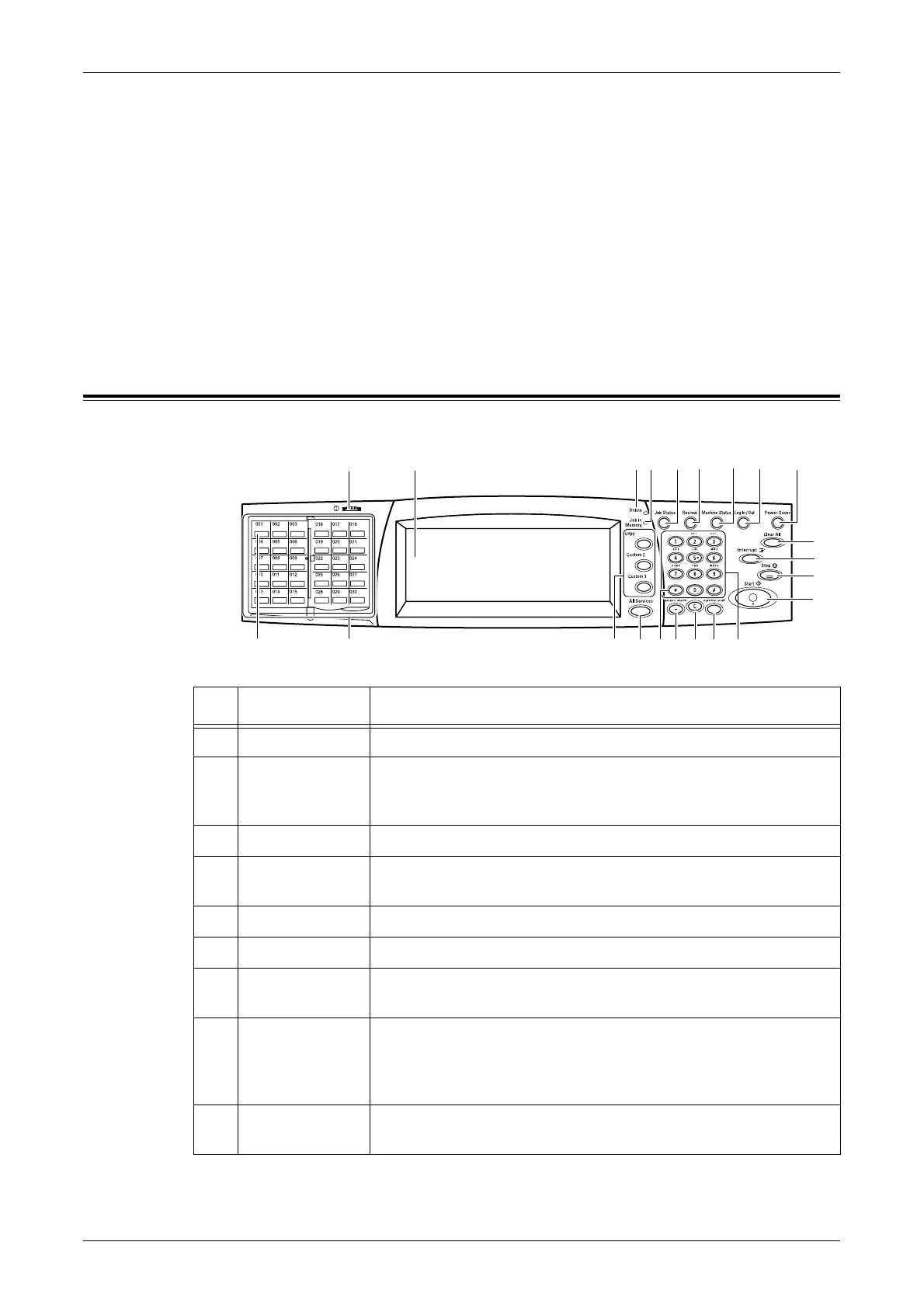

The following shows the names and functions of the components on the control panel.
Component Function
1 Brightness dial Adjusts the brightness level of the touch screen.
2 Touch screen Displays buttons for the features and messages for machine
operations. Touch the screen to operate the machine and enter
information.
3 <Online> light Indicates the machine is receiving or sending a document.
4<Job in Memory>
light
Indicates the machine is holding jobs and documents in its
memory.
5 <Job Status> Displays the status of jobs queued and processed in the machine.
6 <Review> Displays settings for the machine features and services.
7 <Machine
Status>
Displays the status of the machine.
8 <Log In/Out> Displays the log-in screen to enter the [System Administrator
Menu] screen, or when the Authentication feature is enabled. Also,
if you press this button to display the log-in screen when you are
already logged in, you will be logged out of the machine.
(green light)
Indicates whether the machine is in power saver mode. Also
cancels the Low Power Mode or Sleep Mode.
1 2 4 7 8 9
10
11
5 63
12
13
1416 1517
18
20
192122
