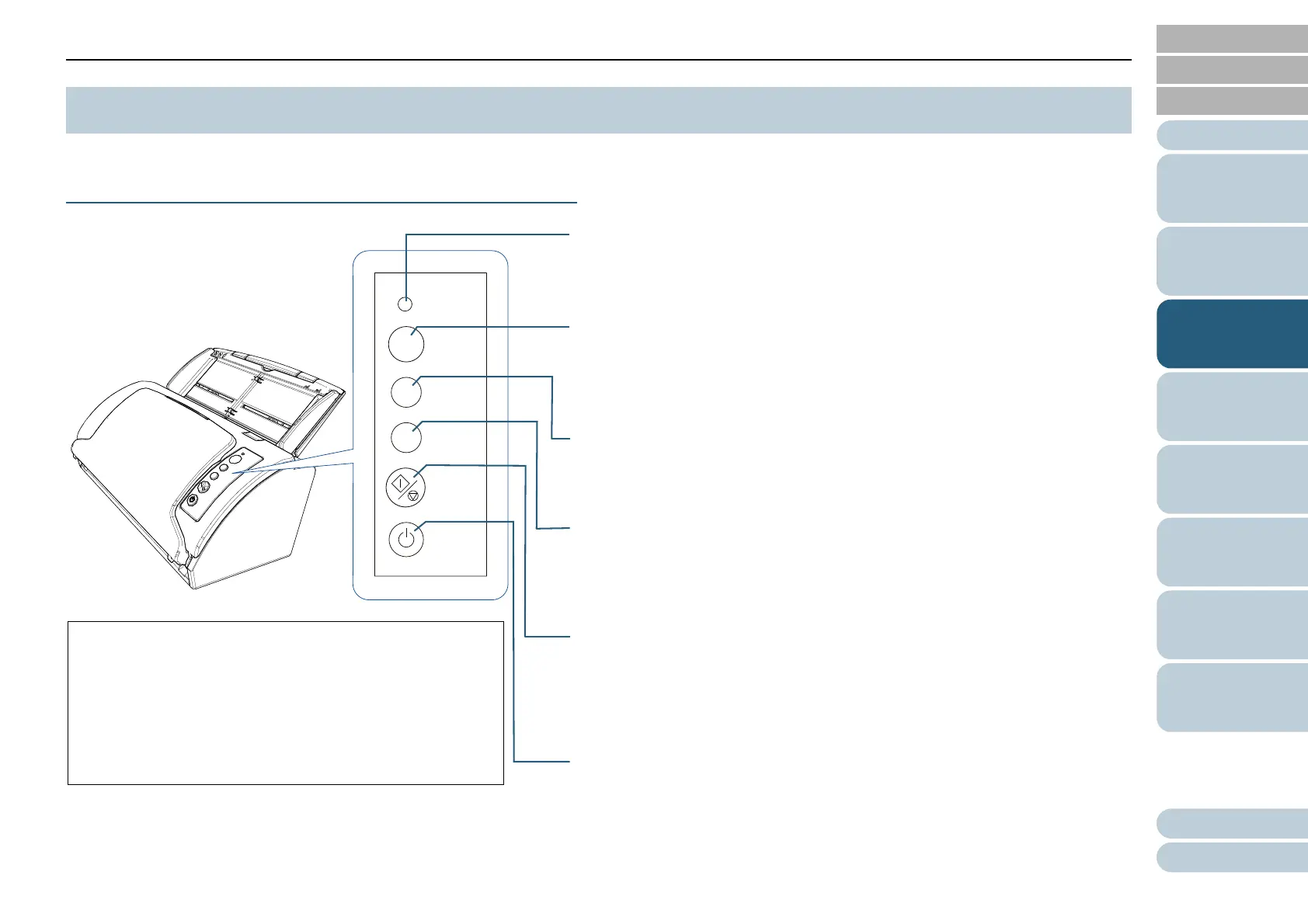

The operator panel consists of a Function Number Display, buttons and LED indicator.
Names and Functions
3.1 Operator Panel
&KHFN
)XQFWLRQ
6HQGWR
6FDQ
6WRS
3RZHU
LED Indicator
Lights in orange when an error occurs.
Flashes when the ADF is open.
Function Number Display
Indicates the status of the scanner.
Switches off when the scanner enters power saving mode.
[Send to] Button (*1) (*2)
Launches the linked application software.
Clears the displayed error indication.
Pauses the scan.
[Scan/Stop] Button (*1)
Launches the linked application software.
Clears the displayed error indication.
Cancels the scan while scanning by pressing this button.
Resumes the scan.
[Power] Button
Turns the power on/off.
Lights in green when the scanner is turned on.
[Function] Button
Switches the number (from 1 to 9/C) for the application that is launched when the
[Send to] button is pressed.
*1: For details about the setup method for a scan using the
[Scan/Stop] button or the [Send to] button, refer to the
scanner driver's Help or "Using a Button on the
Scanner to Start Scanning" (page 57).
*2: Pressing the [Send to] button when scanning a
document, pauses the scanning process, after the
document is scanned.
