The Roller Set consists of the brake roller and the pick roller.
Replace each roller in the following procedure.
1 Turn off the scanner and wait for at least 15 minutes.
For details, refer to "1.3 Turning the Power ON/OFF" (page 19).
2 Unplug the power cable.
3 Remove all documents from the ADF paper chute
(feeder).
4 Open the ADF.
For details, refer to "1.4 Opening/Closing the ADF" (page 21).
5 Replace the brake roller.
1 Open the cover.

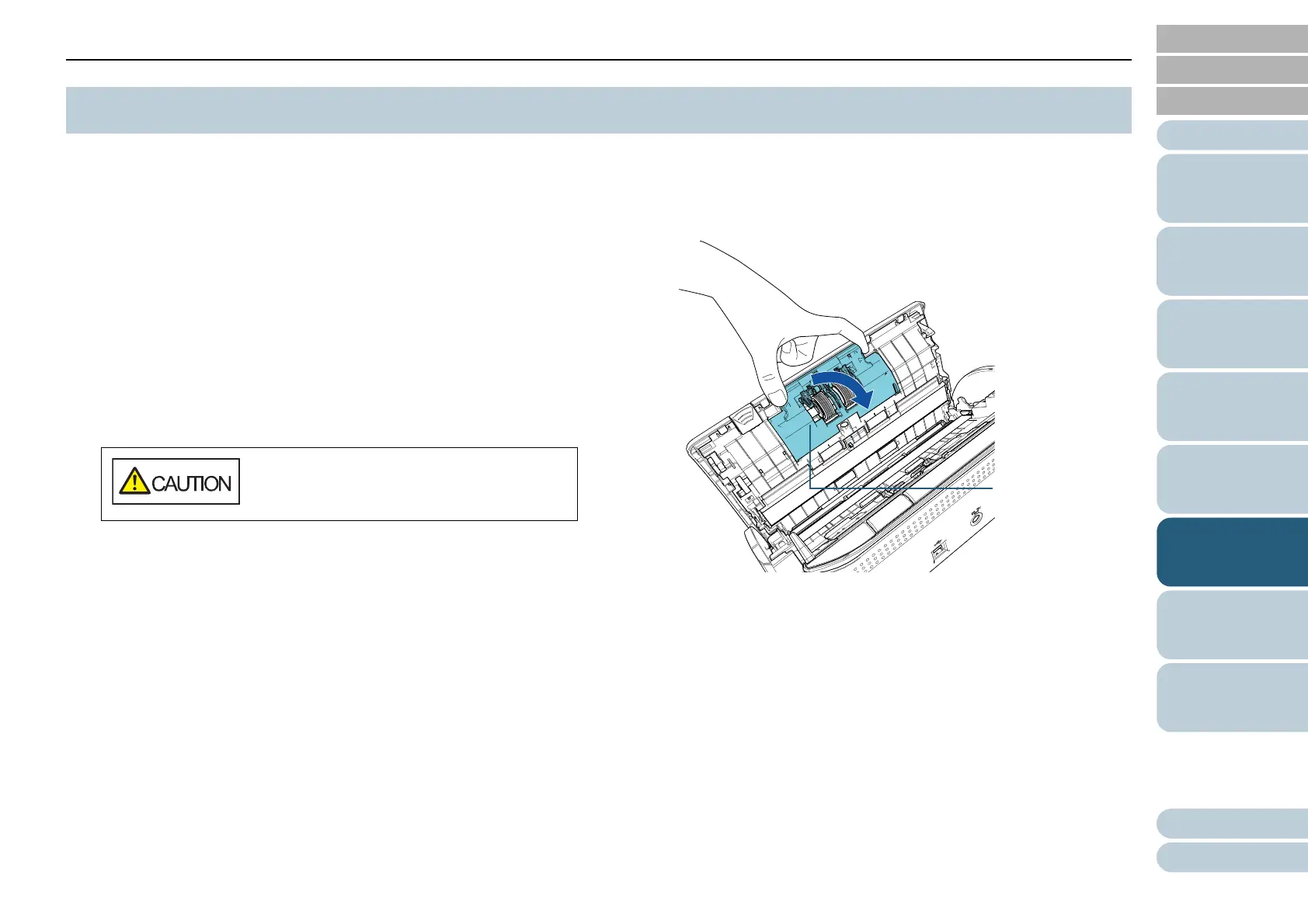

Hold both ends of the cover, and open it in the direction of the
arrow.
6.2 Replacing the Roller Set
When the ADF is open, it might close
accidentally. Be careful not to get your fingers
caught.
