3 Adjust the level of offset/vertical magnification as needed.

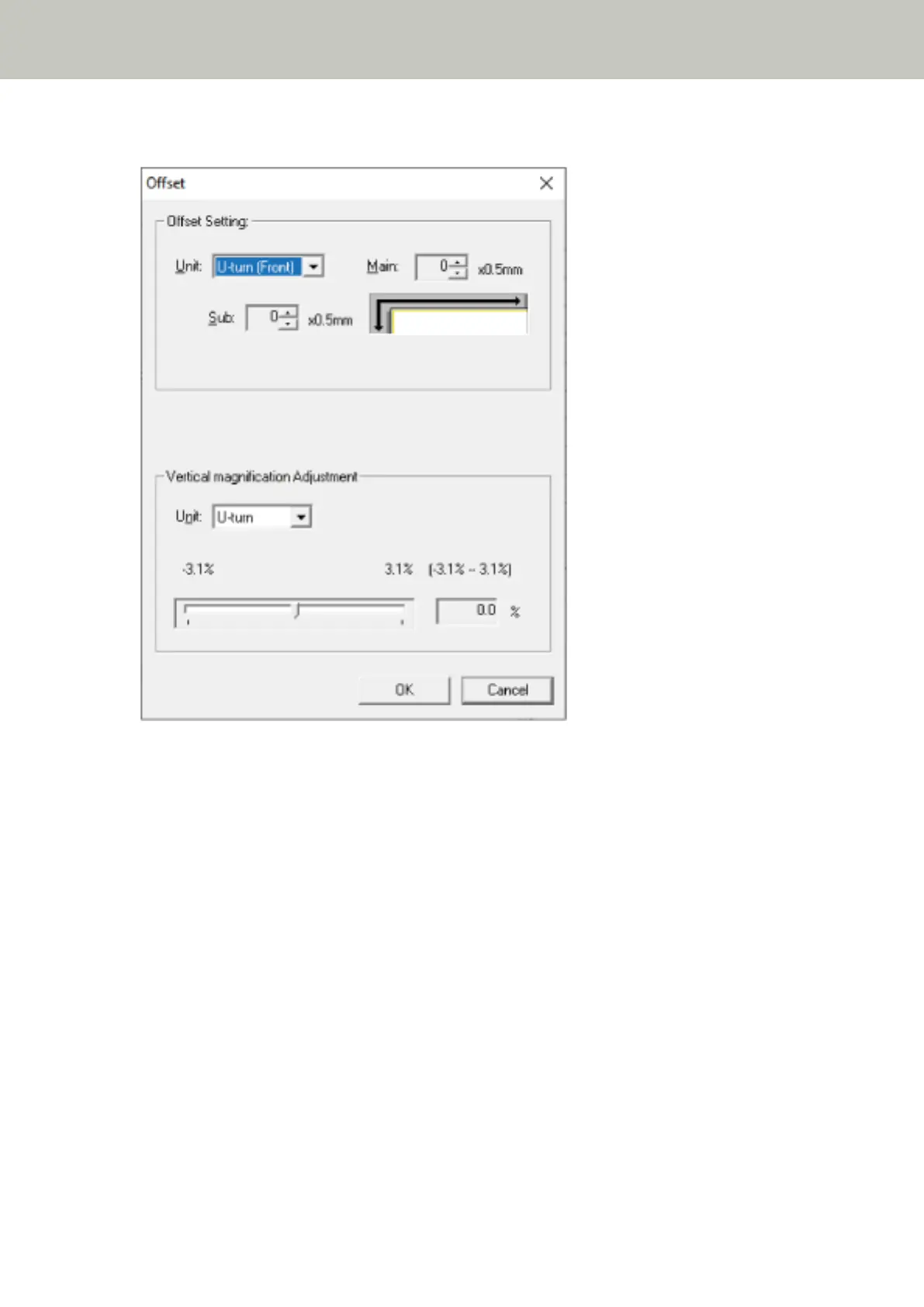

Offset Setting
Unit
Select a unit for an offset adjustment.
The factory default setting is [U-turn (Front)].
Main
Specify the horizontal (width) offset.
The specified value can range from -2 to +2 mm (in increments of 0.5).
The factory default setting is "0".
Sub
Specify the vertical (length) offset.
The specified value can range from -2 to +2 mm (in increments of 0.5).
The factory default setting is "0".
Scanner Settings (Software Operation Panel)
169

Fujitsu FI-800R Specifications

General

Scanner Type	Document Scanner
Optical Resolution	600 dpi
ADF Capacity	20 sheets
Daily Duty Cycle	4, 500 sheets
Supported Operating Systems	Windows, macOS
Color Depth	24-bit
Document Feeder Capacity	20 sheets
Document Size	A4, A5, A6, B5, B6, Legal, Letter
Scan Speed (A4, 200 dpi)	40 ppm / 80 ipm
Maximum Document Size	216 mm x 356 mm
Scanning Speed	Simplex: 40 ppm (color, 200/300 dpi) Duplex: 80 ipm (color, 200/300 dpi)
