Fujitsu FI-800R User Manual

Settings Related to the Detection for Overlapped Documents (Multifeed)
Specifying a Method to Detect Overlapped Documents [Multifeed]
Multifeed is an error that occurs when two or more sheets are overlapped and fed at once.
For documents that are loaded in the ADF paper chute (feeder), configure the settings to detect overlapped
documents during a scan.
Overlapped documents are detected with the ultrasonic sensor or according to the difference in length of the
documents.
When overlapped documents are detected, an error message is displayed and the scan stops. If documents are
overlapped within 30 mm from the leading edge, they are not detected as overlapped.
1 Start up the Software Operation Panel.
For details, refer to Starting Up the Software Operation Panel (page 144).

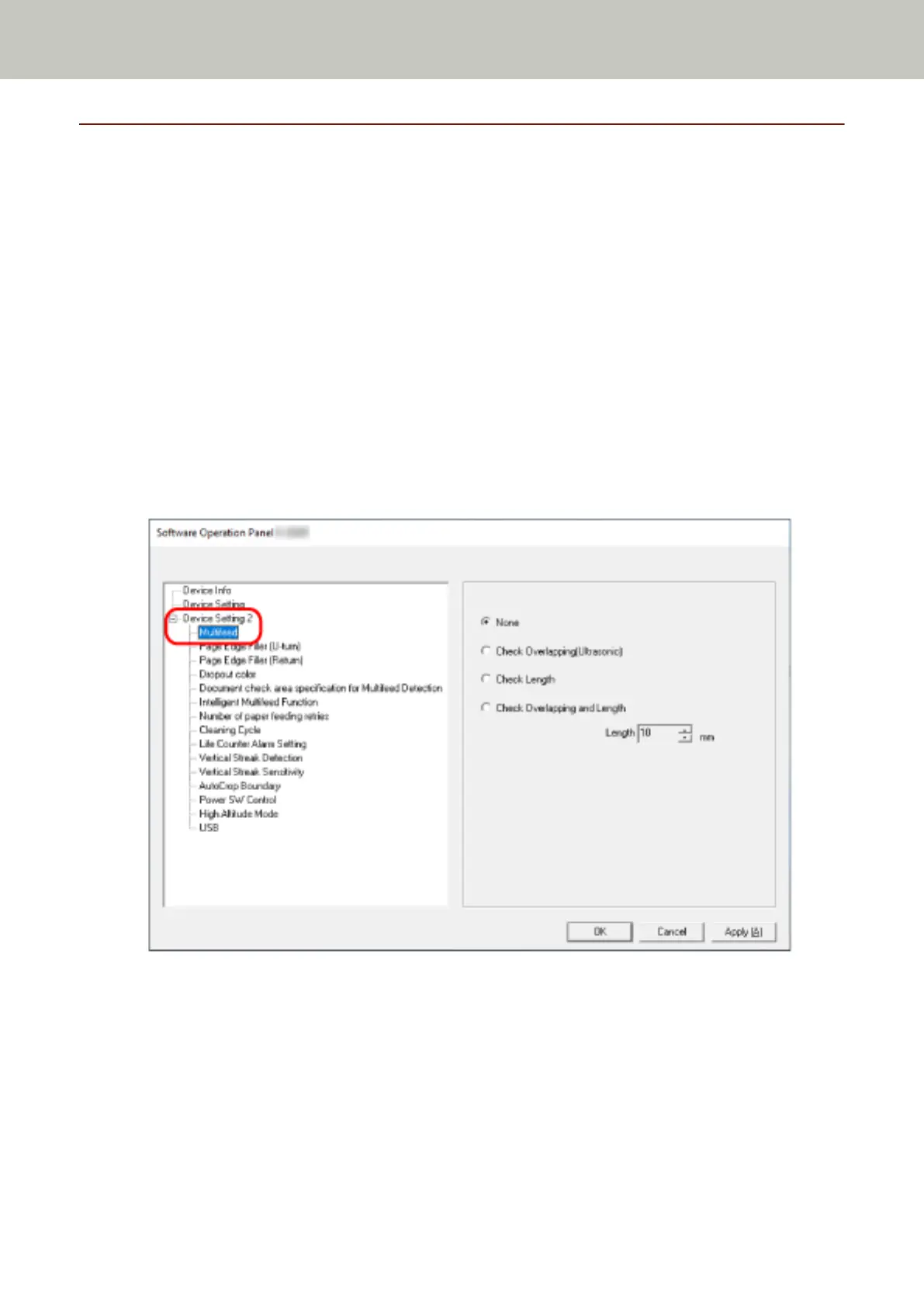

2 From the list on the left, select [Device Setting 2] → [Multifeed].
3 Select a detection method.
None
Does not detect overlapped documents.
This is the factory default setting.
Check Overlapping(Ultrasonic)
Detects overlapped documents with the ultrasonic sensor.
Scanner Settings (Software Operation Panel)
182

Fujitsu FI-800R Specifications

General

Scanner Type	Document Scanner
Optical Resolution	600 dpi
ADF Capacity	20 sheets
Daily Duty Cycle	4, 500 sheets
Supported Operating Systems	Windows, macOS
Color Depth	24-bit
Document Feeder Capacity	20 sheets
Document Size	A4, A5, A6, B5, B6, Legal, Letter
Scan Speed (A4, 200 dpi)	40 ppm / 80 ipm
Maximum Document Size	216 mm x 356 mm
Scanning Speed	Simplex: 40 ppm (color, 200/300 dpi) Duplex: 80 ipm (color, 200/300 dpi)
