Replacing the Pick Roller
Replace the pick roller in following procedure.
1 Turn off the scanner, unplug the power cable and wait for at least 15 minutes.
For details, refer to How to Turn the Power OFF (page 29).
2 Open the ADF paper chute (feeder).

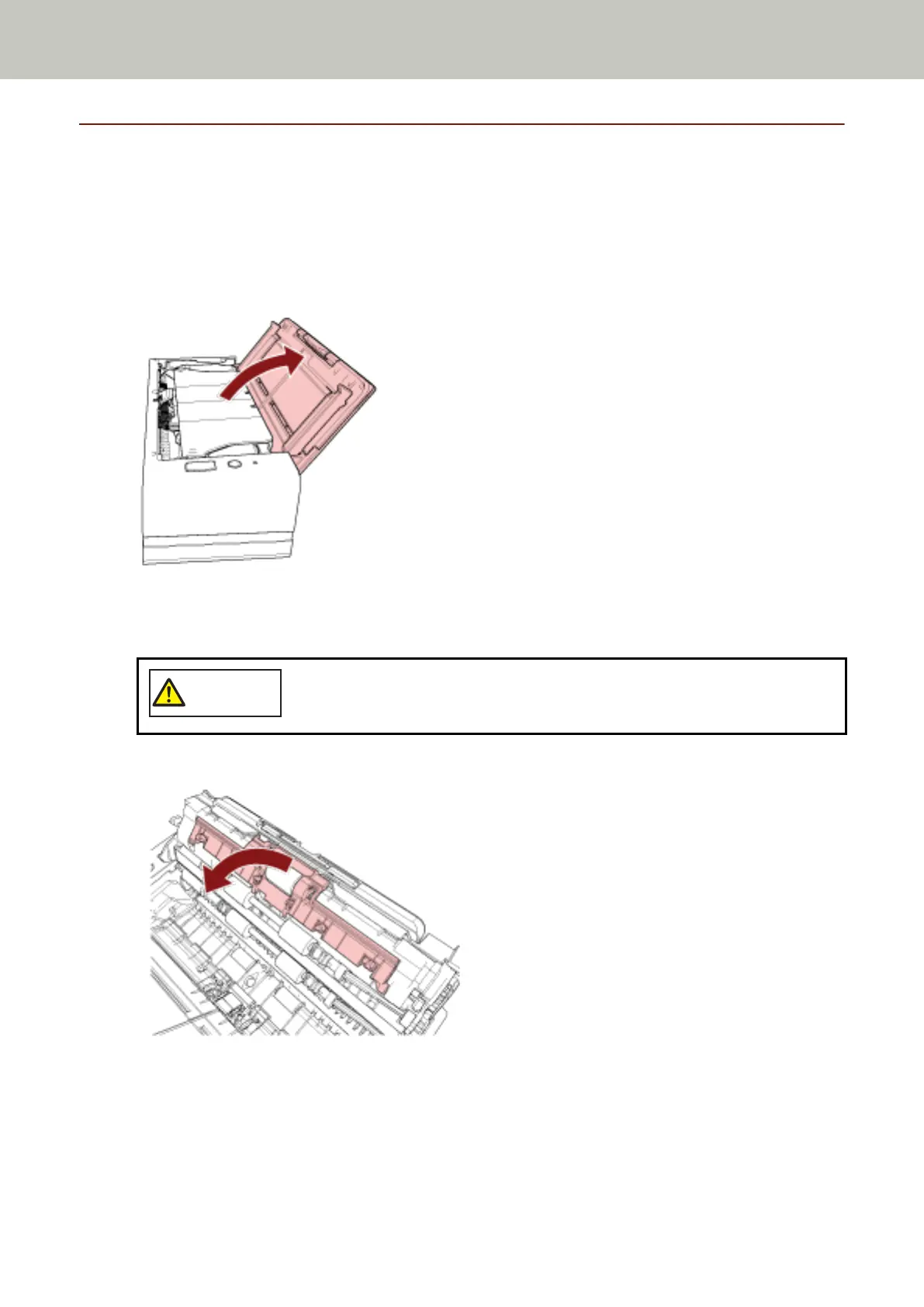

3 Open the ADF.
For details, refer to How to Open the ADF (page 32).
When the ADF is open, it might close accidentally. Be careful not to get your fingers
caught.
4 Open the sheet guide.
5 Remove the pick roller.
Replacing the Consumables
99
To Next Page
