TX100 S3
Upgrade and Maintenance Manual
193
Expansion cards and backu
p units
Figure 1
1
1:
Network adapter

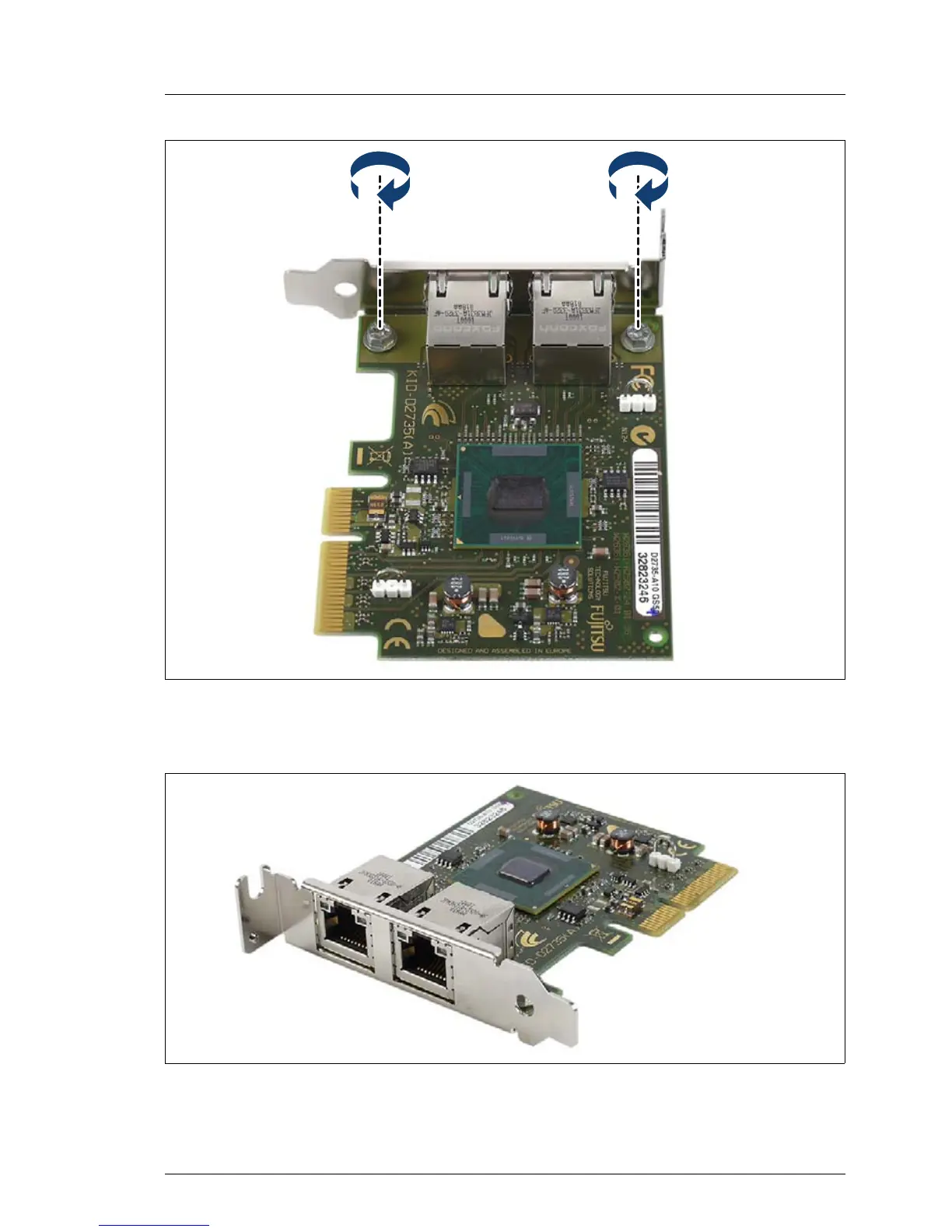

D2735 - Mount
ing the slot bracket
(B)
Ê
Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 1
12: Network adap
ter D2735
- Mounting the slot
bracket (C
)
I
Assembled network adapter D2735
192
194
